P2243

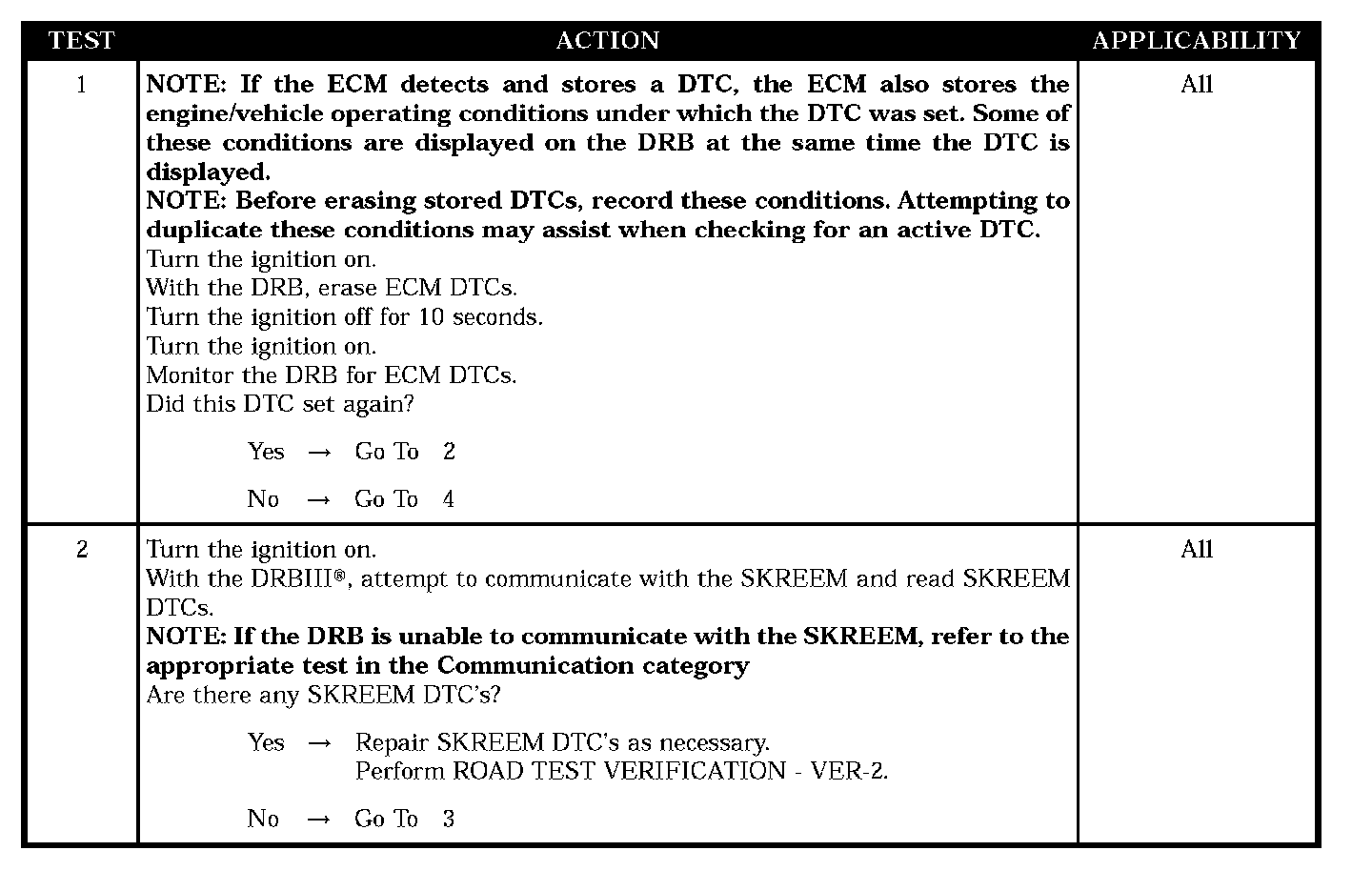

Test 1 - 2:

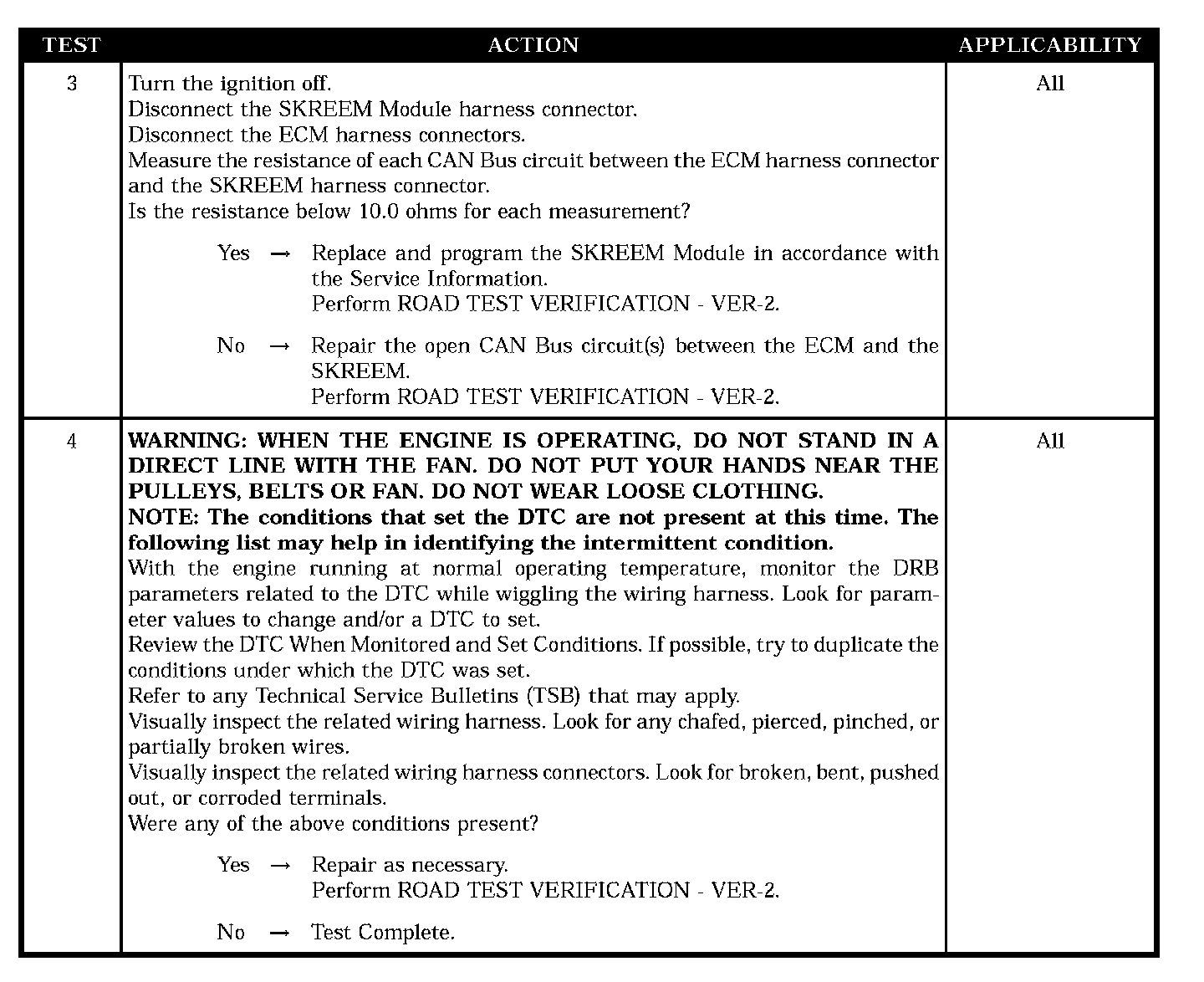

Test 3 - 4:

SYMPTOM
P2243 - No Message Received From SKREEM

TEST NOTE
This symptom is diagnosed using the test P1630 - IMMOBILIZER.

POSSIBLE CAUSES
- Checking SKREEM DTC's
- Open can bus circuits
- SKREEM module
- Intermittent condition
