Fuel Quantity Solenoid Open Circuit

Test 1:

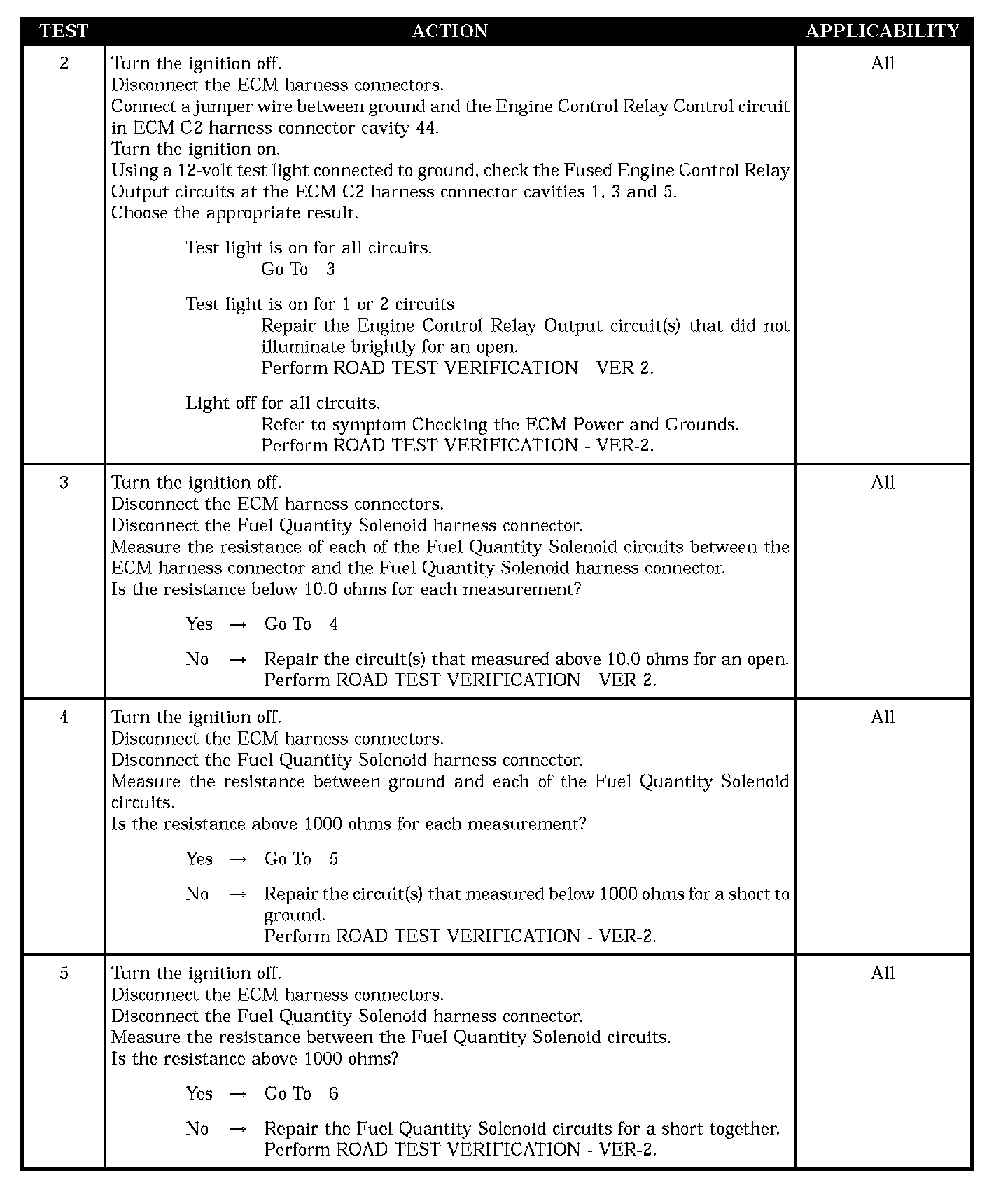

Test 2 - 5:

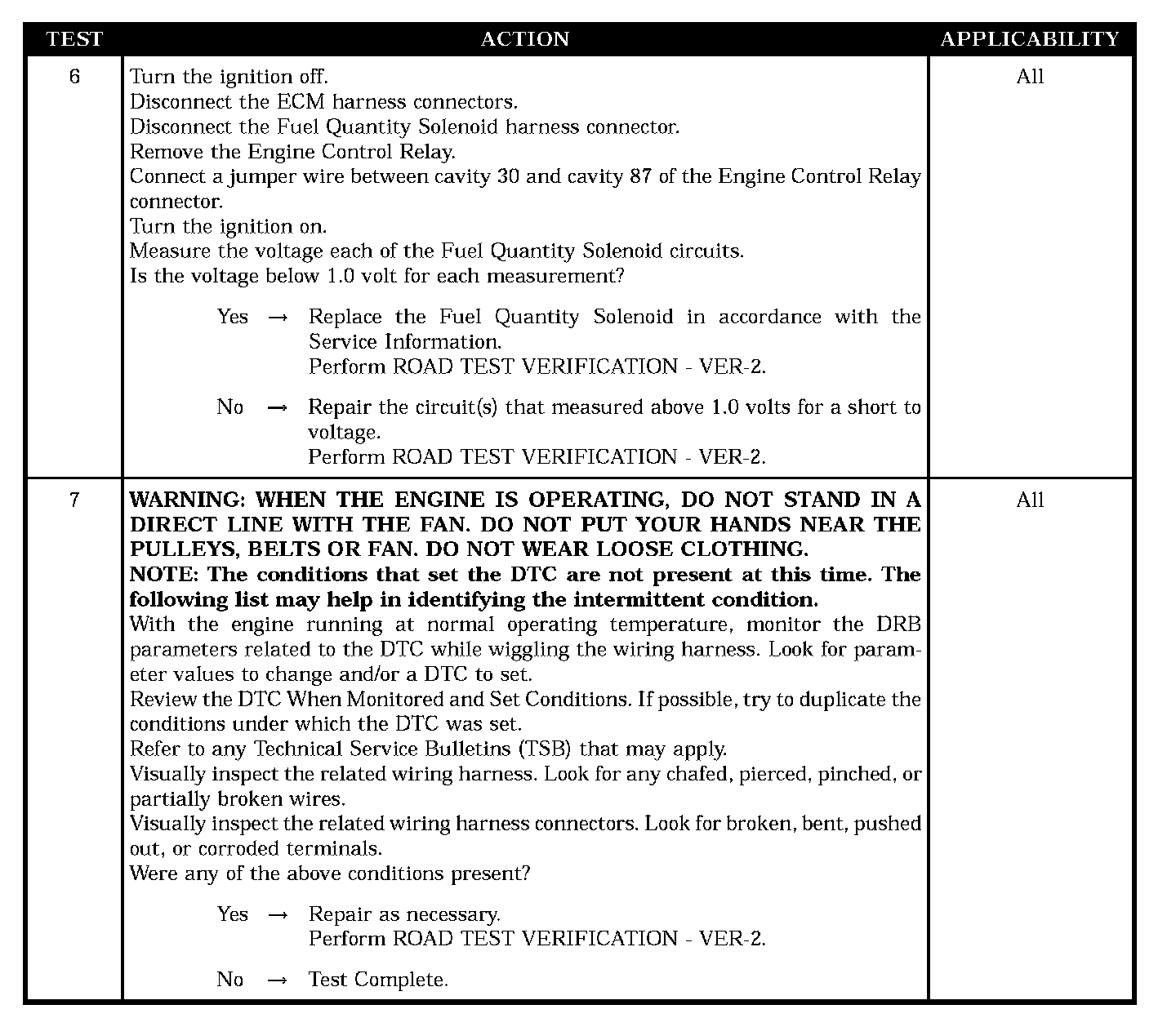

Test 6 - 7:

SYMPTOM
P2197 - FUEL QUANTITY SOLENOID OPEN CIRCUIT

POSSIBLE CAUSES
- Checking ECM power and grounds
- Checking the engine control relay system
- Fuel quantity solenoid
- Fuel quantity solenoid circuit(s) shorted to ground
- Fuel quantity solenoid circuit(s) shorted to voltage
- Fuel quantity solenoid circuit(s) shorted together
- Fuel quantity solenoid open circuit(s)
- Intermittent condition
