Glow Plug Control Module Circuit Shorted to Ground

Test 1 - 2:

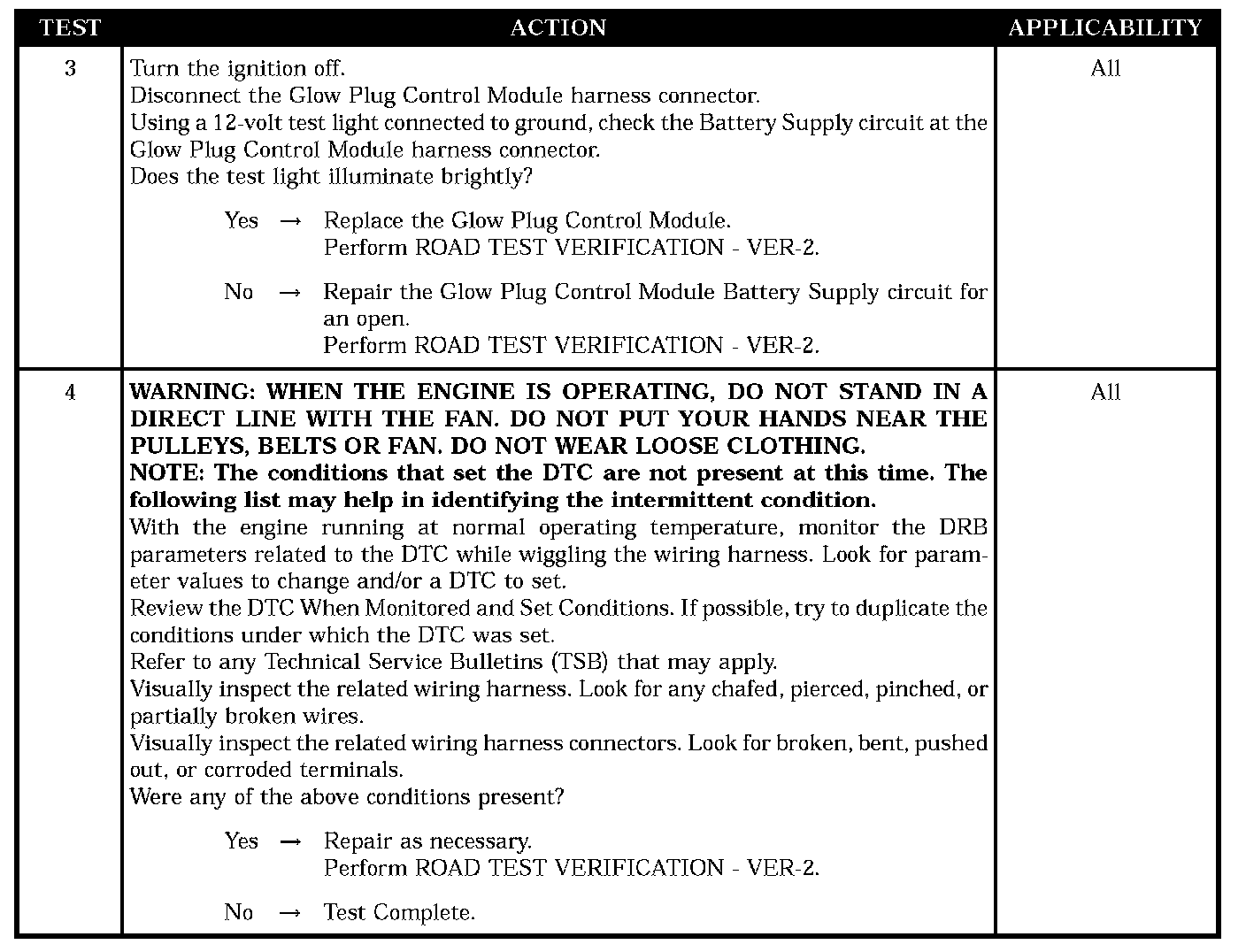

Test 3 - 4:






SYMPTOM
P2132 - GLOW PLUG CONTROL MODULE CIRCUIT SHORTED TO GROUND

POSSIBLE CAUSES
- Battery supply circuit open
- Ground circuit open
- Intermittent condition
- Glow plug control module
