P1681

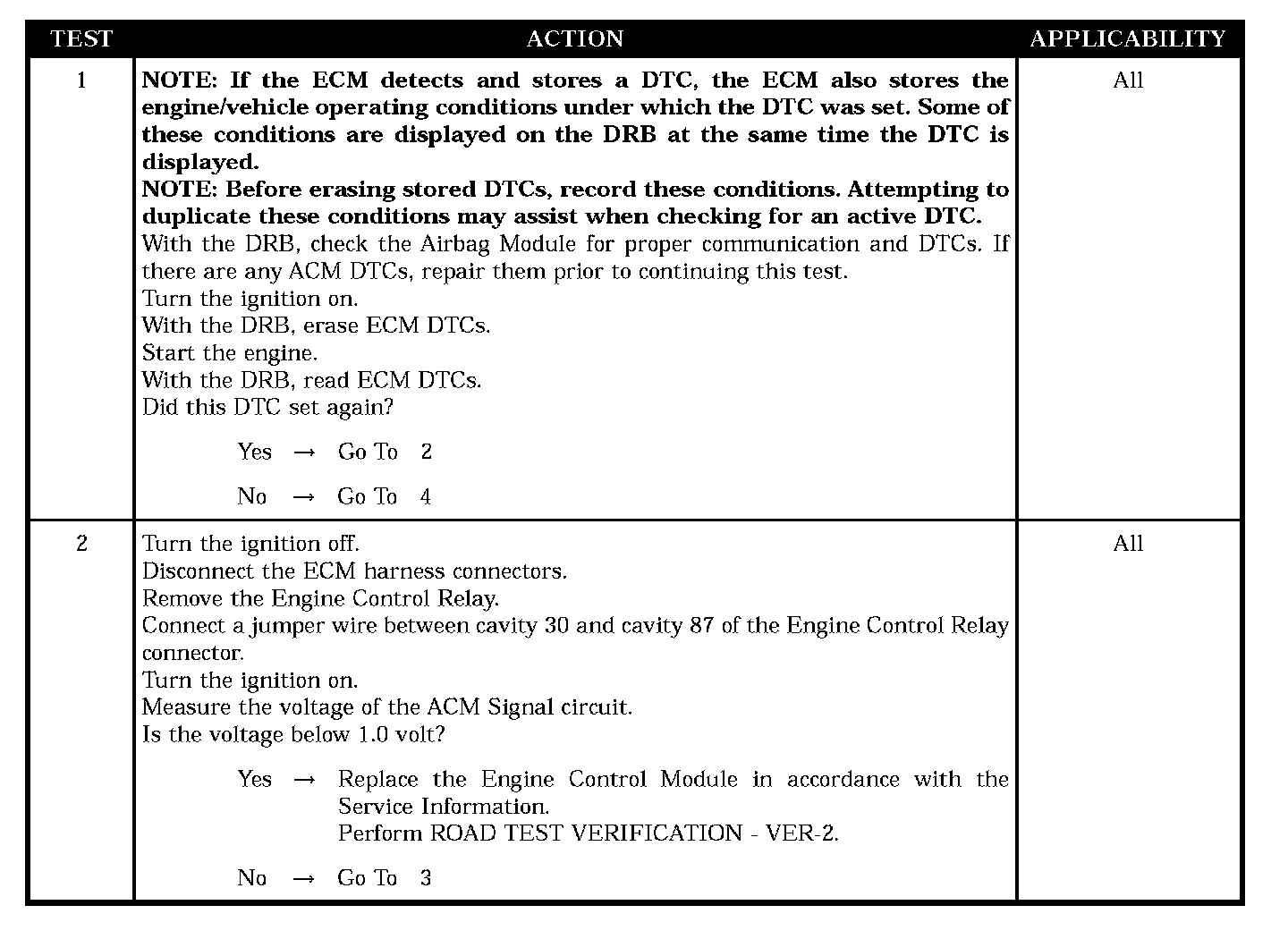

Test 1 - 2:

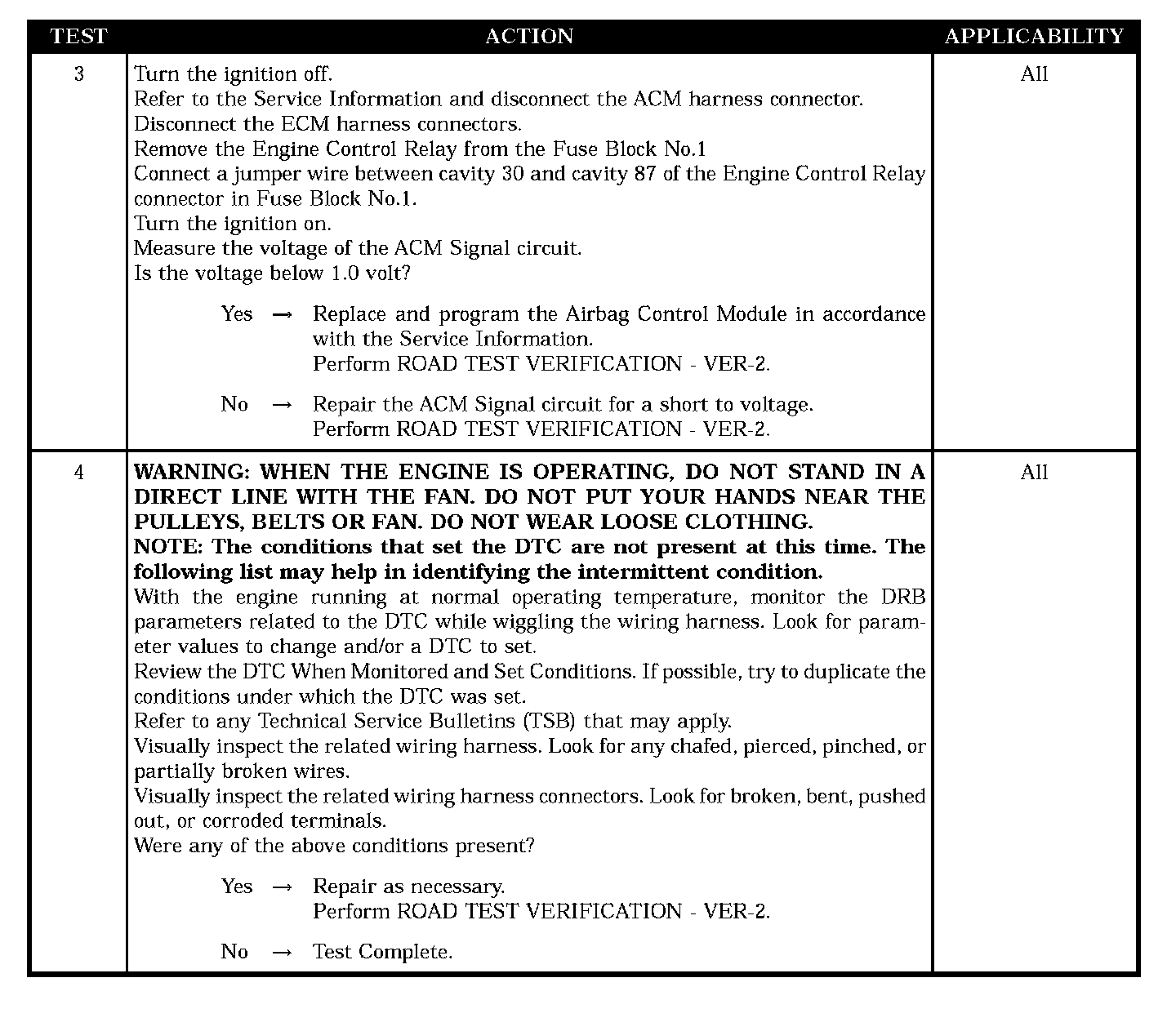

Test 3 - 4:

SYMPTOM
P1681 - ACM CIRCUIT FAULT

POSSIBLE CAUSES
- Airbag control module
- Intermittent condition
- ACM signal circuit shorted to voltage
- Engine control module
