Solenoid Supply/Watchdog

Symptom:
SOLENOID SUPPLY/WATCHDOG

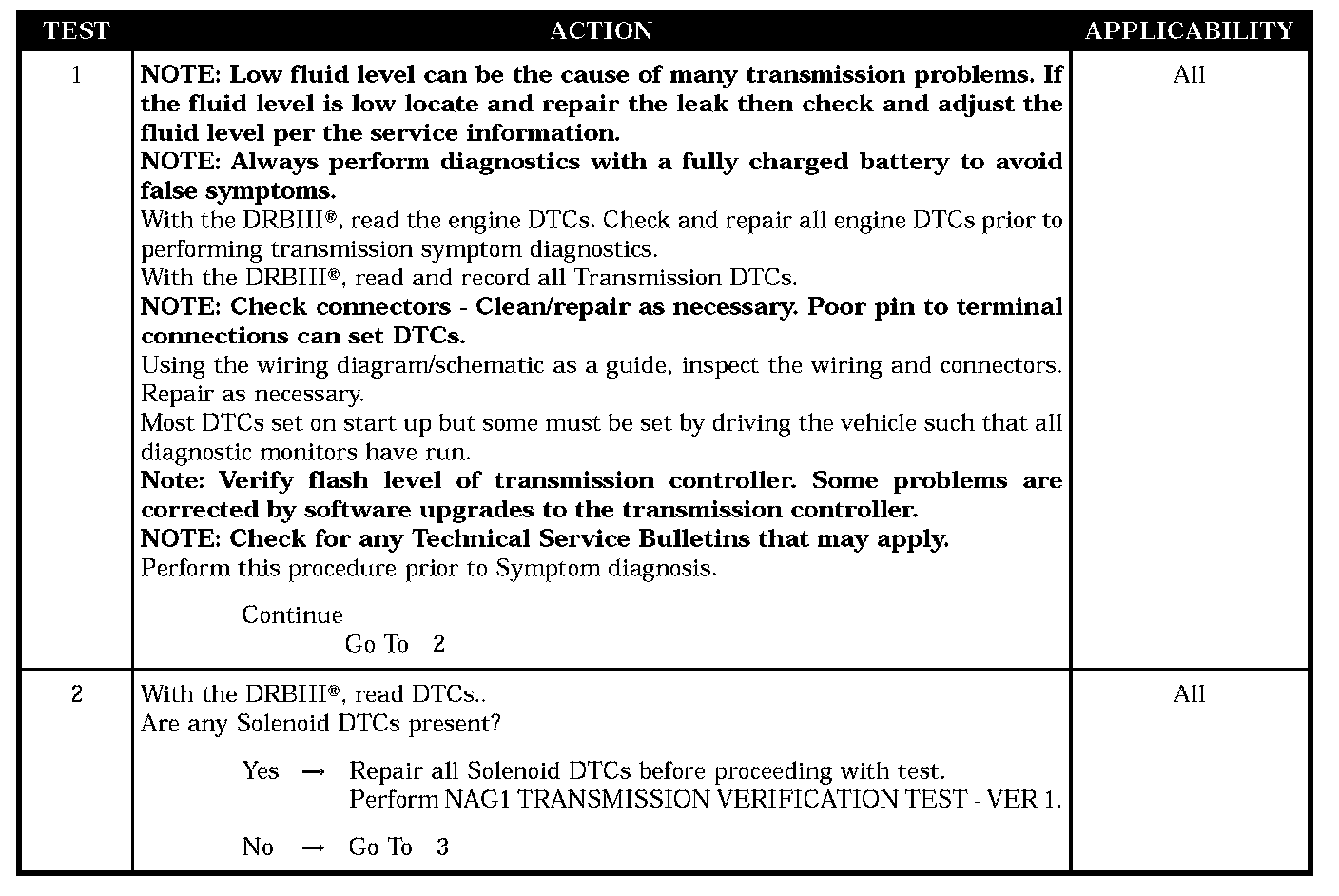

Test 1-2:

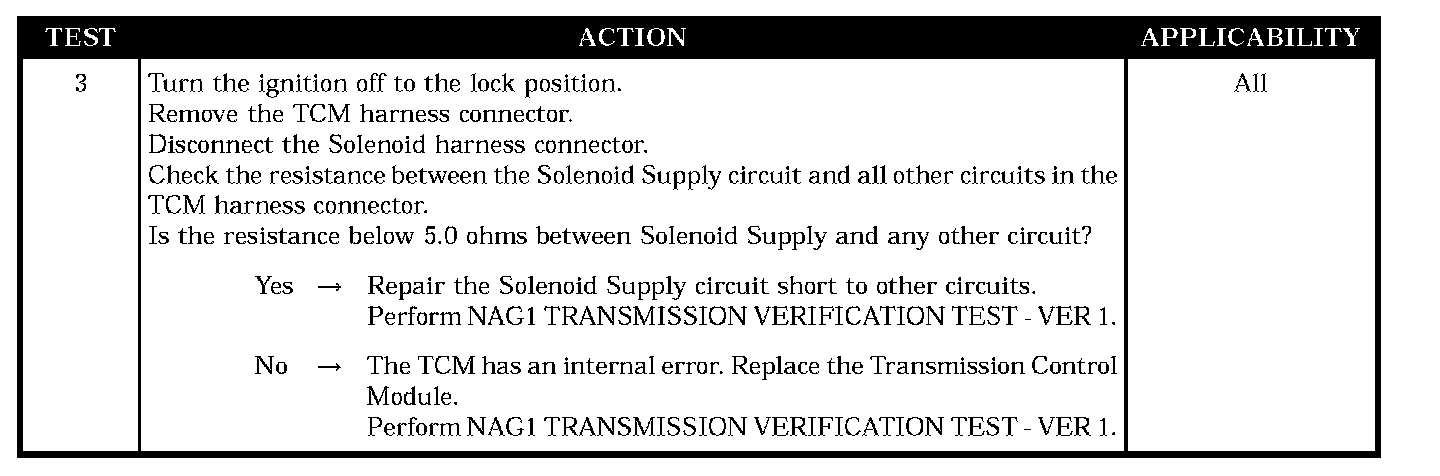

Test 3:





When Monitored:
Always monitored with system active at each ignition cycle.

Set Condition:
During the power up of the TCM, it tests the ability of the external watchdog to shut down the Solenoid Supply driver.

POSSIBLE CAUSES
- SOLENOID SUPPLY CIRCUIT SHORT TO OTHER CIRCUITS
- SOLENOID DTCS PRESENT
- TCM - SOLENOID SUPPLY WATCHDOG
