CAN Messages From ECM From SLA

Symptom:
CAN MESSAGE FROM ECM FROM SLA

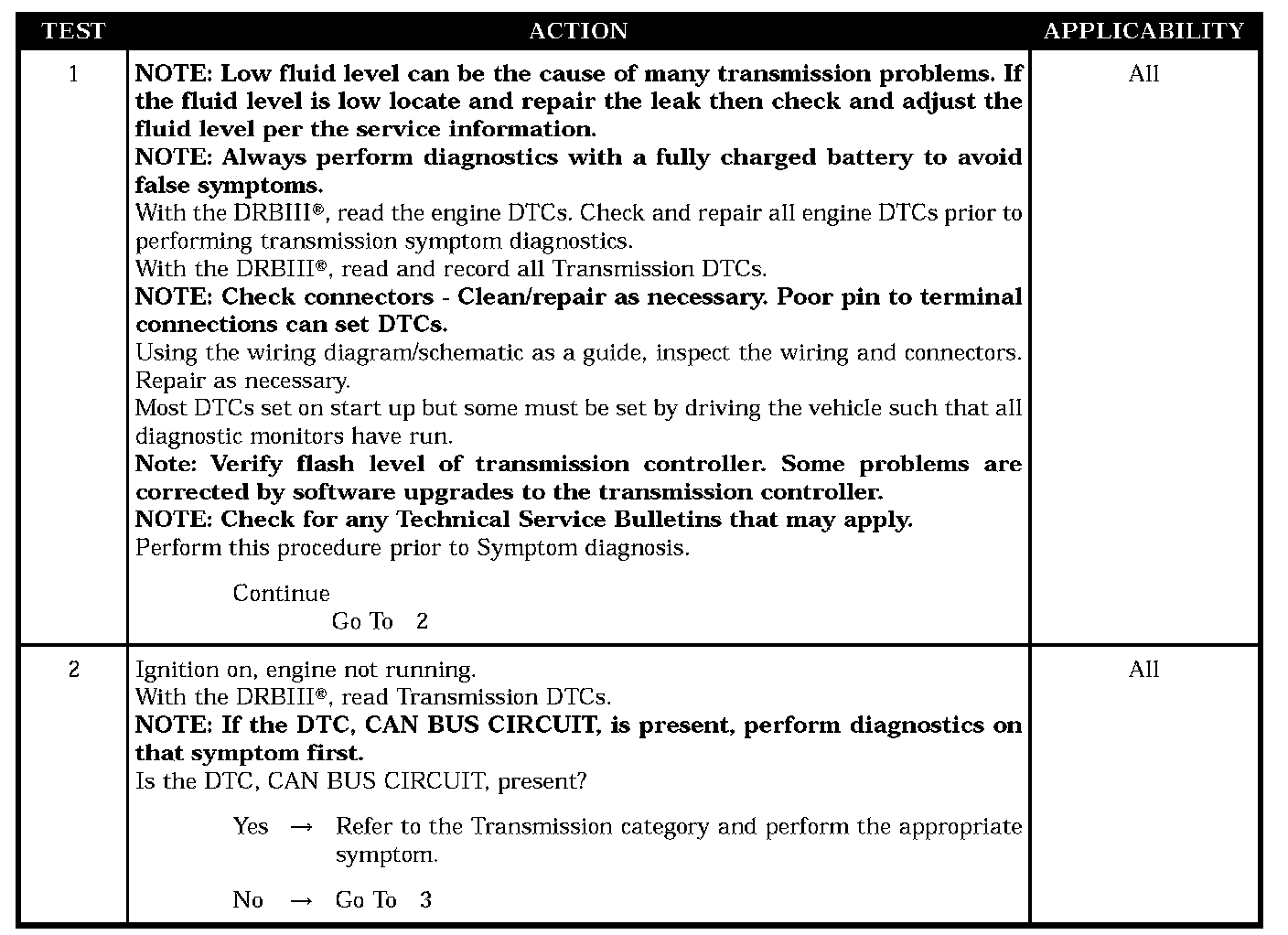

Test 1-2:

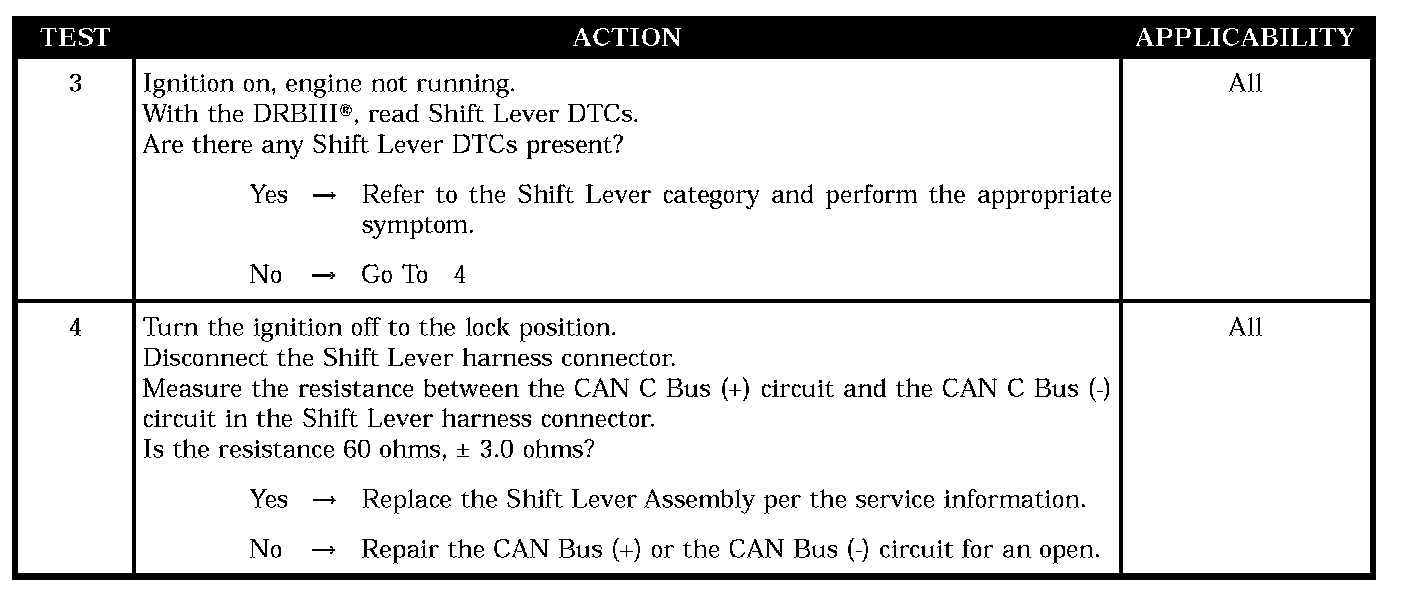

Test 3-4:

When Monitored:

Set Condition:
CAN Bus message received from the Shift Lever Assembly are incorrect.

POSSIBLE CAUSES
- CAN BUS CIRCUIT DTC PRESENT
- SHIFT LEVER DTCS PRESENT
- OPEN CAN BUS CIRCUITS AT SHIFT LEVER
- SHIFT LEVER ASSEMBLY
