ABS CAN Messages Incorrect

Symptom:
ABS CAN MESSAGE INCORRECT

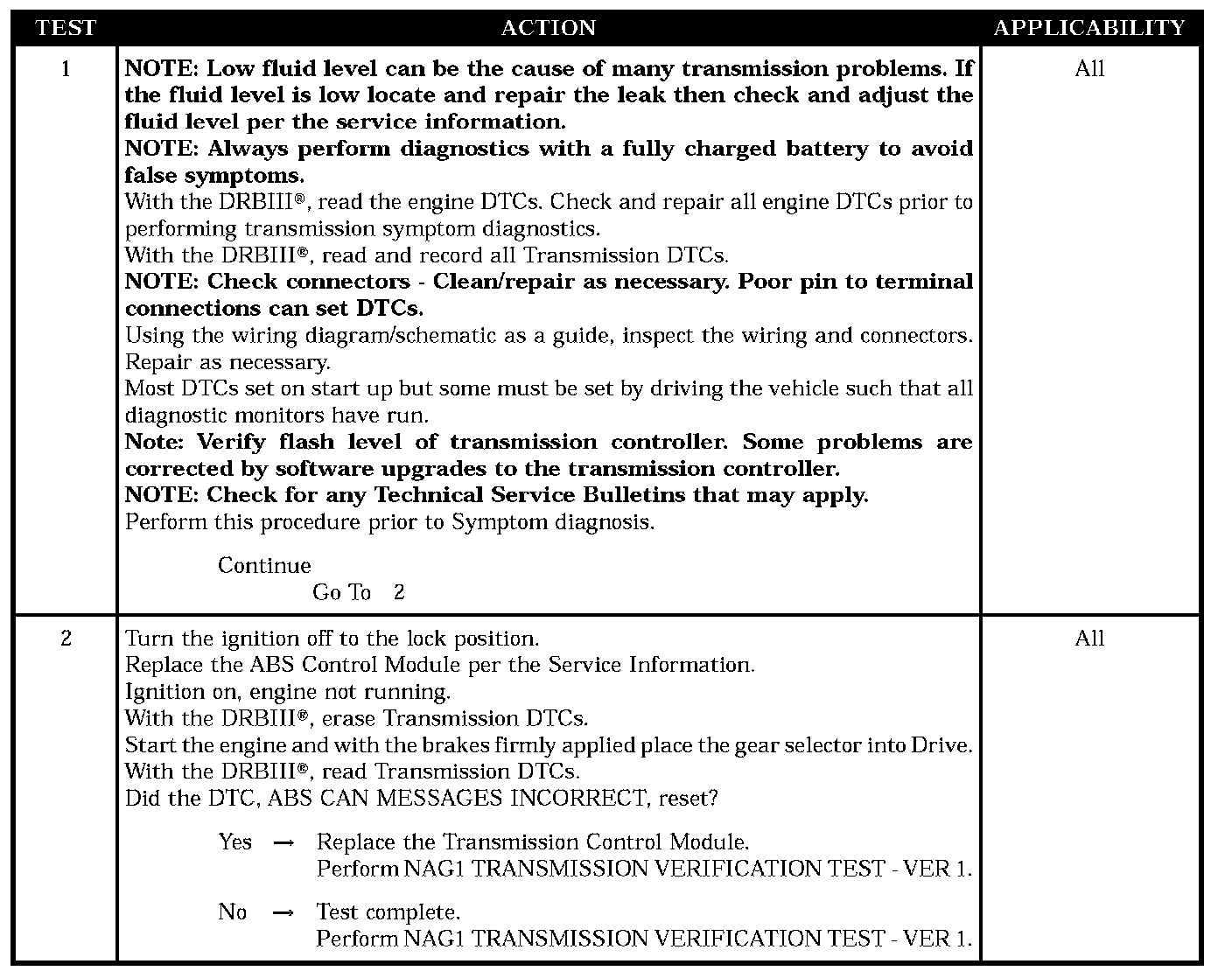

Test 1-2:





When Monitored:
ABS CAN messages received at least once and CAN Bus Circuit (37) is not active

Set Condition:
DTC Detected if the number of bytes incorrect for CAN ID.

POSSIBLE CAUSES
- ABS-INTERNAL
- TCM-INTERNAL
