CAN Bus Circuit

Symptom:
CAN BUS CIRCUIT

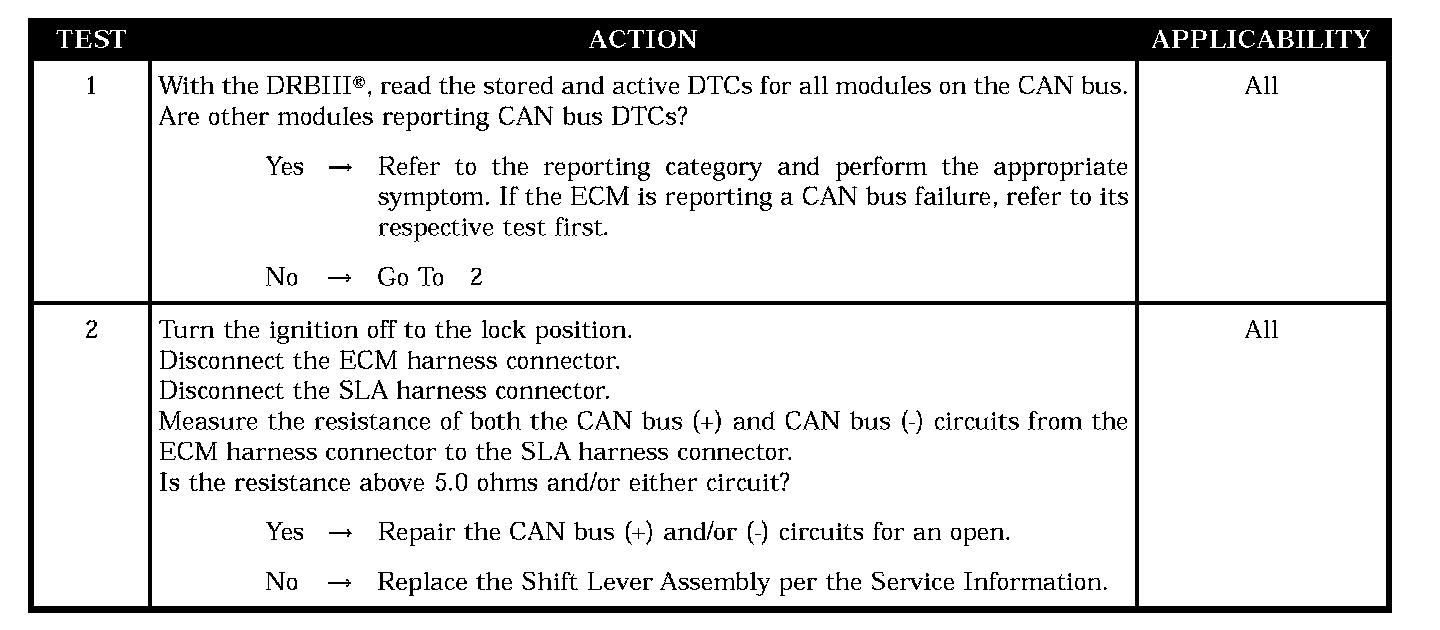

Test 1-2:





POSSIBLE CAUSES
- CAN COMMUNICATION FAILURE
- CAN BUS (+) OR () OPEN
- SHIFT LEVER ASSEMBLY
