Refrig Press Sensor Shorted Low (Active)

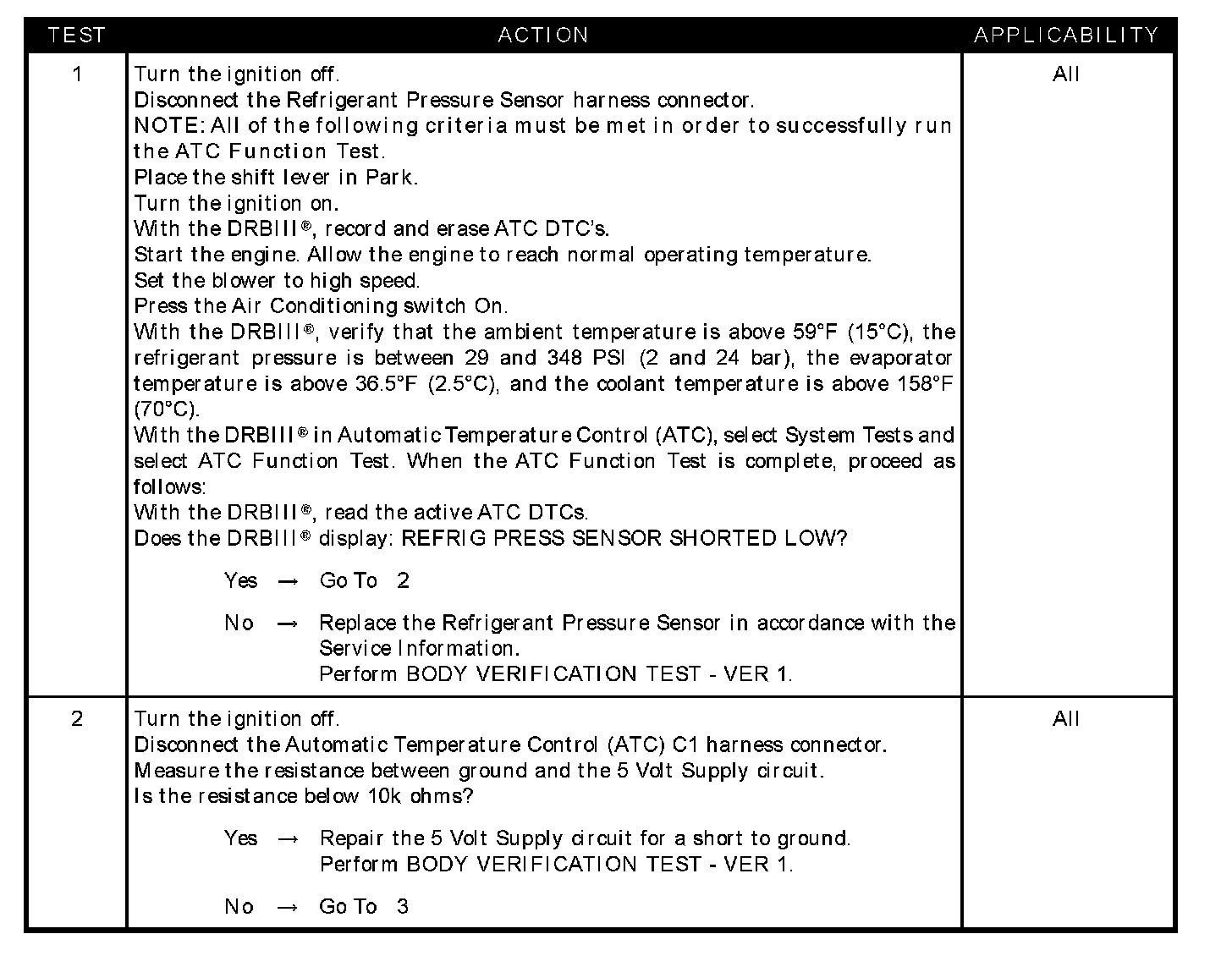

Test 1 - 2:

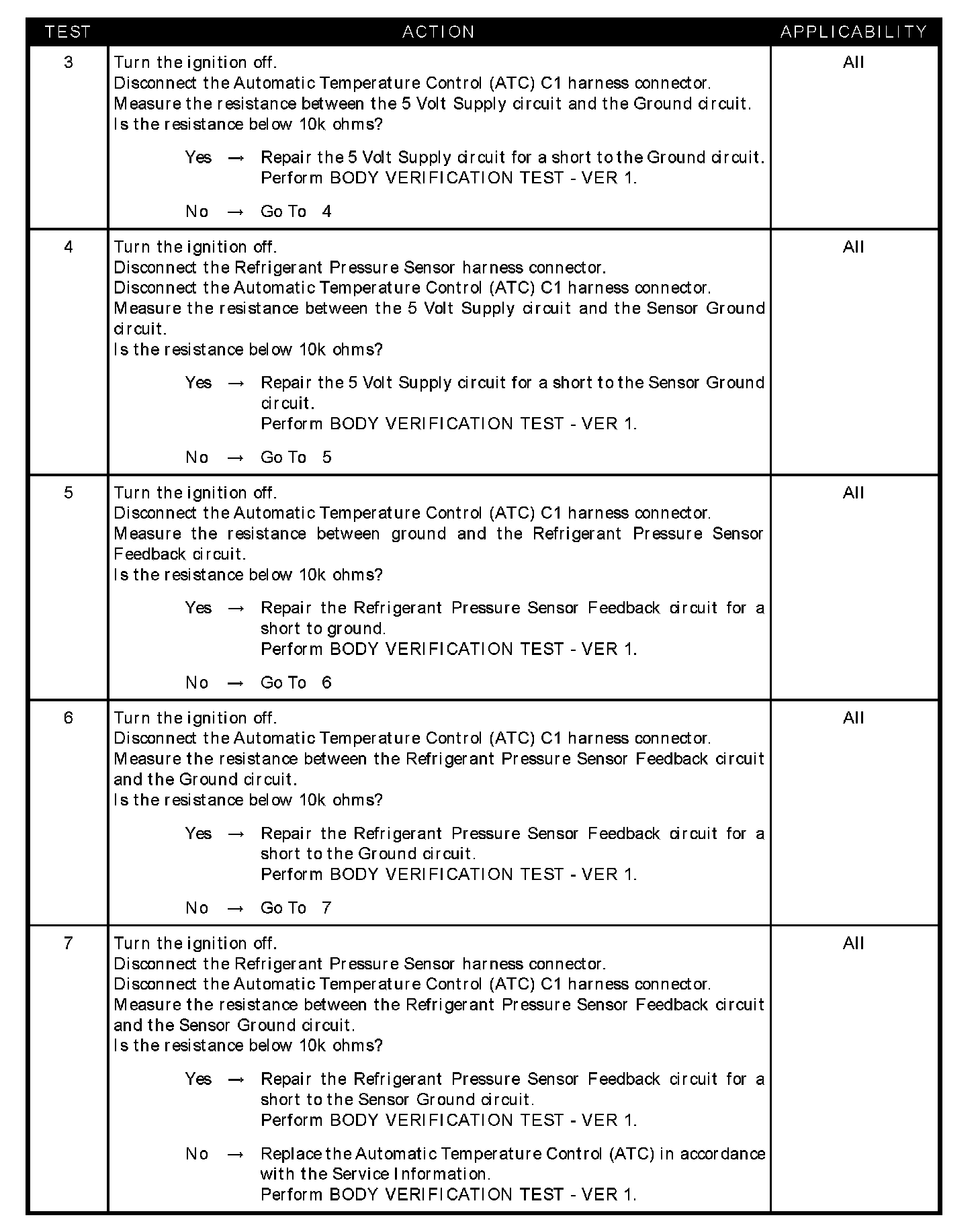

Test 3 - 7:

SYMPTOM
REFRIG PRESS SENSOR SHORTED LOW (ACTIVE)

POSSIBLE CAUSES
- Refrigerant pressure sensor
- 5 volt supply circuit shorted to ground
- 5 volt supply circuit shorted to ground circuit
- 5 volt supply circuit shorted to sensor ground circuit
- Refrigerant pressure sensor feedback circuit shorted to ground
- Refrigerant pressure sensor feedback circuit shorted to ground circuit
- Refrigerant pressure sensor feedback circuit shorted to sensor ground circuit
- Automatic temperature control (ATC)
