Cabin Heater Control Shorted Low (Active)

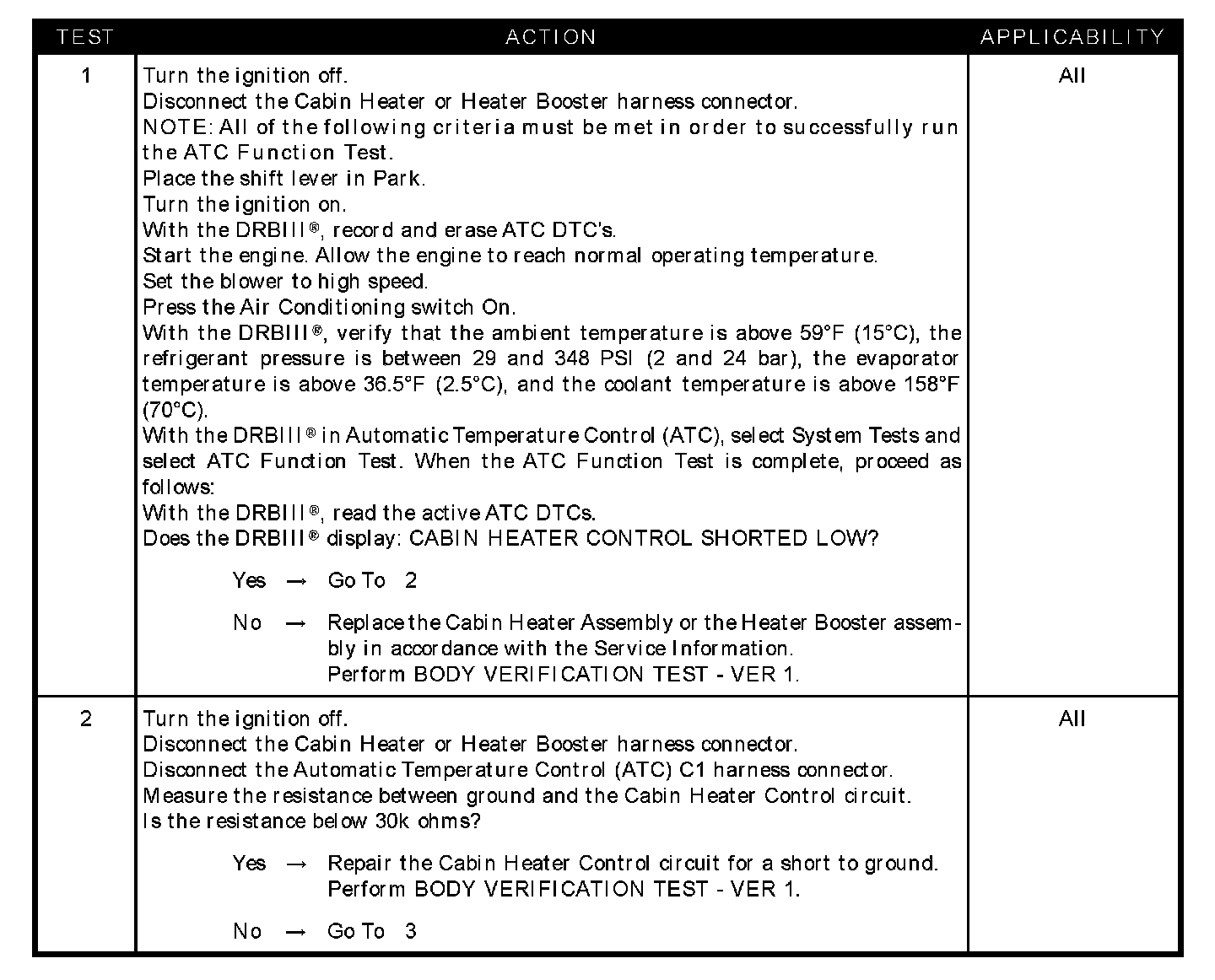

Test 1 - 2:

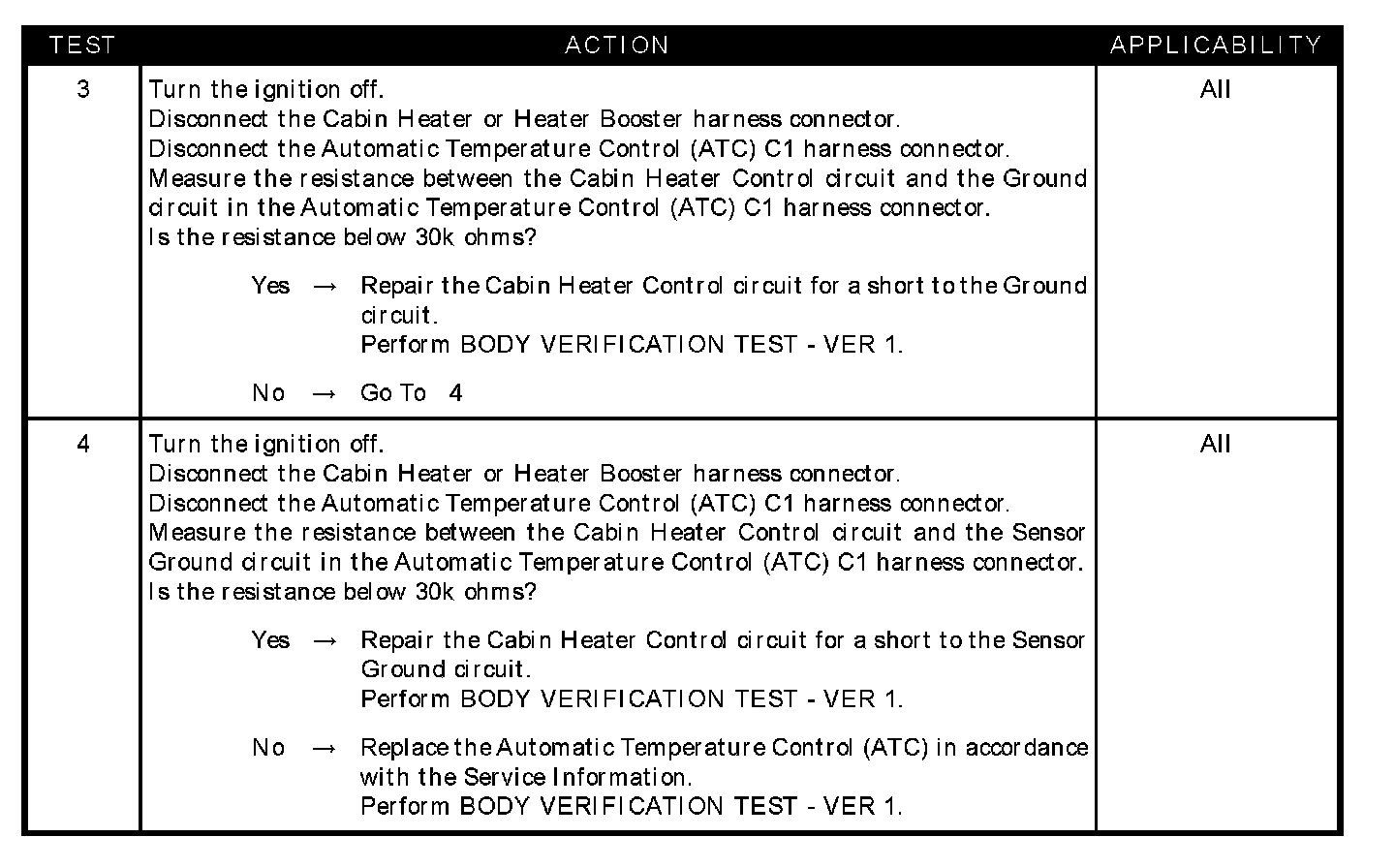

Test 3 - 4:

SYMPTOM
CABIN HEATER CONTROL SHORTED LOW (ACTIVE)

POSSIBLE CAUSES
- Cabin heater or heater booster control unit
- Cabin heater control circuit shorted to ground
- Cabin heater control circuit shorted to ground circuit
- Cabin heater control circuit shorted to sensor ground circuit
- Automatic temperature control (ATC)
