No Response From Airbag Control Module

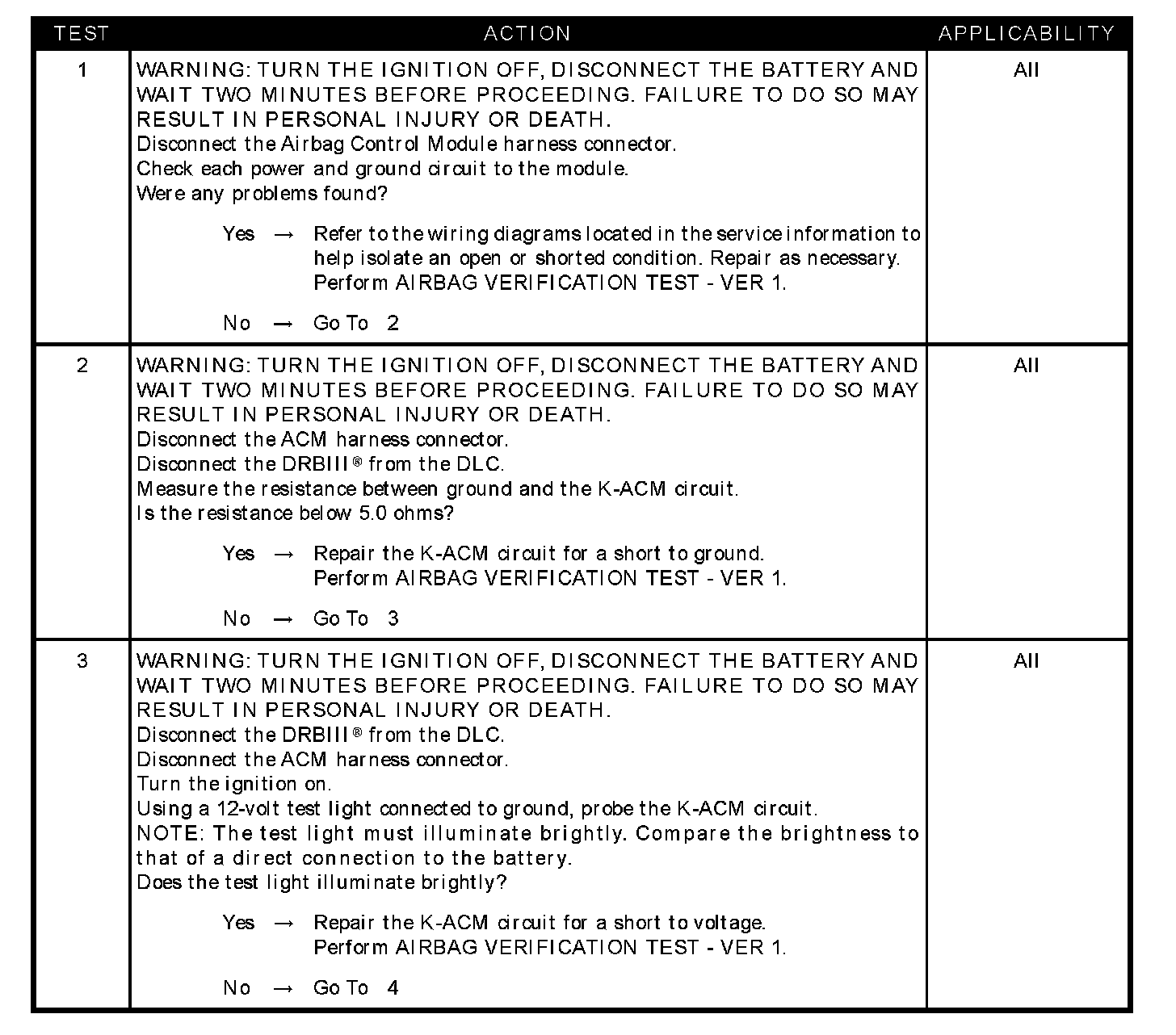

Test 1 - 3:

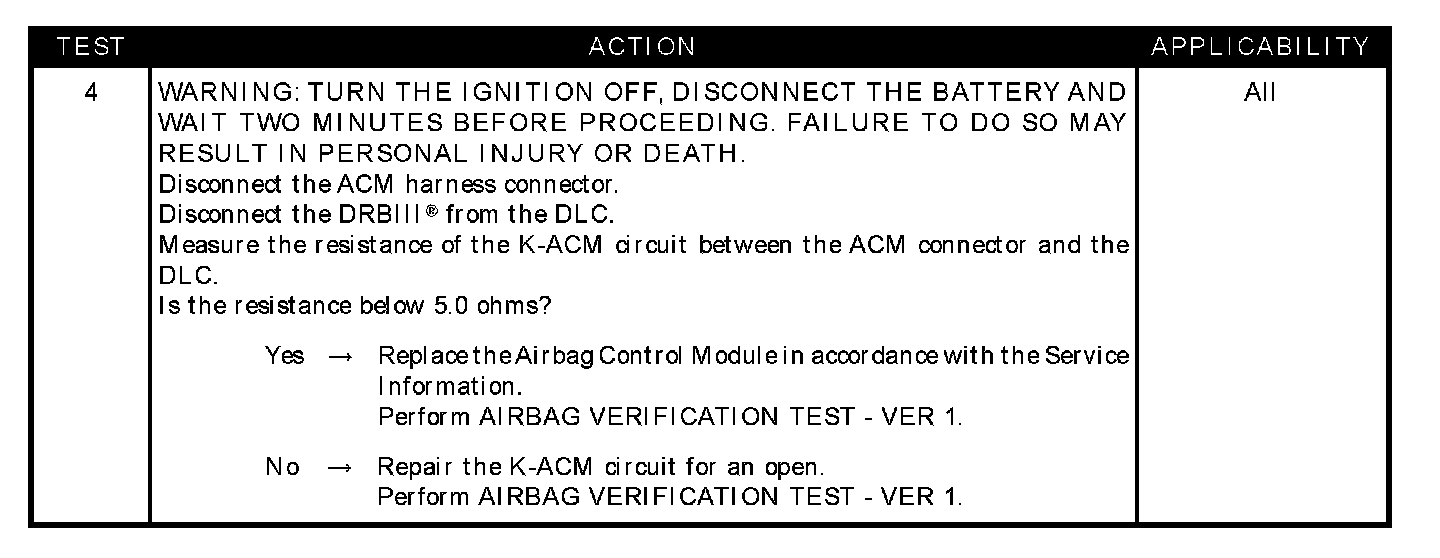

Test 4:

SYMPTOM
NO RESPONSE FROM AIRBAG CONTROL MODULE

POSSIBLE CAUSES
- Check powers and grounds to the airbag control module
- K-ACM circuit shorted to ground
- K-ACM circuit shorted to voltage
- K-ACM circuit open airbag control module
