Steering Angle Sensor Implausible CAN Signal

Symptom:
STEERING ANGLE SENSOR IMPLAUSIBLE CAN SIGNAL

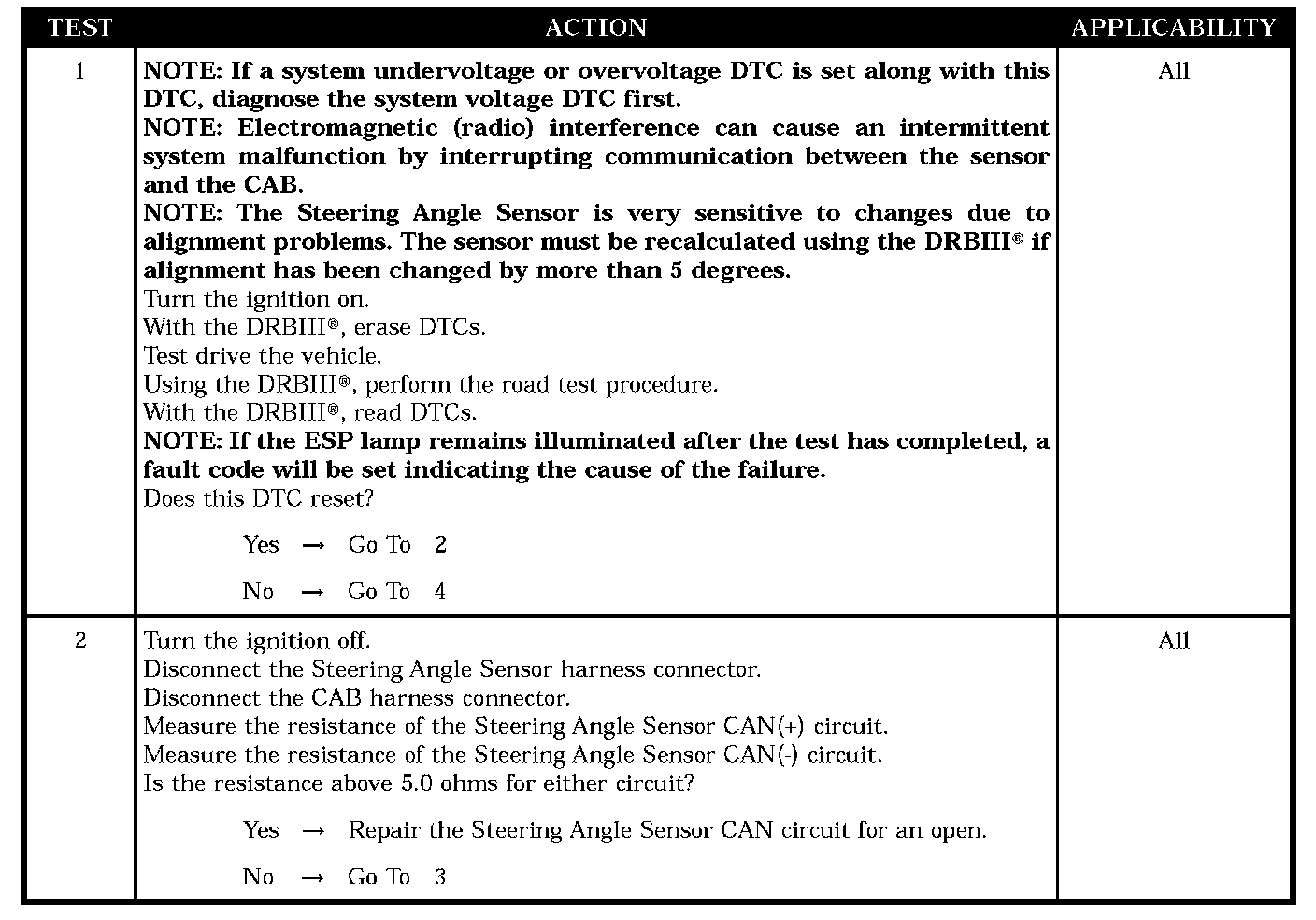

Test 1-2:

Test 3-4:

POSSIBLE CAUSES
- STEERING ANGLE SENSOR INTERMITTENT DTC
- STEERING ANGLE SENSOR CAN CIRCUIT OPEN
- STEERING ANGLE SENSOR
- ANTILOCK BRAKE CONTROLLER
