No Communication With IC

Symptom:
NO COMMUNICATION WITH IC

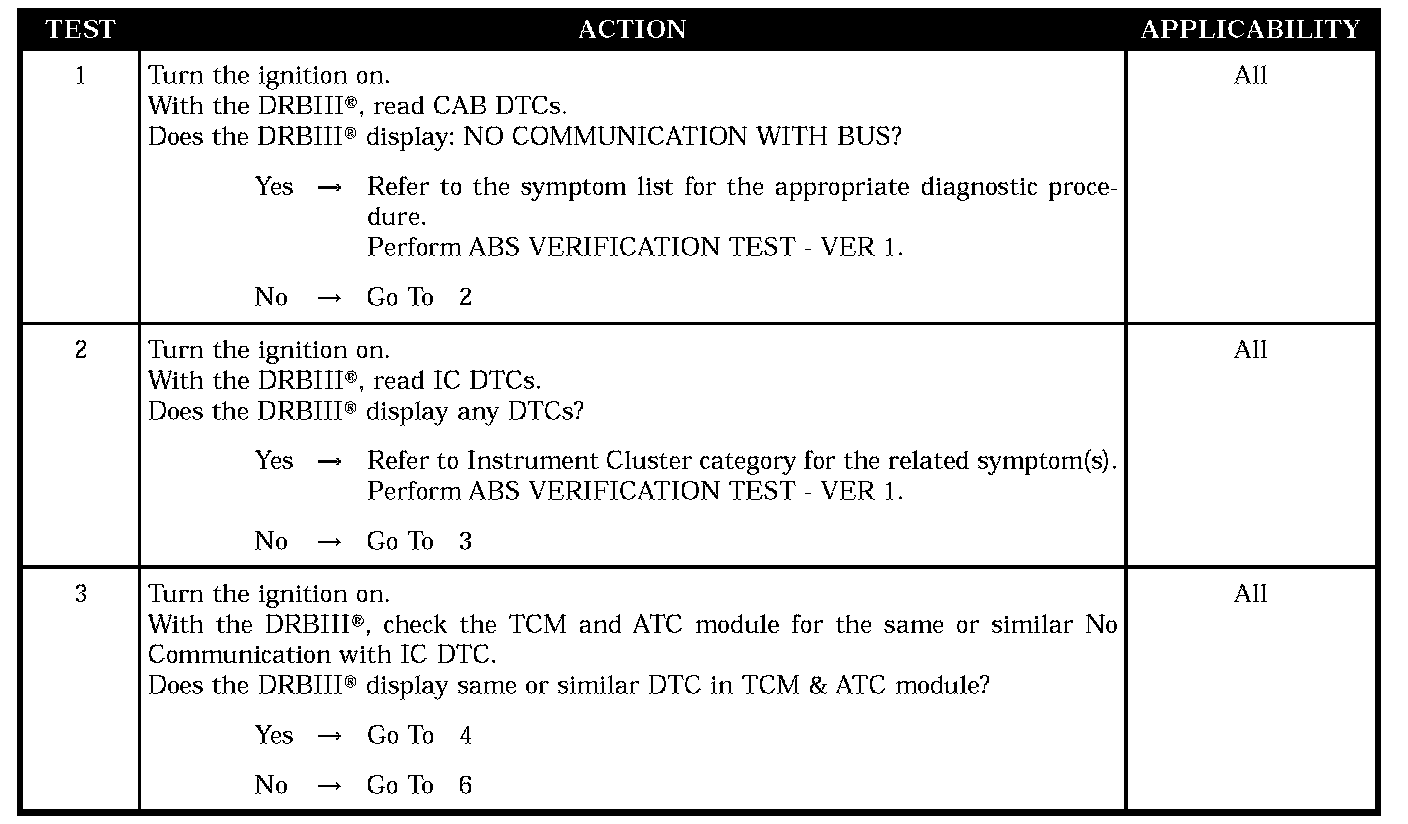

Test 1-3:

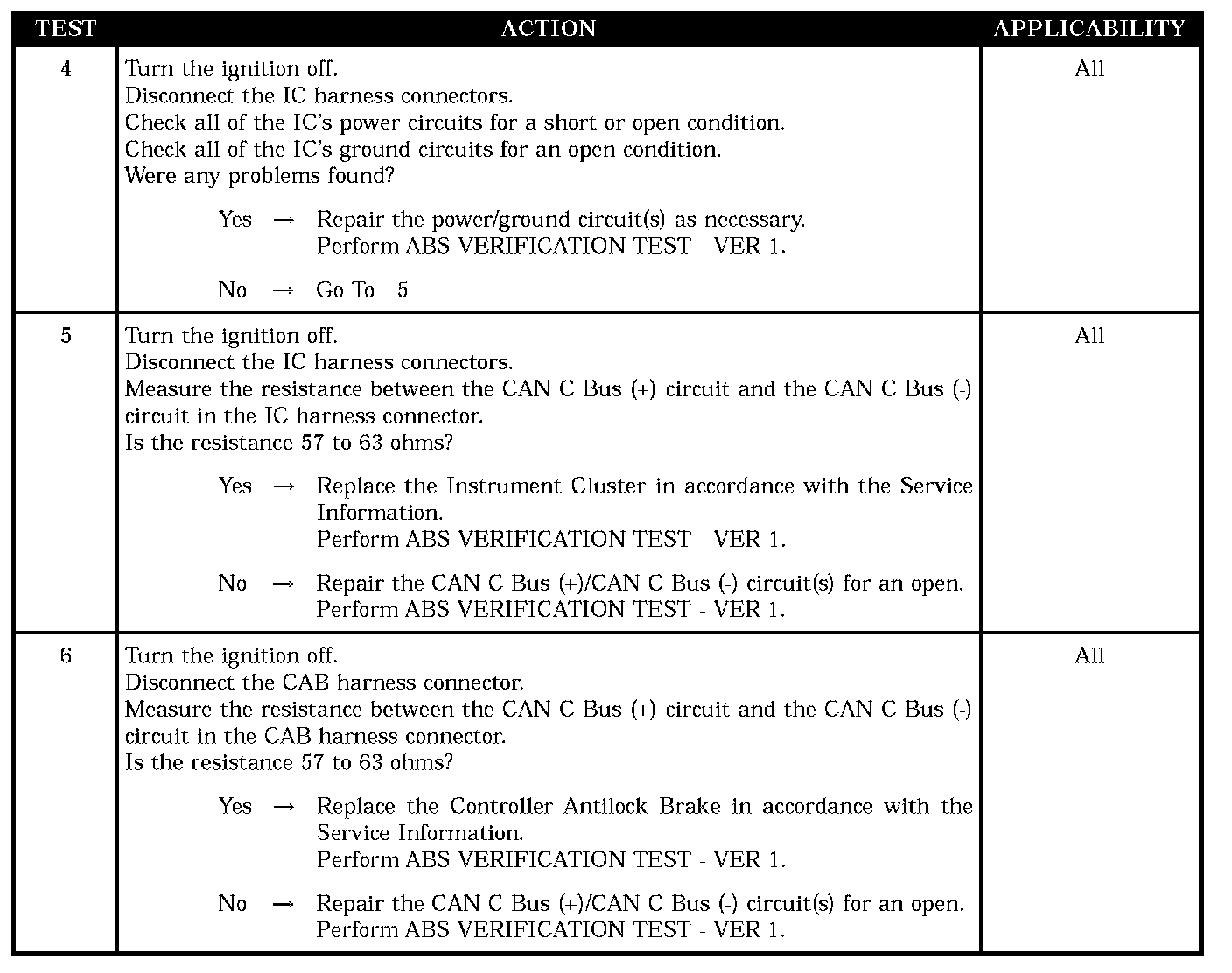

Test 4-6:

When Monitored:
Ignition On - Continuously

Set Condition:
When the CAB fails to receive all messages from the IC.

POSSIBLE CAUSES
- NO COMMUNICATION WITH BUS DTC PRESENT
- INSTRUMENT CLUSTER DTC(S) PRESENT
- INSTRUMENT CLUSTERS POWER/GROUND CIRCUIT(S) SHORTED OR OPEN
- CAN C BUS (+)/CAN C BUS () CIRCUIT(S) OPEN TO INSTRUMENT CLUSTER
- CAN C BUS (+)/CAN C BUS () CIRCUIT(S) OPEN TO CAB
- INSTRUMENT CLUSTER
- ANTILOCK BRAKE CONTROLLER
