CAB Option

Symptom:
CAB OPTION

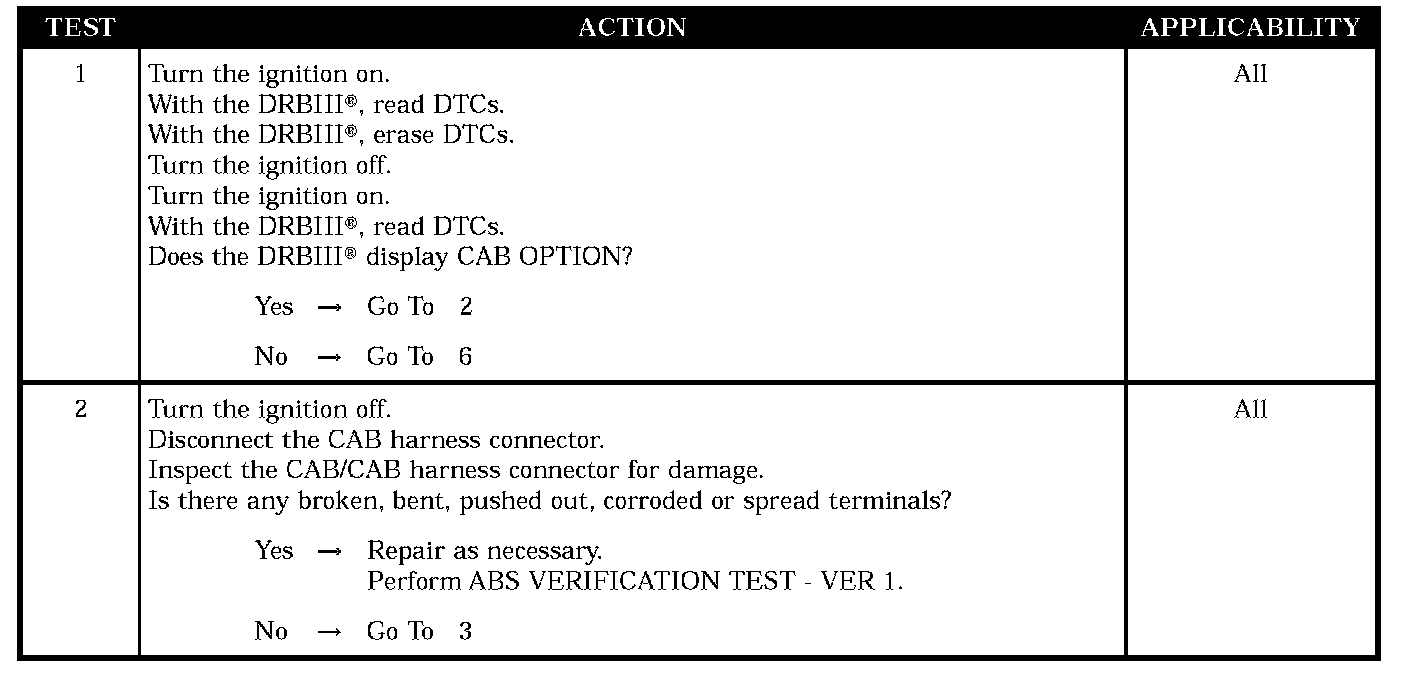

Test 1-2:

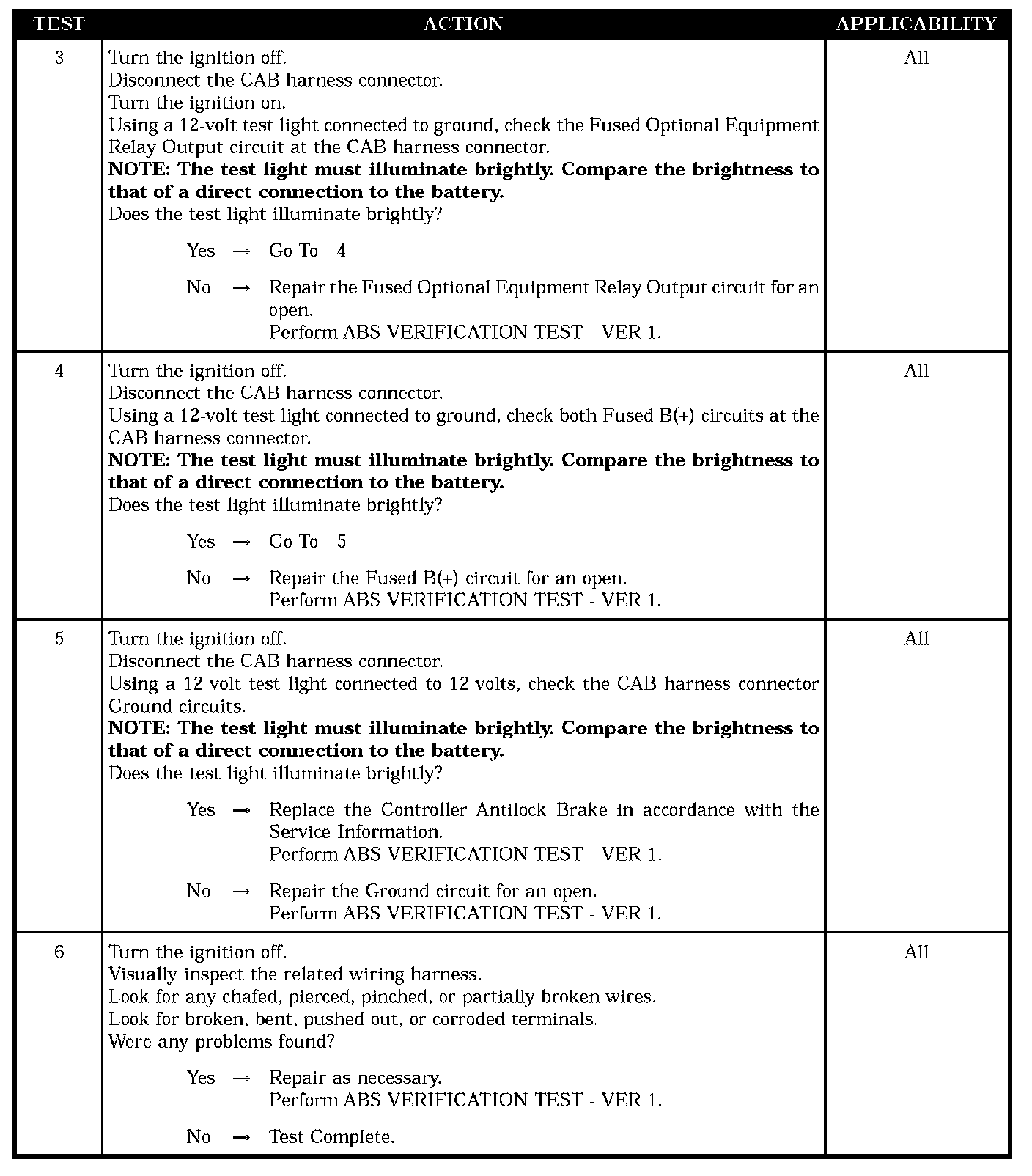

Test 3-6:

When Monitored:
Ignition On - Once

Set Condition:
When the vehicle line information transmitted does not match the
expected values.

POSSIBLE CAUSES
- INTERMITTENT CAB OPTION DTC
- DAMAGED CAB/CAB HARNESS CONNECTOR
- FUSED OPTIONAL EQUIPMENT RELAY OUTPUT CIRCUIT OPEN
- FUSED B(+) CIRCUIT OPEN
- GROUND CIRCUIT OPEN
- ANTILOCK BRAKE CONTROLLER
