Antilock Brake System (ABS)
>>
Brake Fluid Level
Brake Fluid Level
Symptom:
BRAKE FLUID LEVEL

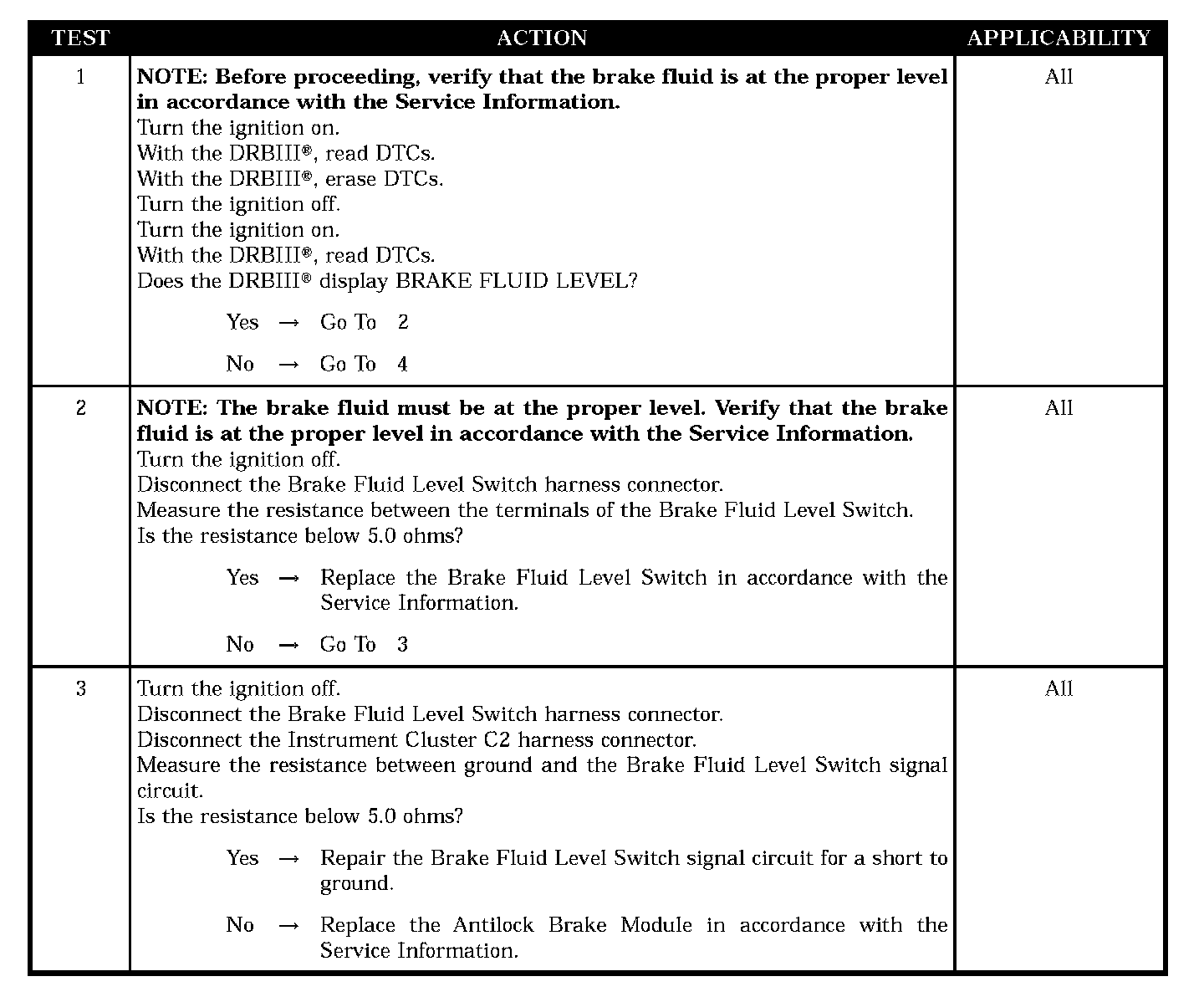

Test 1-3:
Test 4:
POSSIBLE CAUSES
-
INTERMITTENT DTC
-
BRAKE FLUID LEVEL SWITCH SIGNAL CIRCUIT SHORT TO GROUND
-
BRAKE FLUID LEVEL SWITCH
-
ANTILOCK BRAKE MODULE
