Home >> Dodge or Ram Truck >> 2001 >> RAM 2500 Van V8-5.2L VIN Y >> Repair and Diagnosis >> Diagrams >> Connector Views >> Audible Warning Device Control Module

Audible Warning Device Control Module

Central Timer Module C1 (Highline):

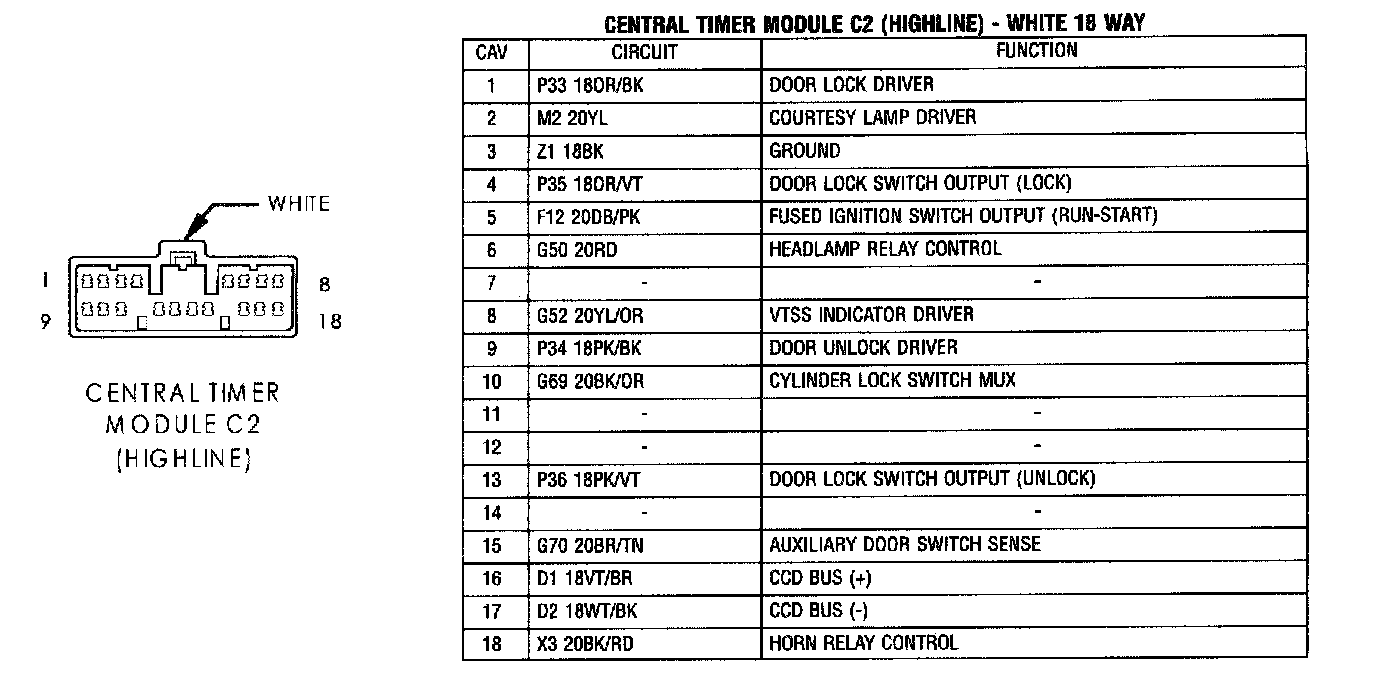

Central Timer Module C2 (Highline):
