RAM 2500 Van V8-5.2L Prop VIN 2
>>
Repair and Diagnosis
>>
Specifications
>>
Mechanical Specifications
>>
Automatic Transmission/Transaxle
>>
System Specifications
System Specifications
General:
GENERAL
TORQUE

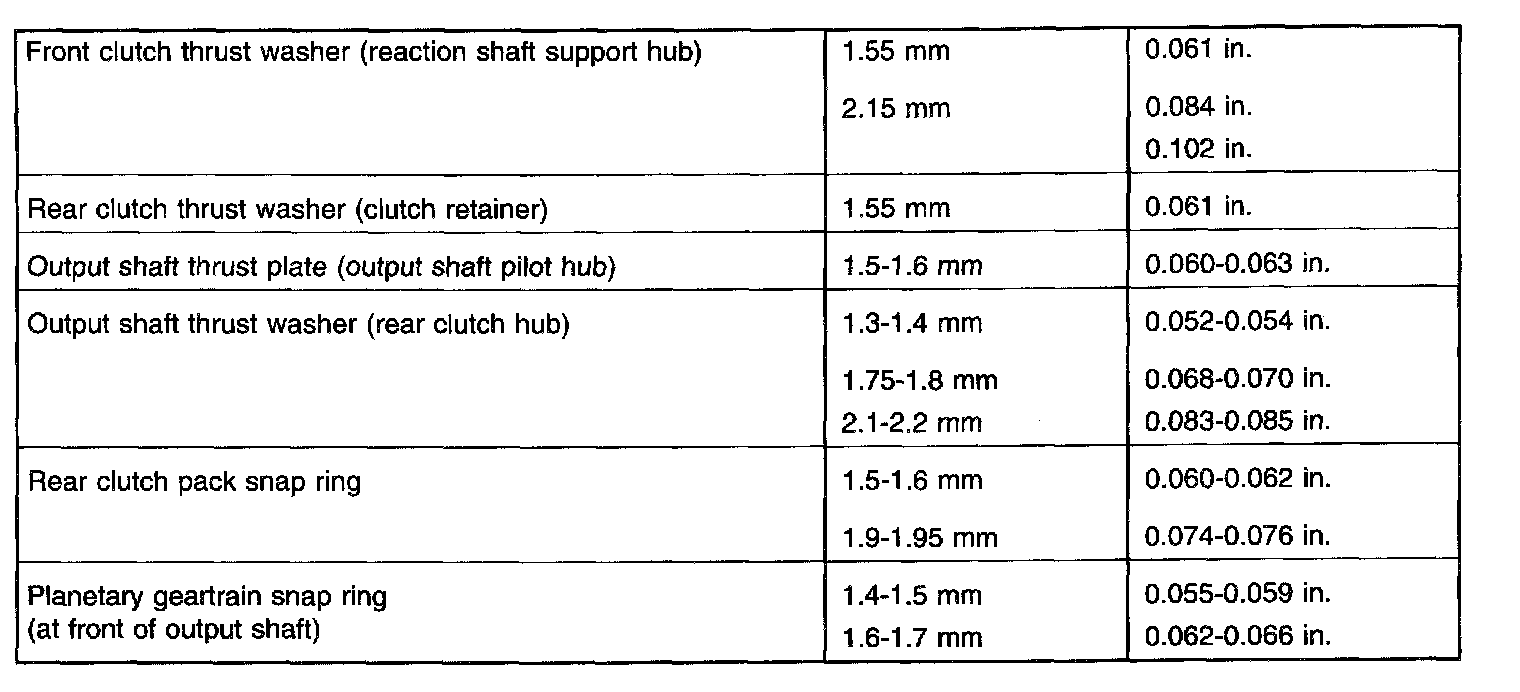

Thrust Washer/Spacer/Snap Ring Dimensions:
THRUST WASHER/SPACER/SNAP RING DIMENSIONS

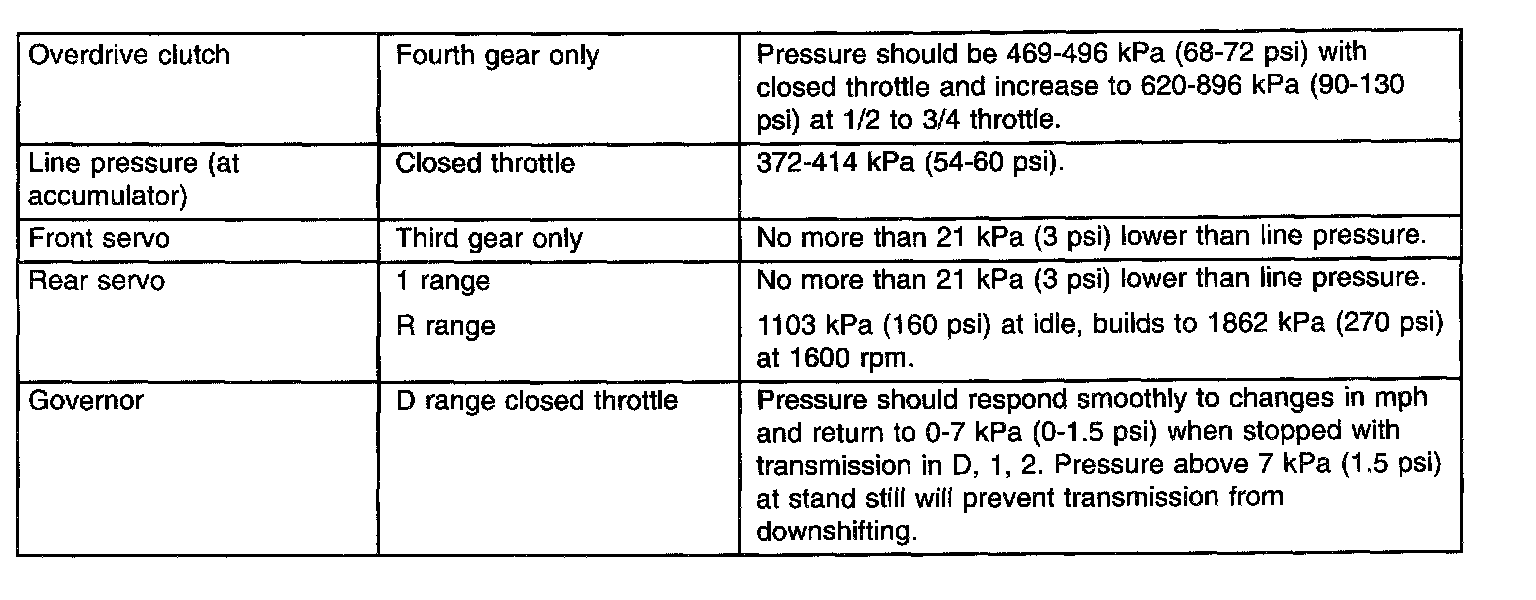

Pressure Test:
PRESSURE TEST
