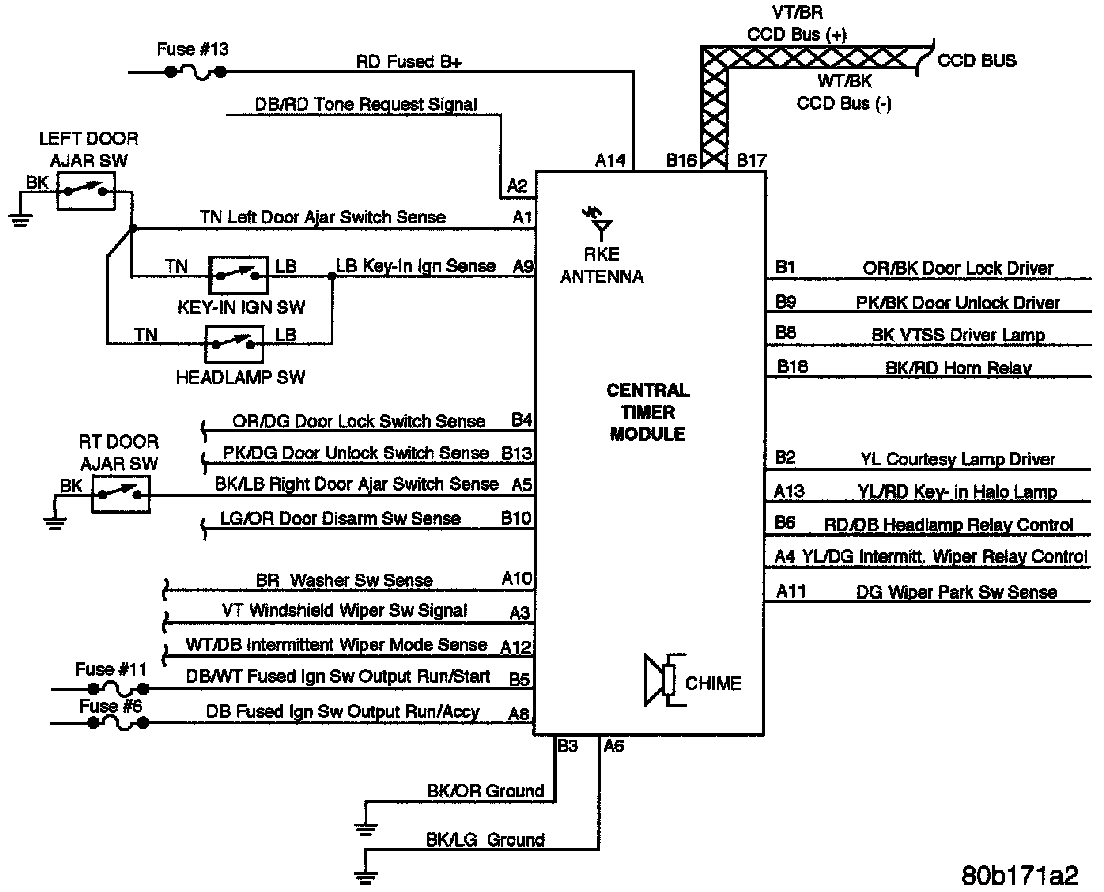

Central Timer Module (CTM) System

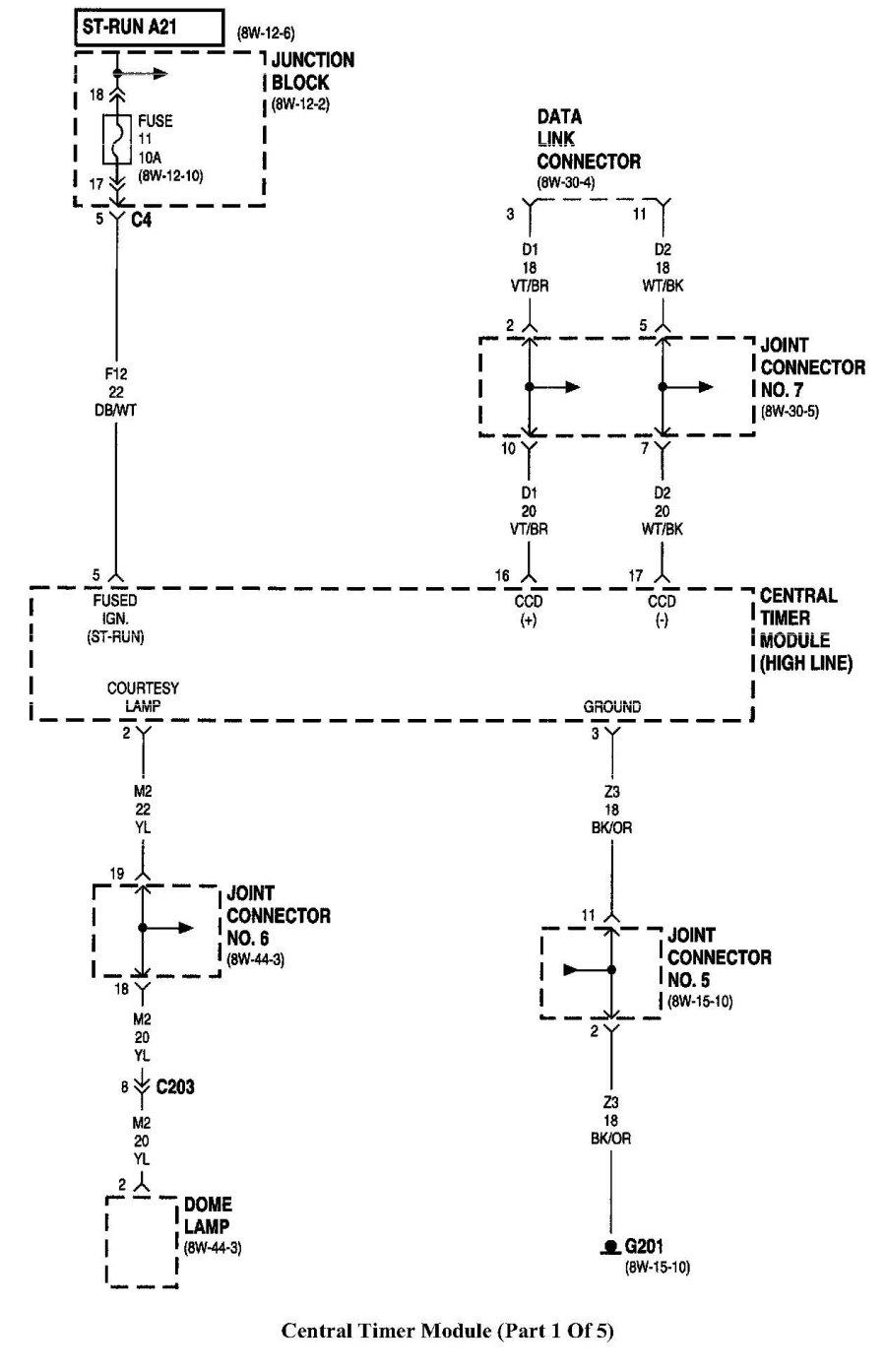

CTM (1 Of 5):
CTM (2 Of 5):

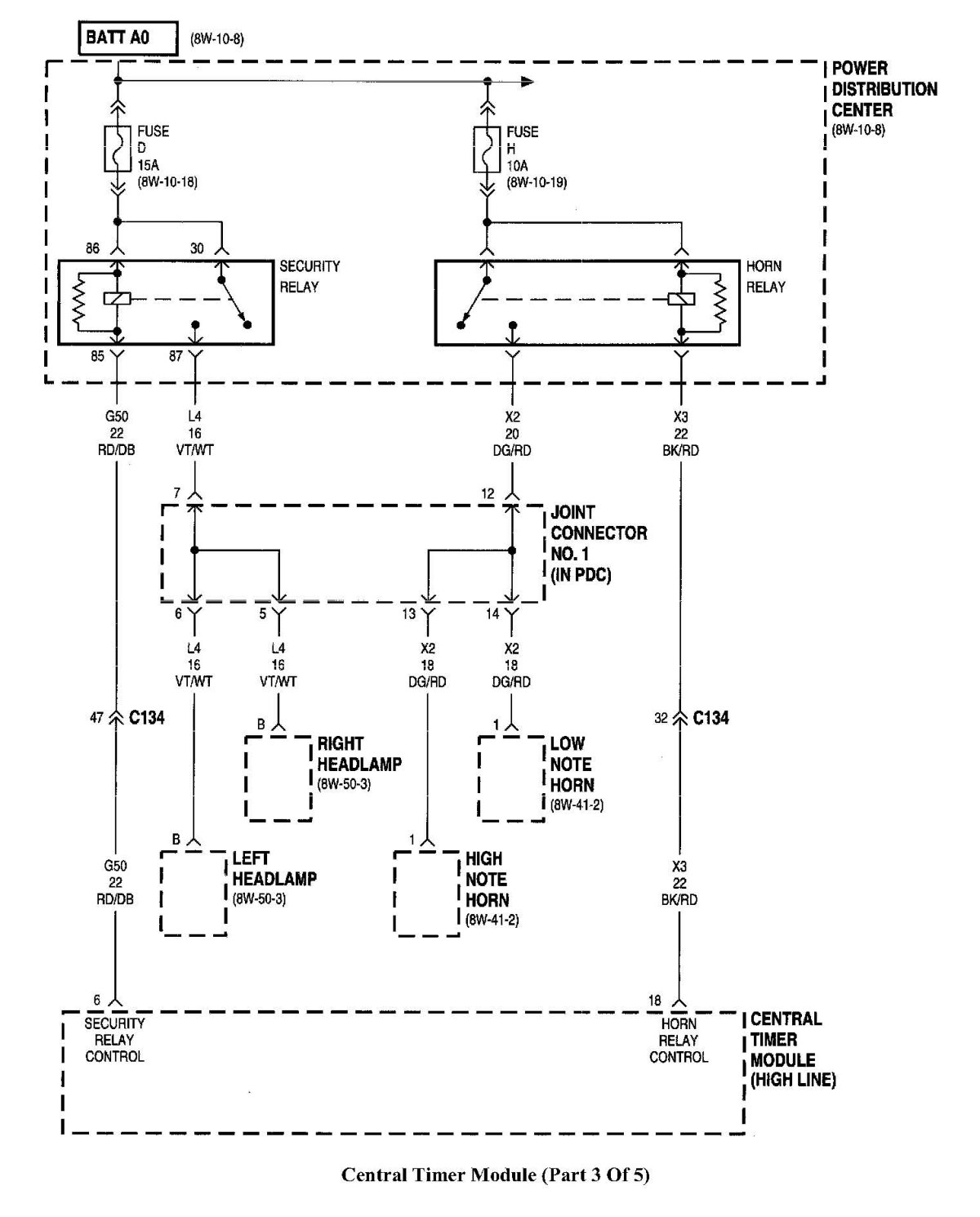

CTM (3 Of 5):

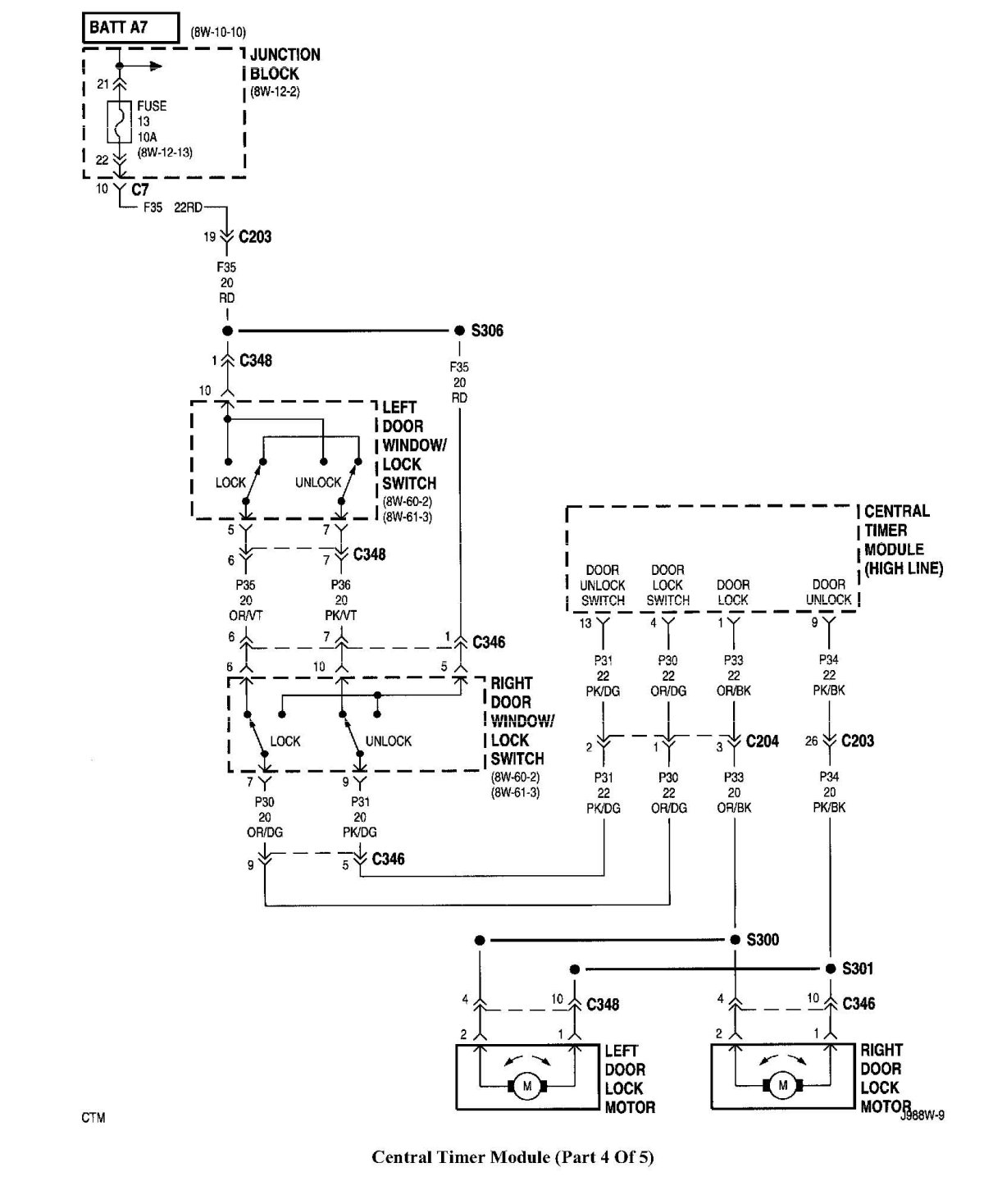

CTM (4 Of 5):

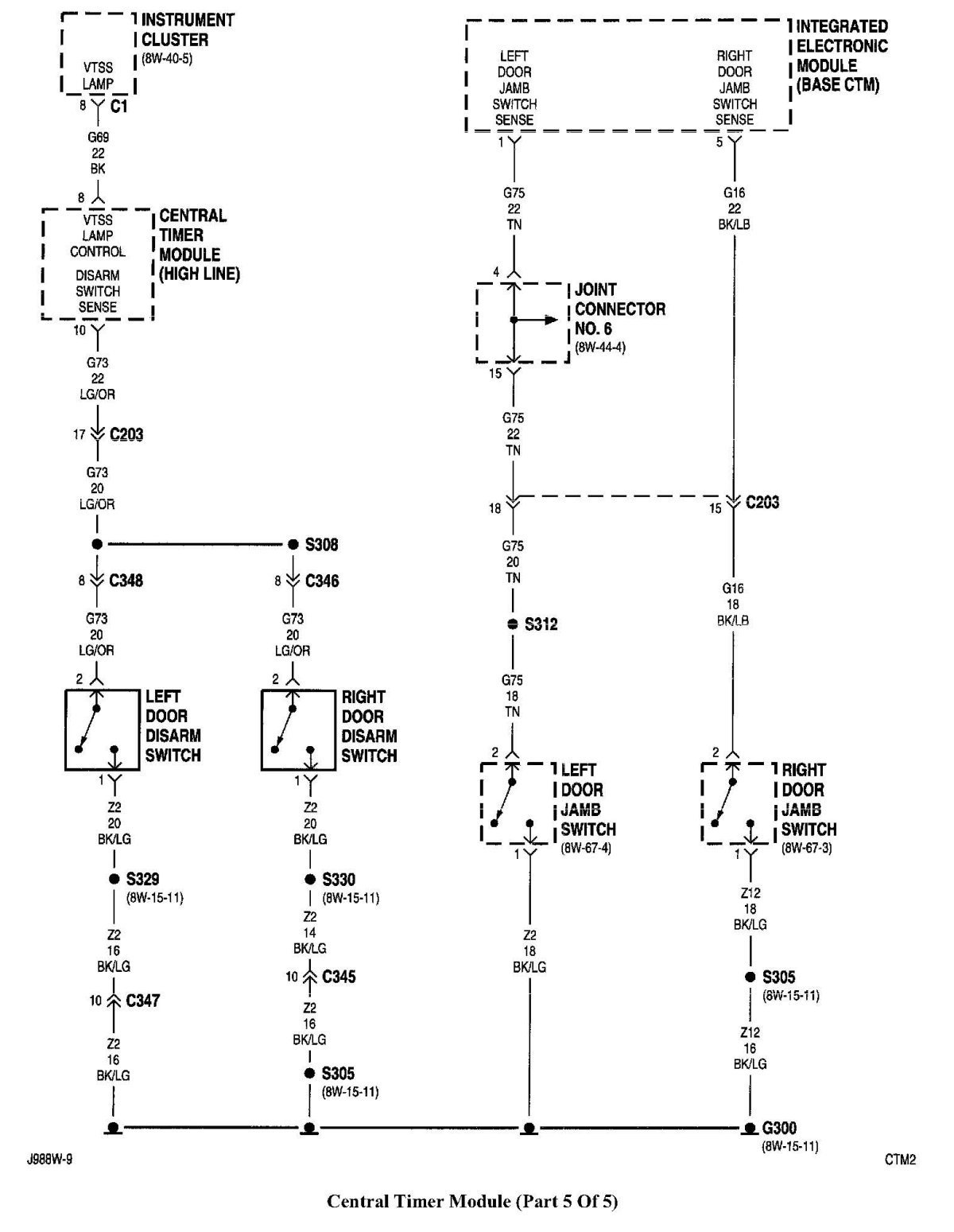

CTM (5 Of 5):
