Flow of Diagnosis

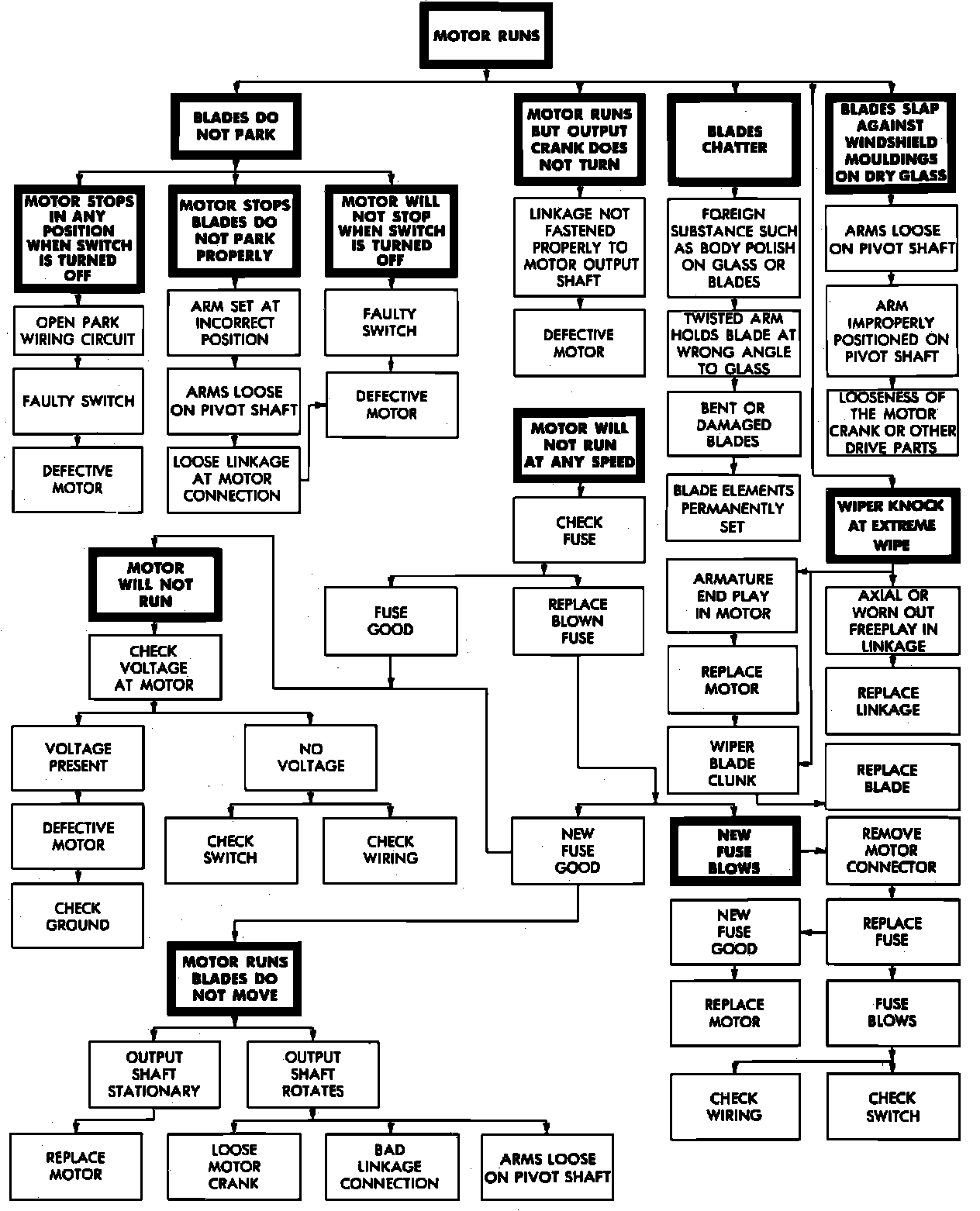

Fig. 18 Wiper System Troubleshooting Chart:

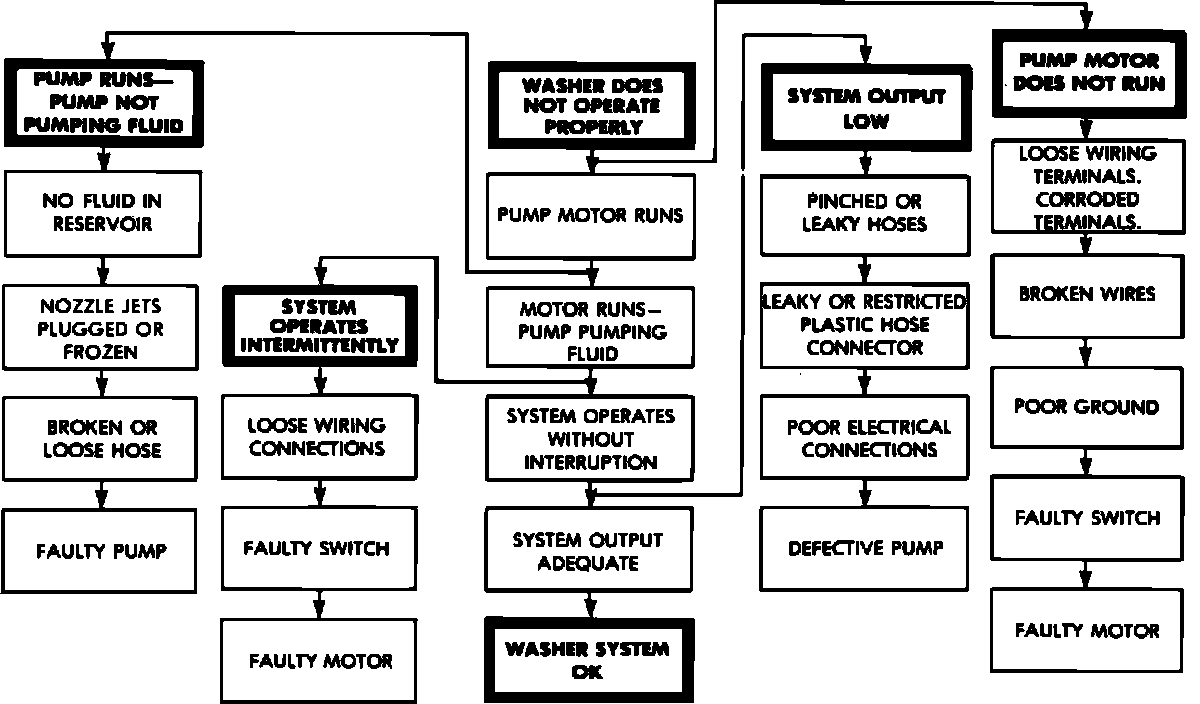

Fig. 19 Washer System Troubleshooting Chart:
