Home >> Dodge or Ram Truck >> 1993 >> Caravan AWD V6-201 3.3L >> Repair and Diagnosis >> Wiper and Washer Systems >> Testing and Inspection >> Component Tests and General Diagnostics >> Diagnostic Charts >> Test 24A Diagnosing Wiper Problem During Wash Cycle

Test 24A Diagnosing Wiper Problem During Wash Cycle

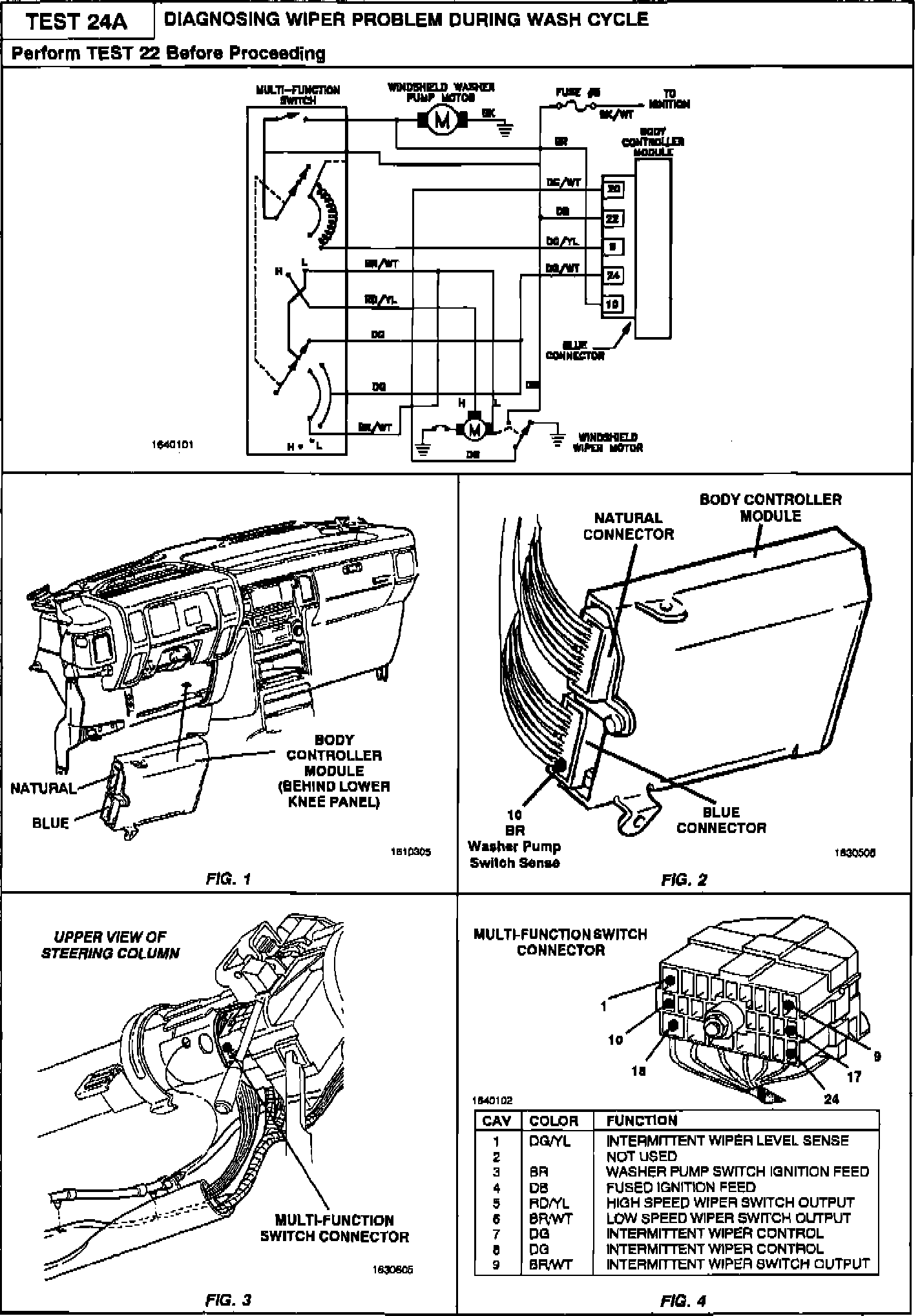

Test 24A - Diagnosing Wiper Problem During Wash Cycle (Part 1 Of 2):



Test 24A - Diagnosing Wiper Problem During Wash Cycle (Part 1 Of 2):

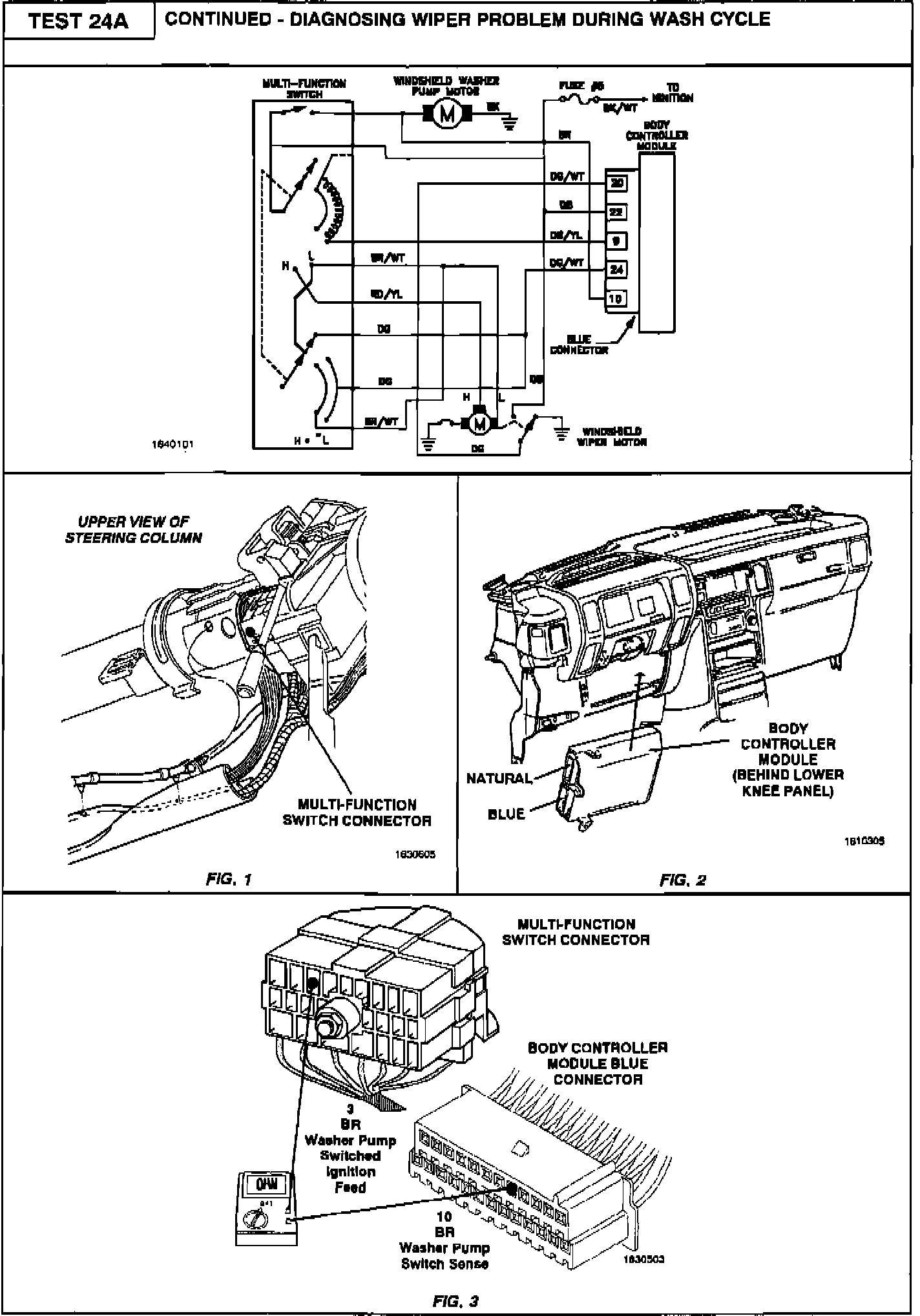

Test 24A - Diagnosing Wiper Problem During Wash Cycle (Part 2 Of 2):



Test 24A - Diagnosing Wiper Problem During Wash Cycle (Part 2 Of 2):
