Test 22A Initial Diagnosis

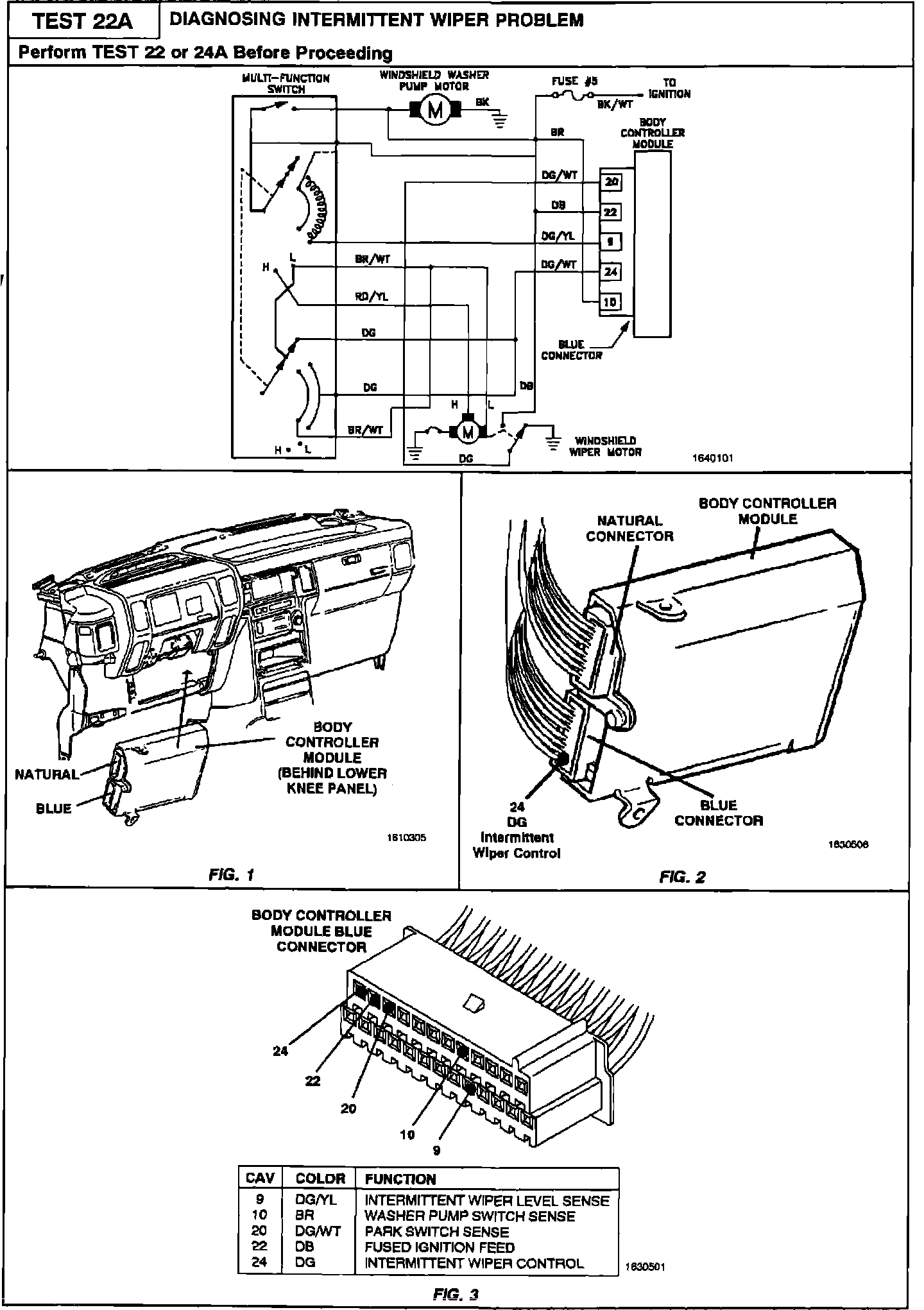

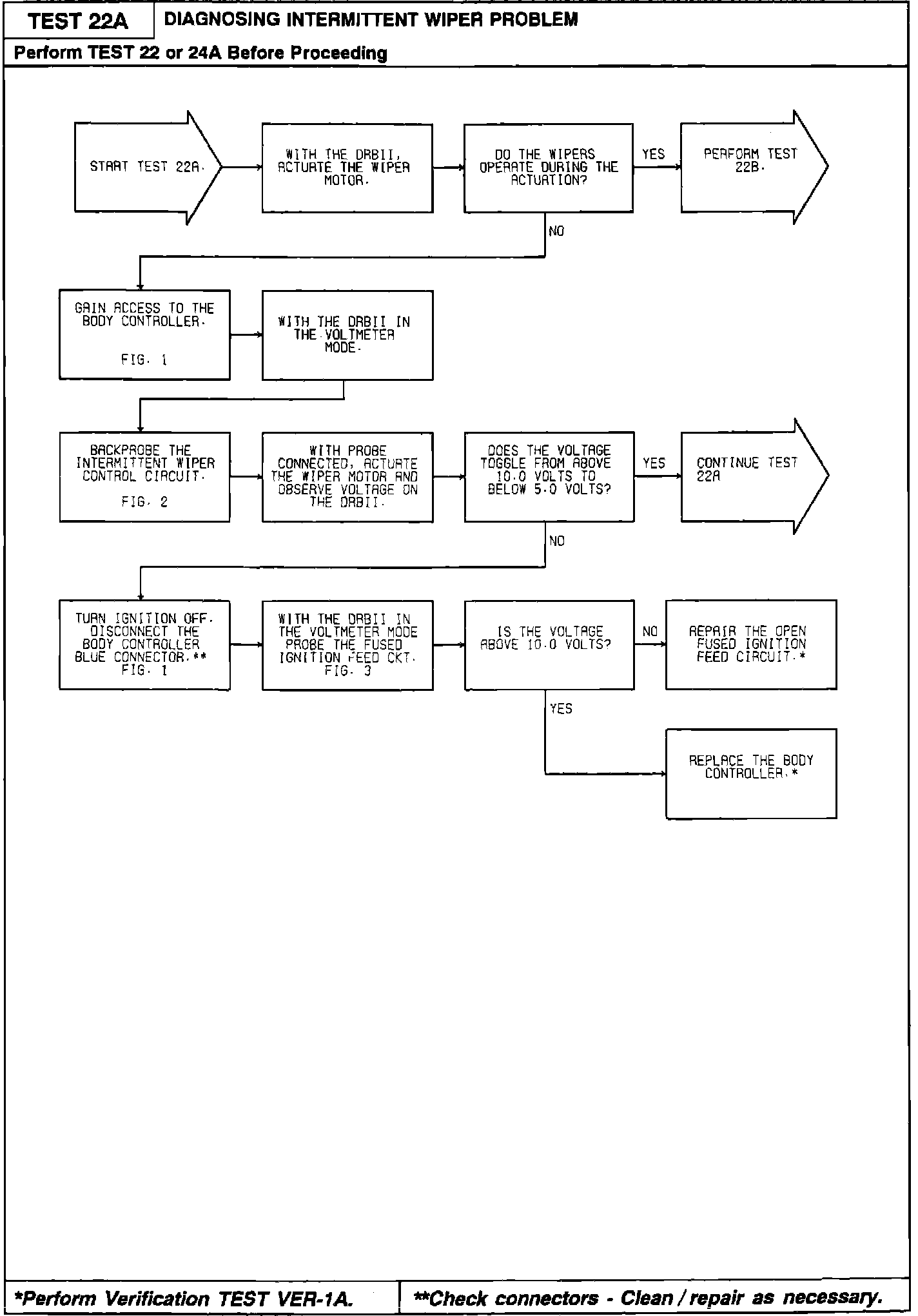

Test 22A - Diagnosing Intermittant Wiper Problems (Part 1 Of 2):



Test 22A - Diagnosing Intermittant Wiper Problems (Part 1 Of 2):

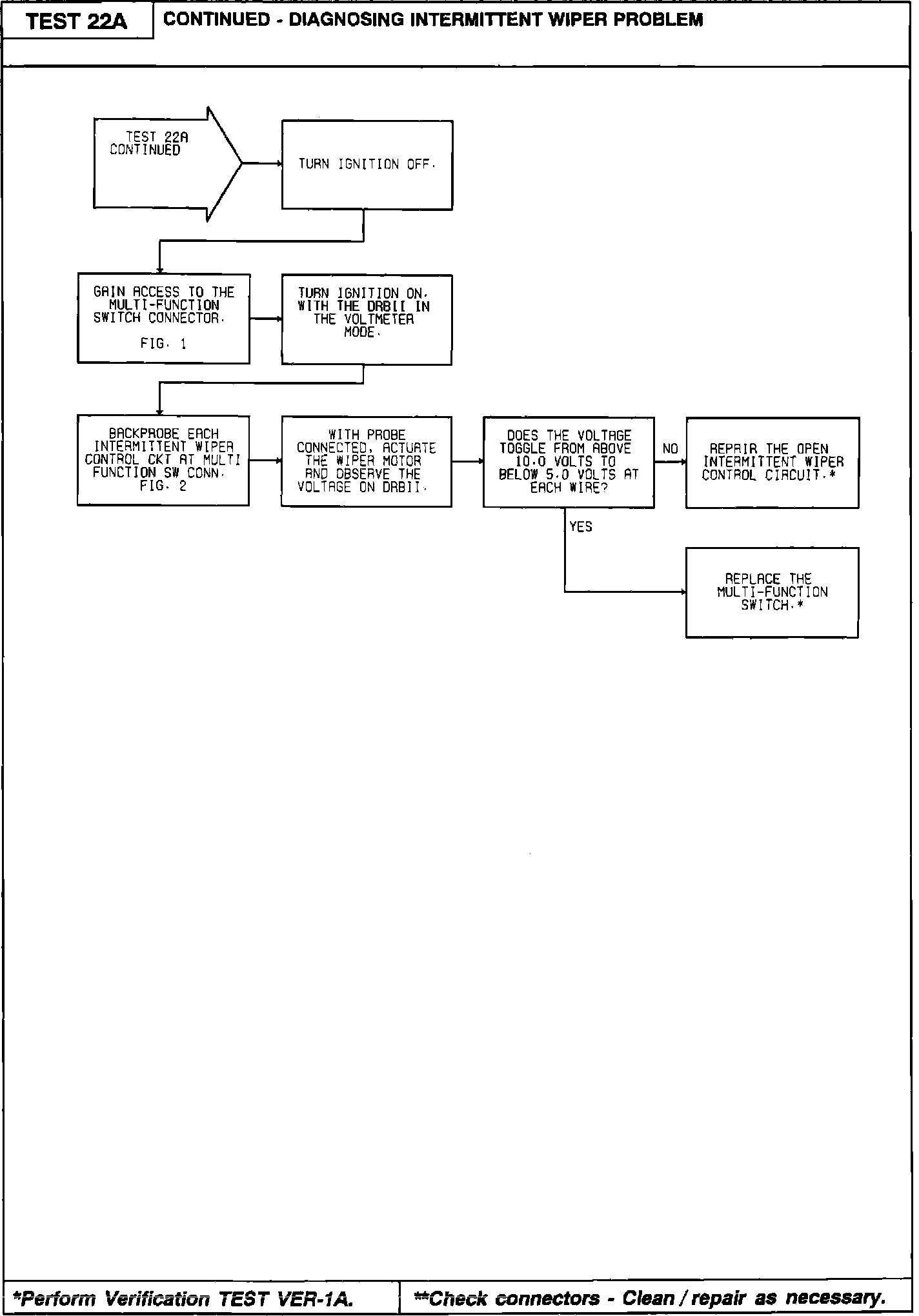

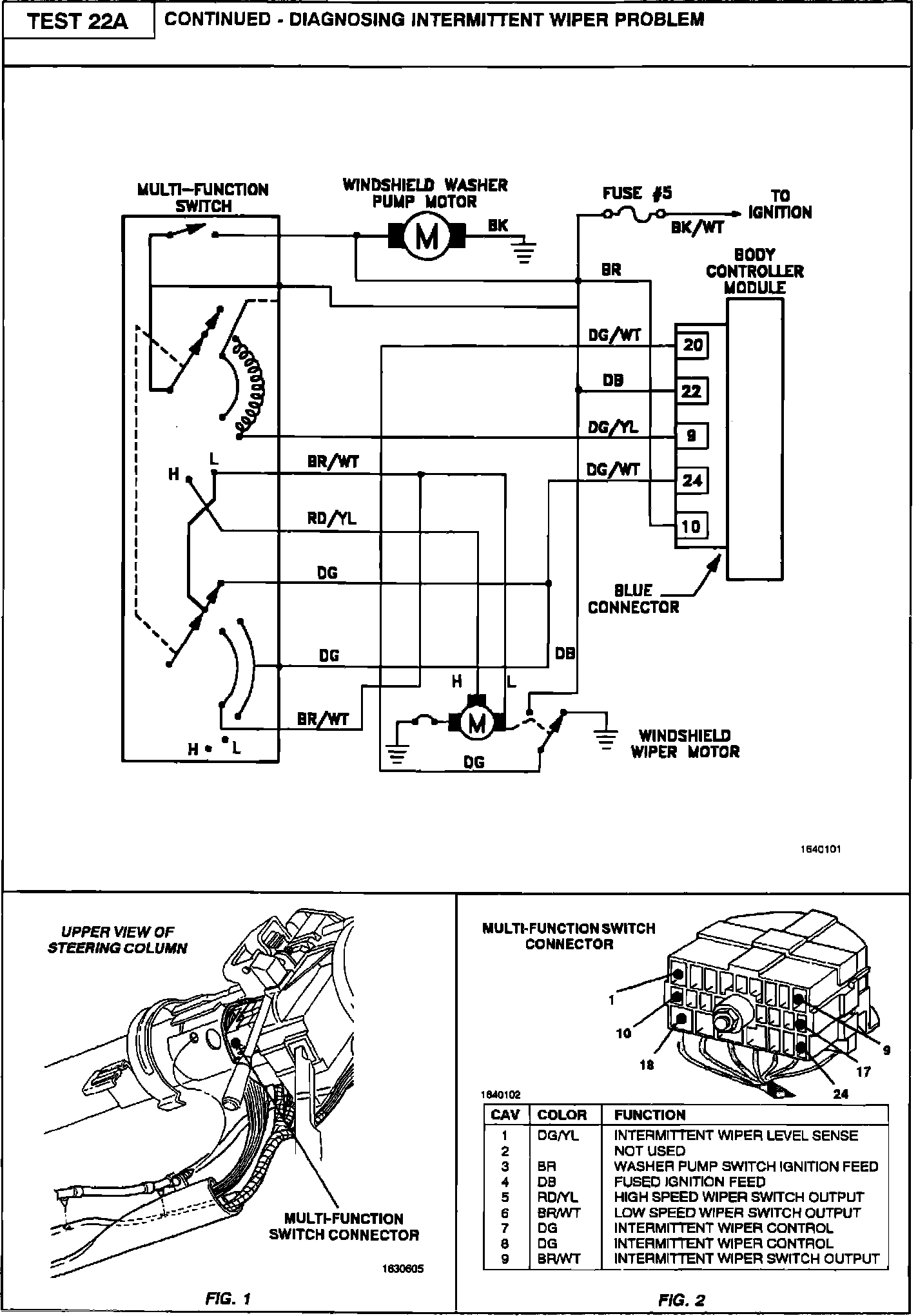

Test 22A - Diagnosing Intermittant Wiper Problems (Part 2 Of 2):



Test 22A - Diagnosing Intermittant Wiper Problems (Part 2 Of 2):
