Front Door Window Glass Weatherstrip: Service and Repair

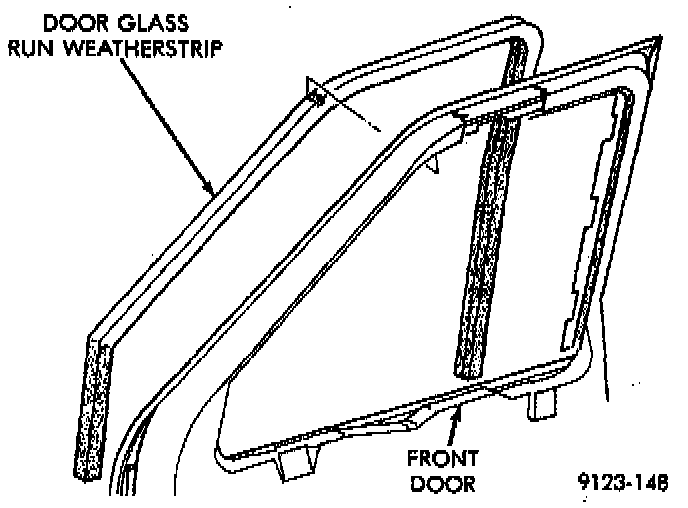

Glass Channel And Run Weatherstrip:





1. Lower door glass to down position.
2. Remove side view mirror as necessary to gain clearance for weatherstrip removal.
3. Pull glass run weatherstrip from door frame channel.
4. Reverse the preceding operation for installation.
