Dodge or Ram Truck
>>
1993
>>
Caravan AWD V6-201 3.3L
>>
Repair and Diagnosis
>>
Starting and Charging
>>
Charging System
>>
Testing and Inspection
>>
Non-Trouble Code Procedures
Non-Trouble Code Procedures

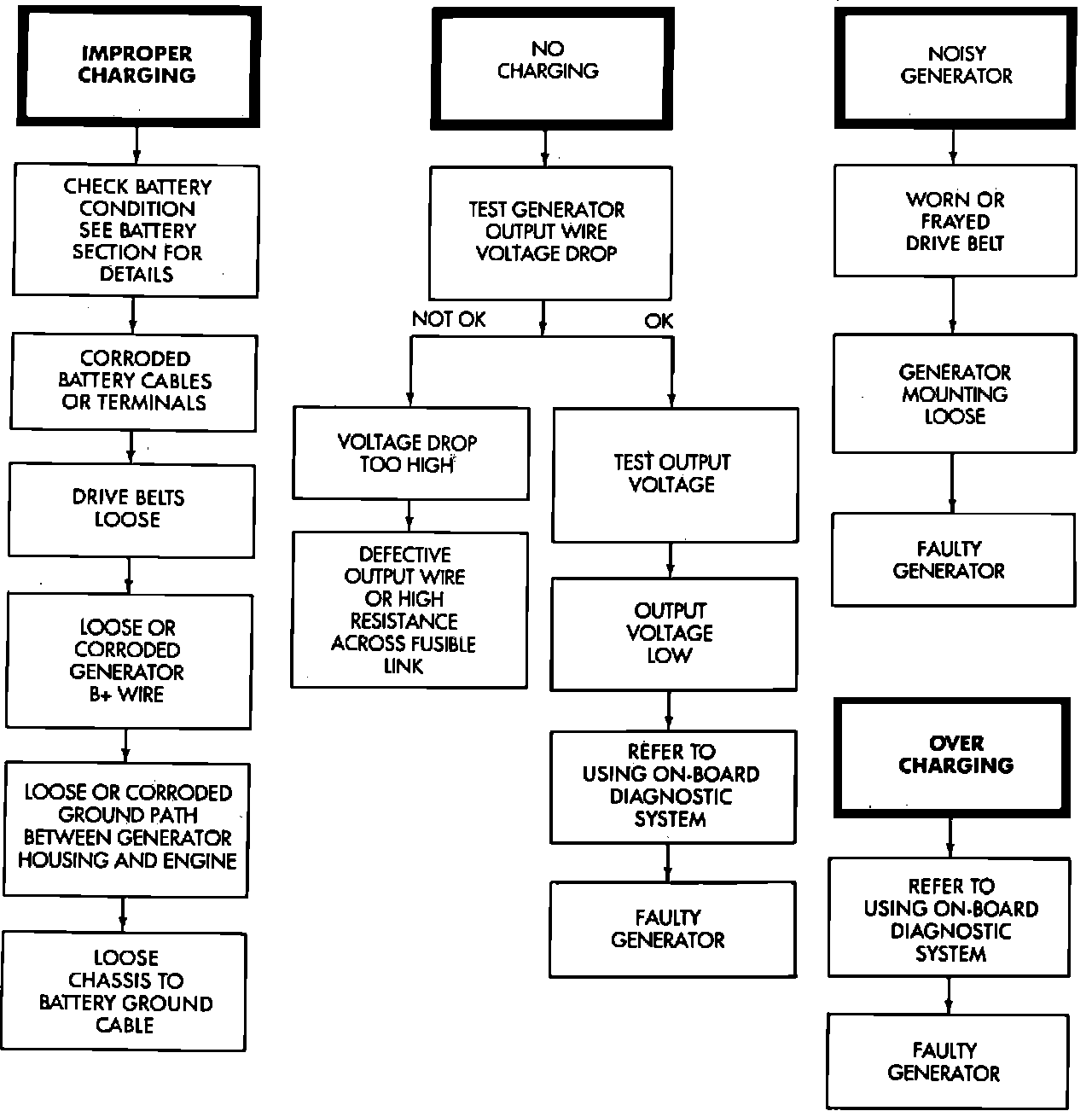

Charging System Diagnosis Chart:
