FREE REPAIR MANUALS & LABOR GUIDES 1982-2013 Vehicles
Courtesy of Operation CHARM
:
Car repair manuals for everyone.
Home
>>
Dodge or Ram Truck
>>
1993
>>
Caravan AWD V6-201 3.3L
>>
Repair and Diagnosis
>>
Starting and Charging
>>
Charging System
>>
Alternator
>>
Diagrams
>>
Connector Views
Connector Views

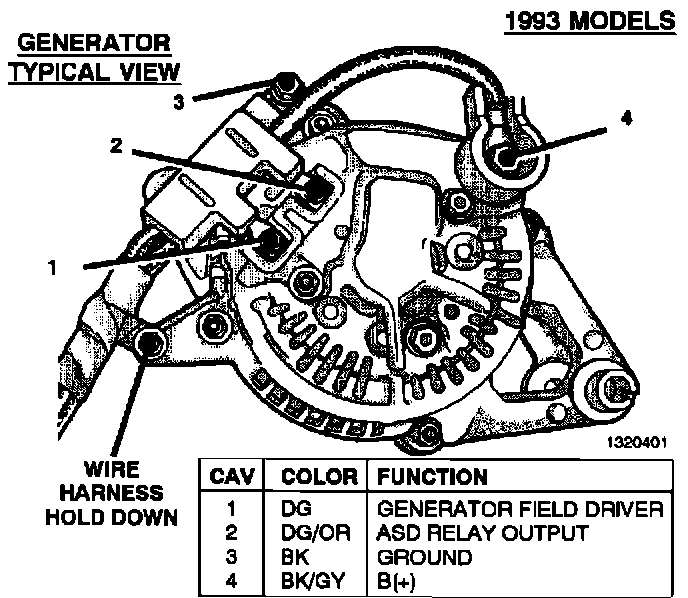

Generator Connections:

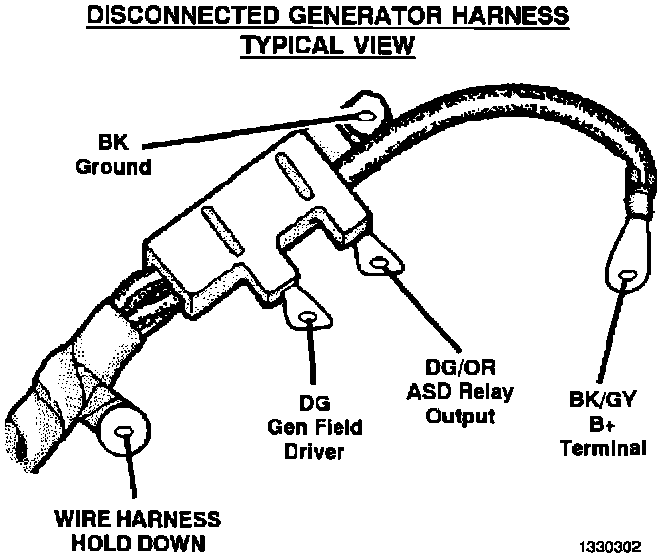

Generator Connections:
