Home >> Dodge or Ram Truck >> 1993 >> Caravan AWD V6-201 3.3L >> Repair and Diagnosis >> Powertrain Management >> Transmission Control Systems >> Diagrams >> Electrical Diagrams >> Part 4 of 4 - (Starter Rly, VSS, TPS, Turbine Speed Sensor)

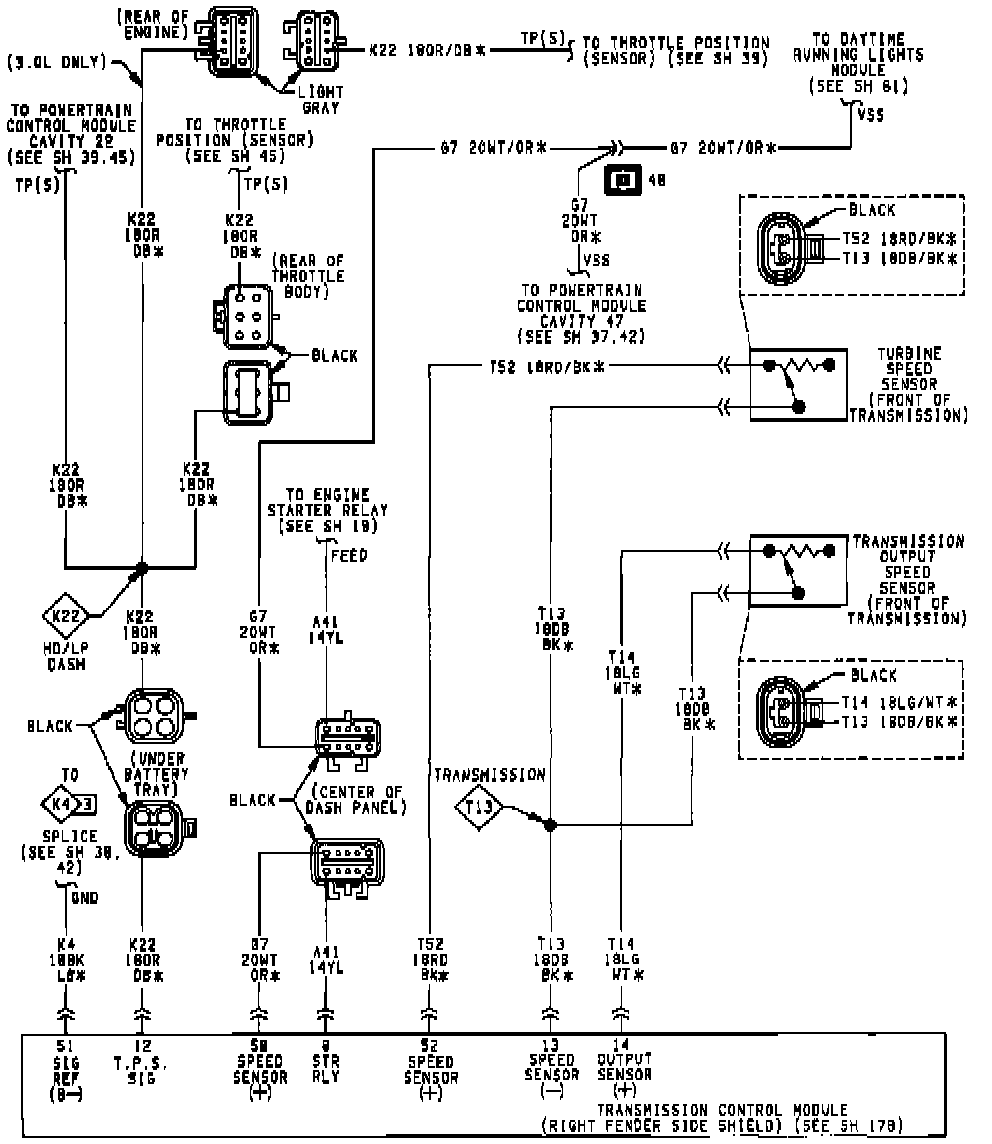

Part 4 of 4 - (Starter Rly, VSS, TPS, Turbine Speed Sensor)
