Home >> Dodge or Ram Truck >> 1993 >> Caravan AWD V6-201 3.3L >> Repair and Diagnosis >> Powertrain Management >> Transmission Control Systems >> Diagrams >> Electrical Diagrams >> Part 2 of 4 - (Shutdown Rly, CKP, Grounds, ASD/Fuel Pump Rly)

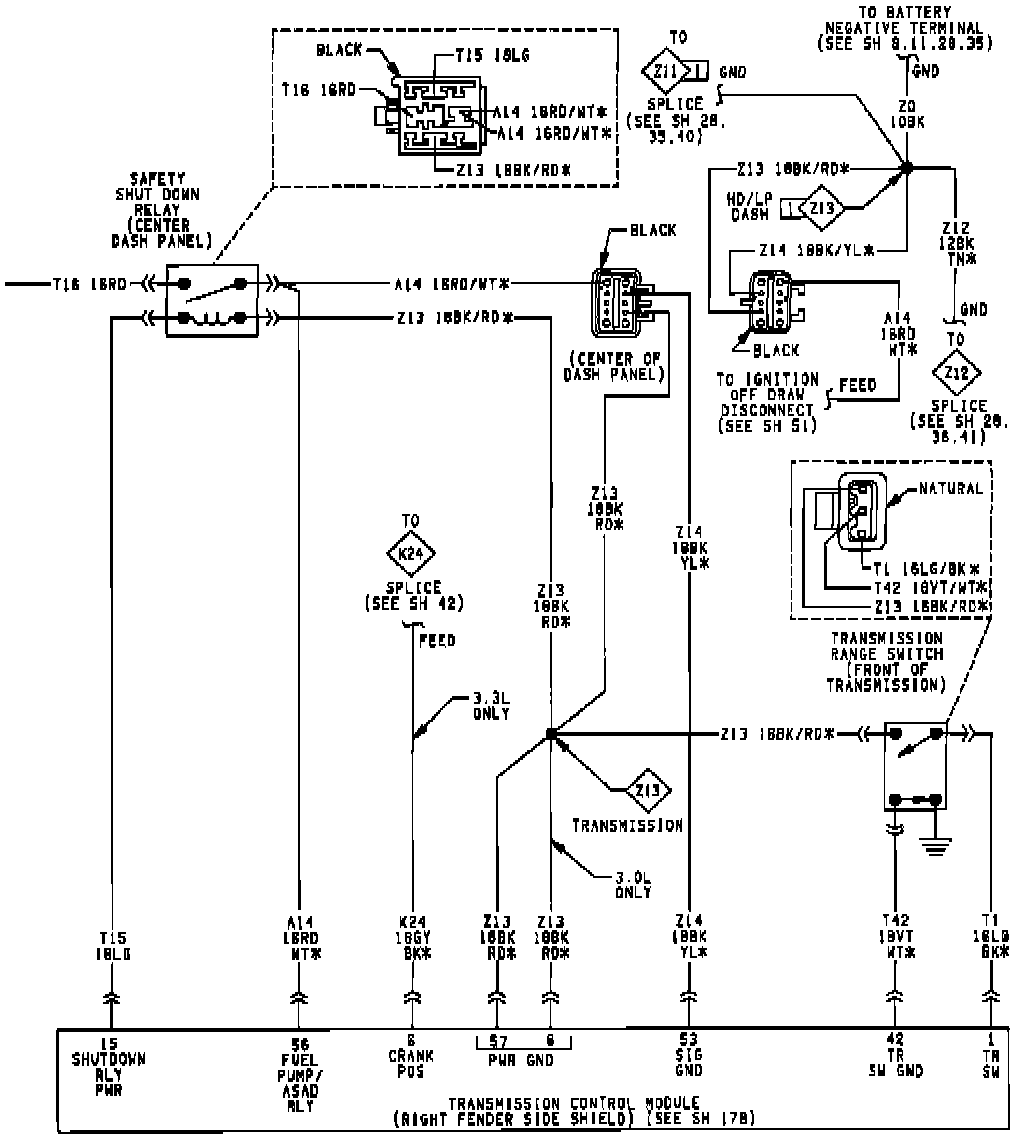

Part 2 of 4 - (Shutdown Rly, CKP, Grounds, ASD/Fuel Pump Rly)
