Home >> Dodge or Ram Truck >> 1993 >> Caravan AWD V6-201 3.3L >> Repair and Diagnosis >> Powertrain Management >> Transmission Control Systems >> Diagrams >> Electrical Diagrams >> Part 1 of 4 - (Transmission Solenoids and LR Prs Switch)

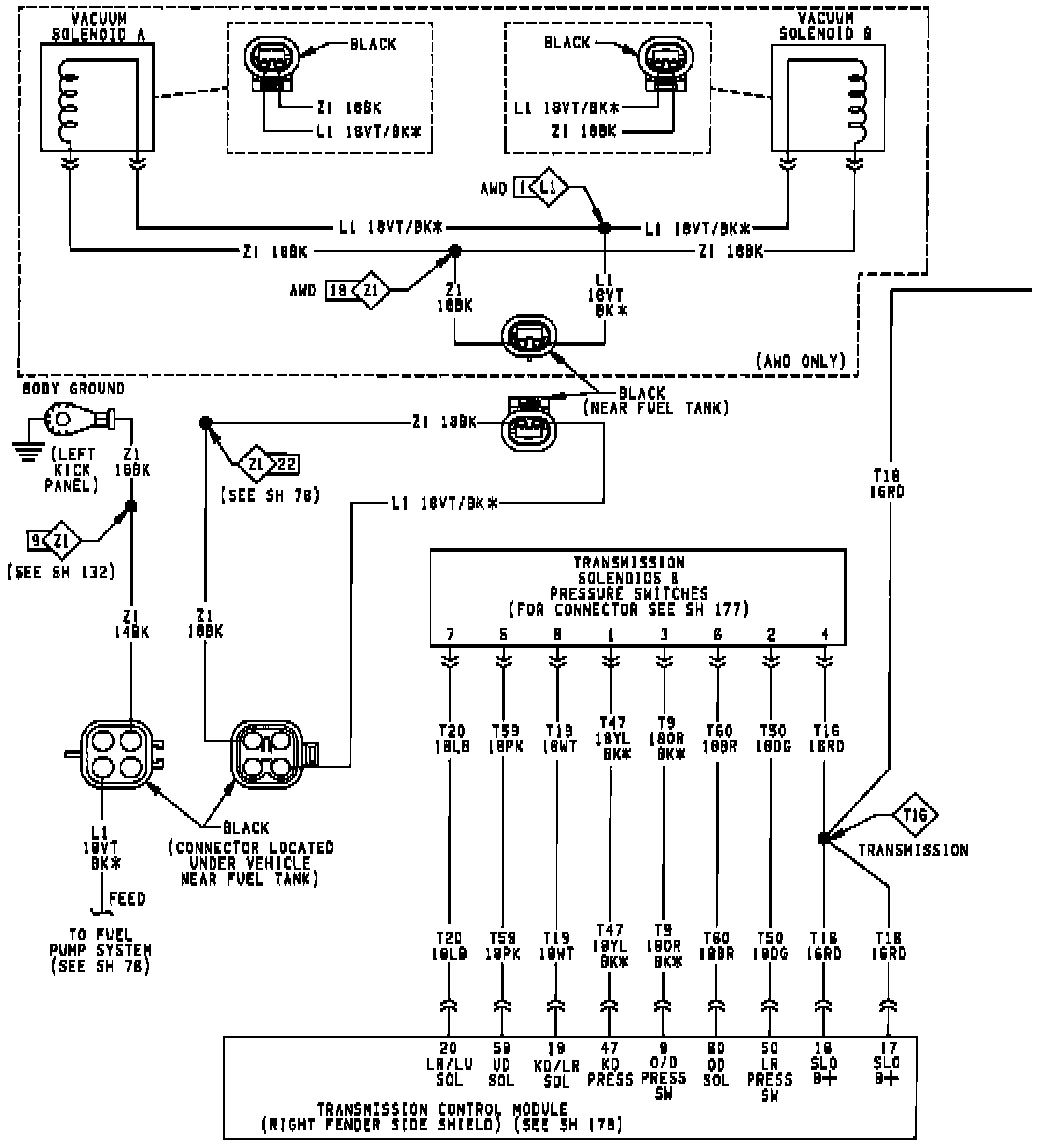

Part 1 of 4 - (Transmission Solenoids and LR Prs Switch)
