Home >> Dodge or Ram Truck >> 1993 >> Caravan AWD V6-201 3.3L >> Repair and Diagnosis >> Powertrain Management >> Computers and Control Systems >> Sensors and Switches - Computers and Control Systems >> Oxygen Sensor >> Locations >> Component Locations

Component Locations

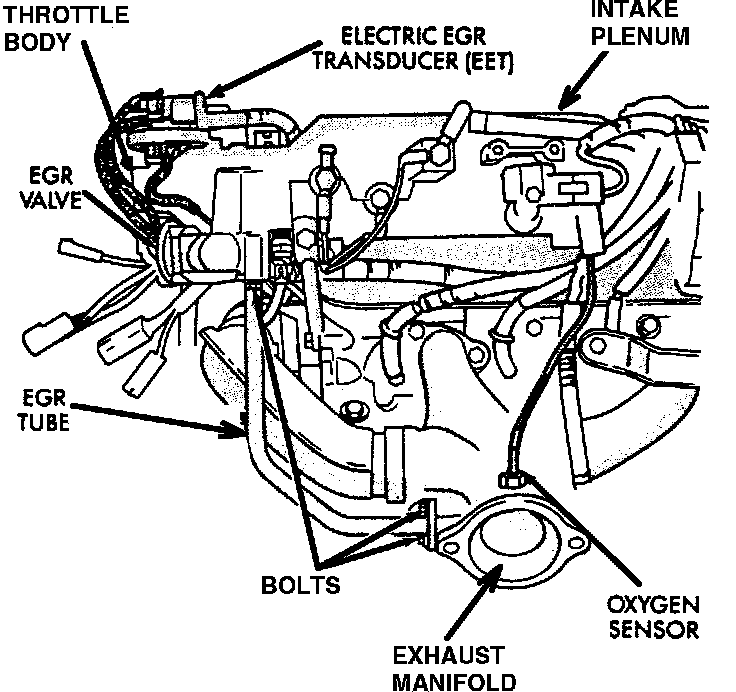

EGR Mounting:





Sensor threaded into exhaust manifold, just above flange.
