Removal and Installation

REMOVAL
1. Disconnect battery negative cable, remove engine oil dipstick.
2. Raise vehicle. Drain engine-oil.

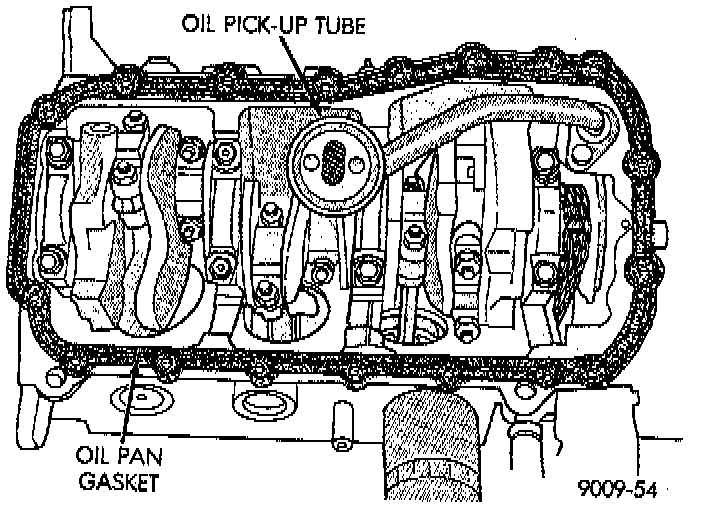

3. Remove oil pan screws and remove oil pan.

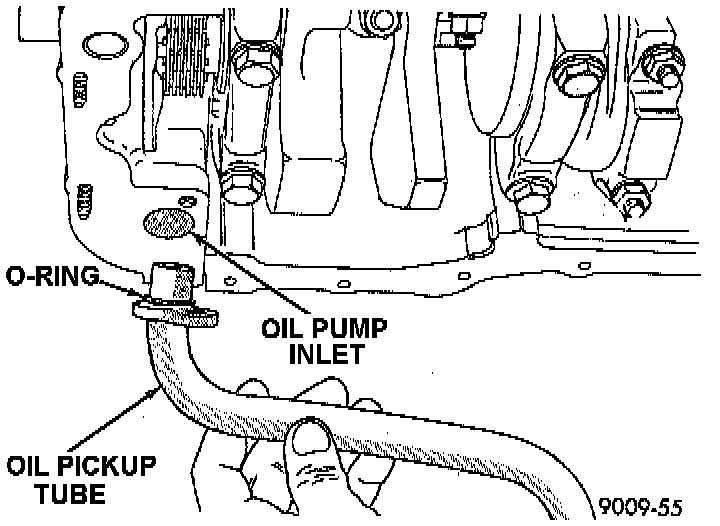

4. Remove screw for oil pick-up tube and remove pick-up tube.

INSTALLATION





1. Install oil pick-up tube into Chain Case Cover tighten screw to 28 Nm (250 inch lbs.).





2. Apply a 1/8 inch bead of Mopar (R) Silicone Rubber Adhesive Sealant or equivalent, at the parting line of the chain case cover and the rear seal retainer.





3. Use a new pan gasket.
4. Install pan and tighten screws to 12 Nm (105 inch lbs.).
5. Lower vehicle and install oil dipstick.
6. Connect battery negative cable.
7. Fill crankcase with oil to proper level.
