Home >> Dodge or Ram Truck >> 1993 >> Caravan AWD V6-201 3.3L >> Repair and Diagnosis >> Diagrams >> Mechanical Diagrams >> Brakes and Traction Control >> System Diagram >> Chassis Brake Line Routing

Chassis Brake Line Routing

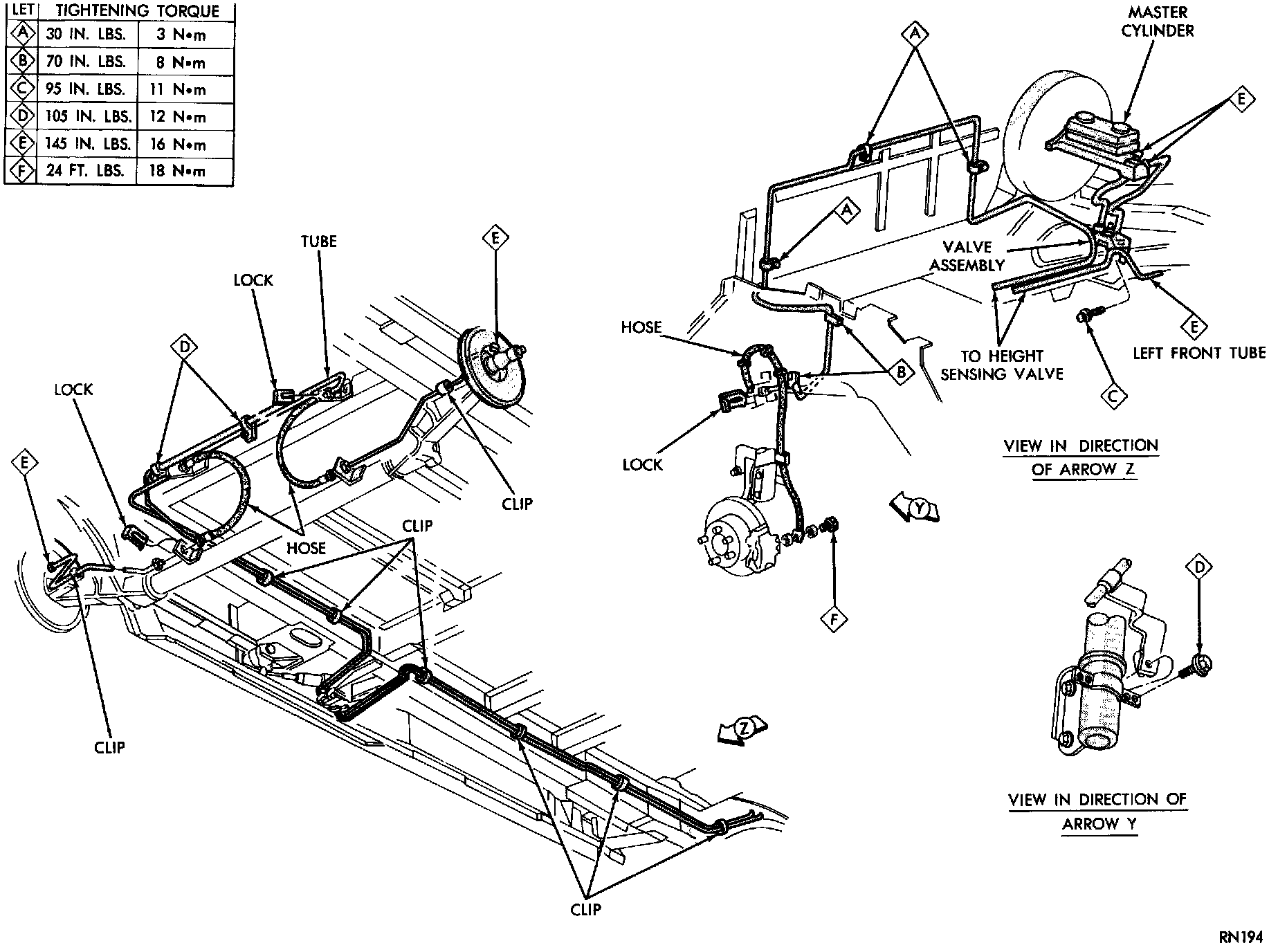

Brake Line Routing:

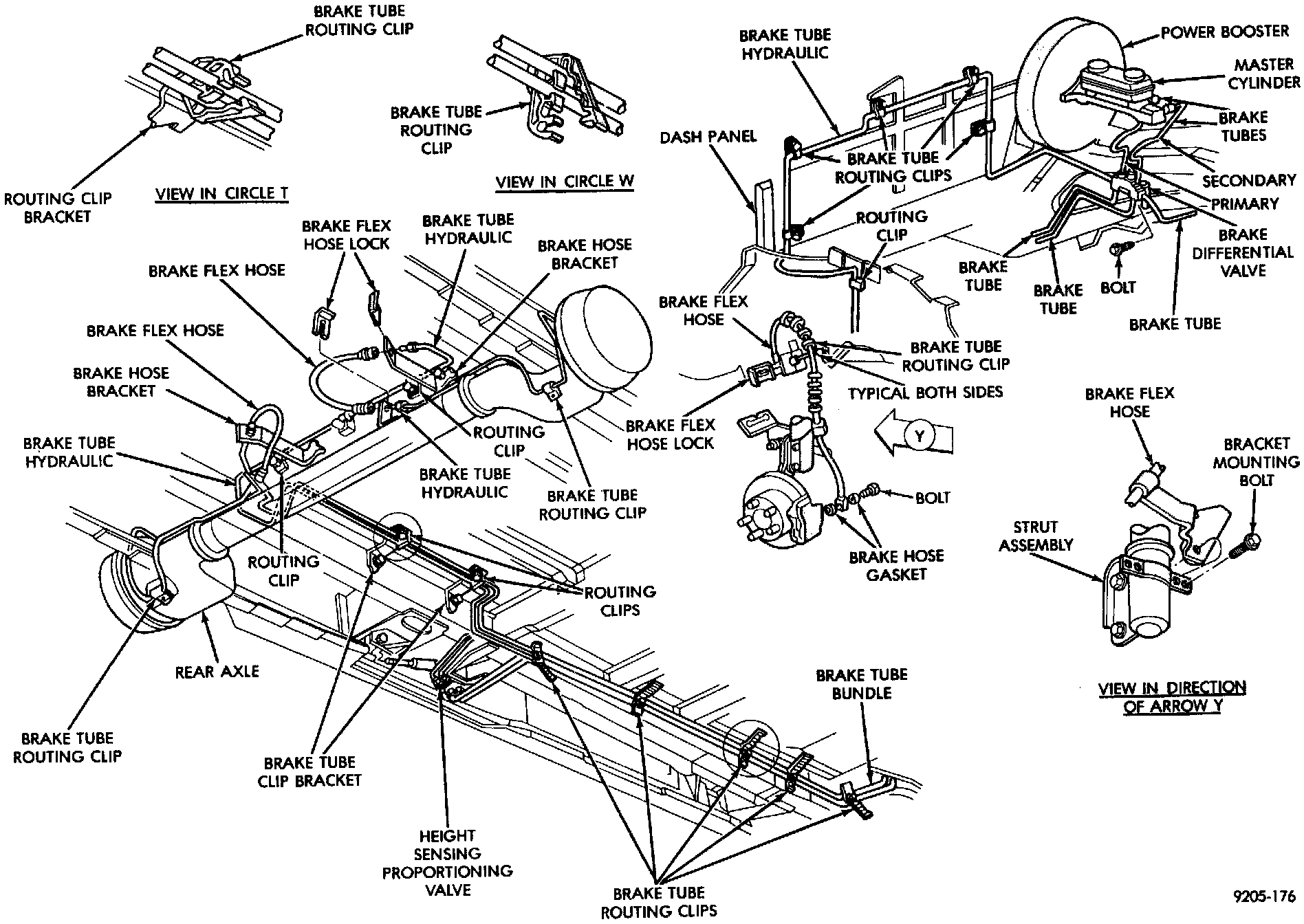

Brake Line Routing:
