Home >> Dodge or Ram Truck >> 1993 >> Caravan AWD V6-201 3.3L >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Starting and Charging >> System Diagram

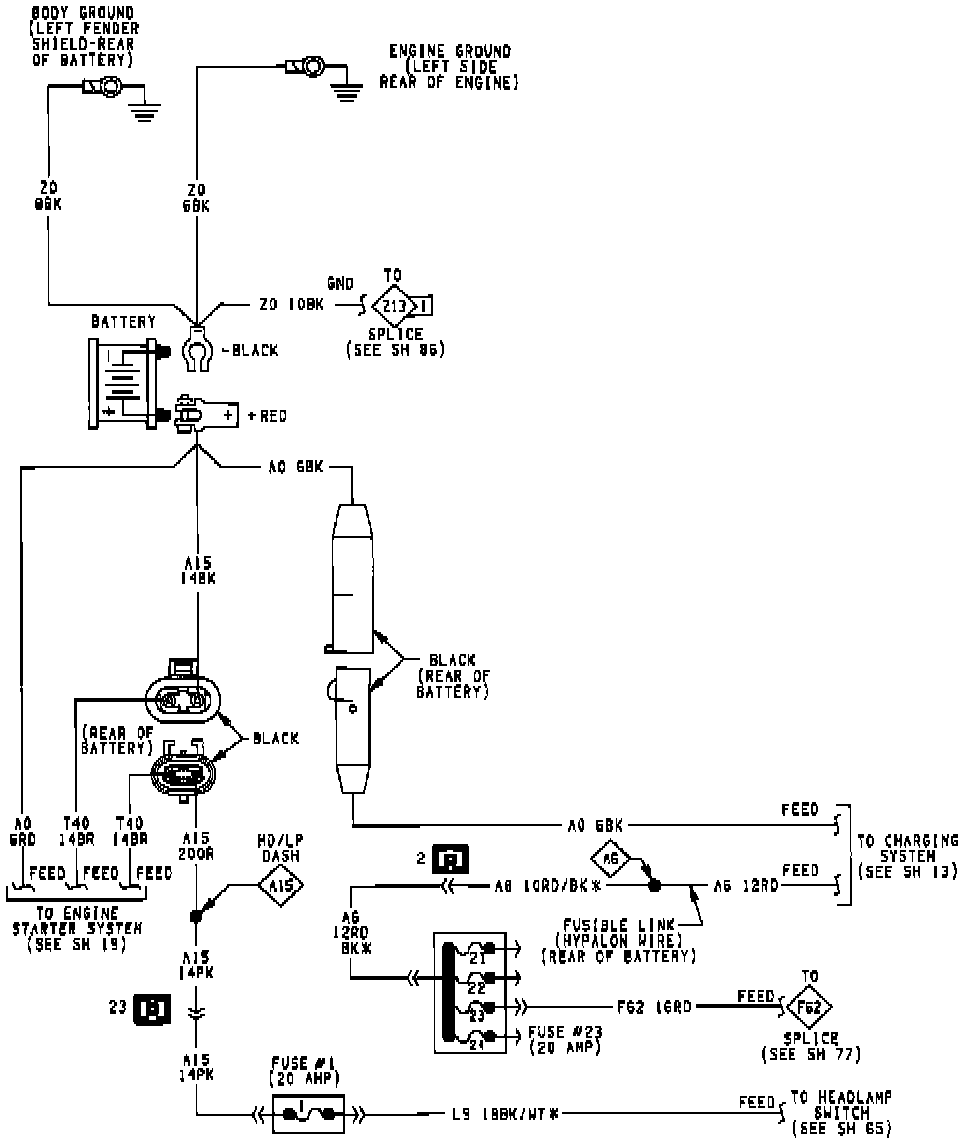

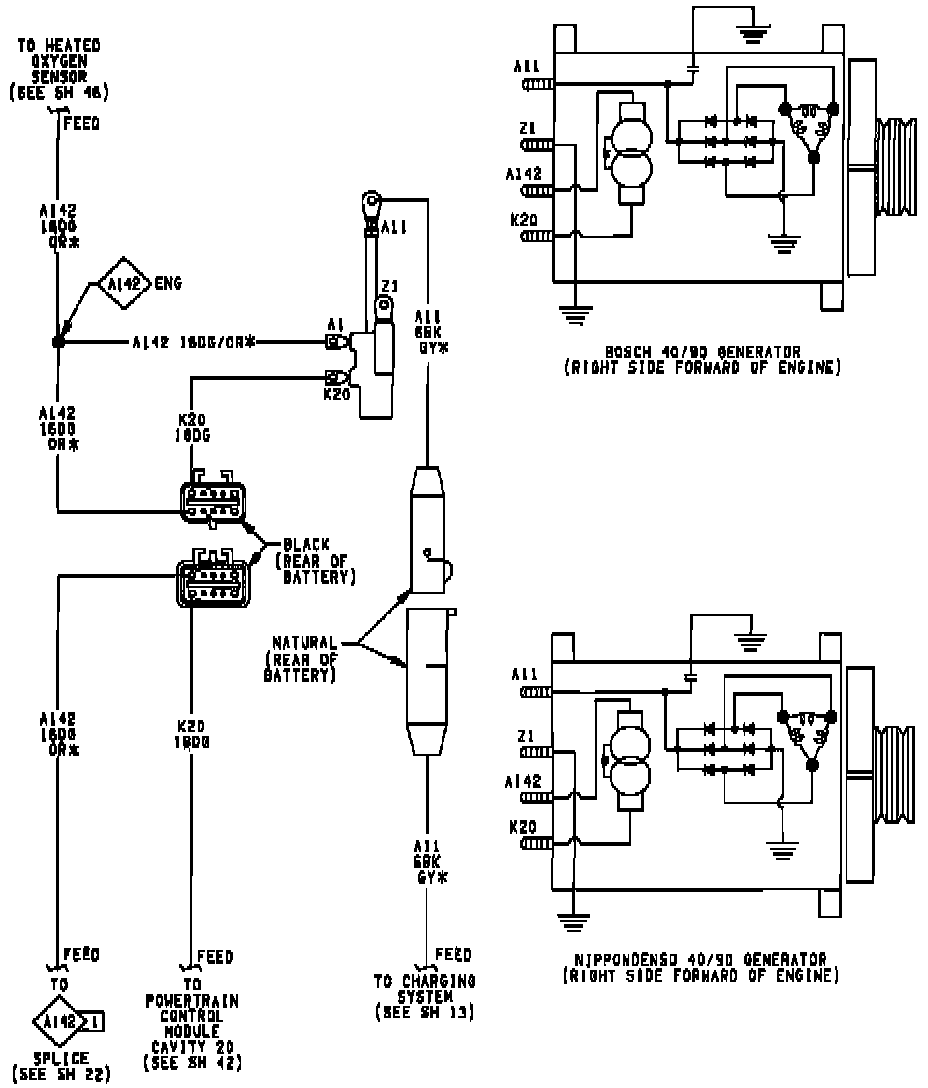

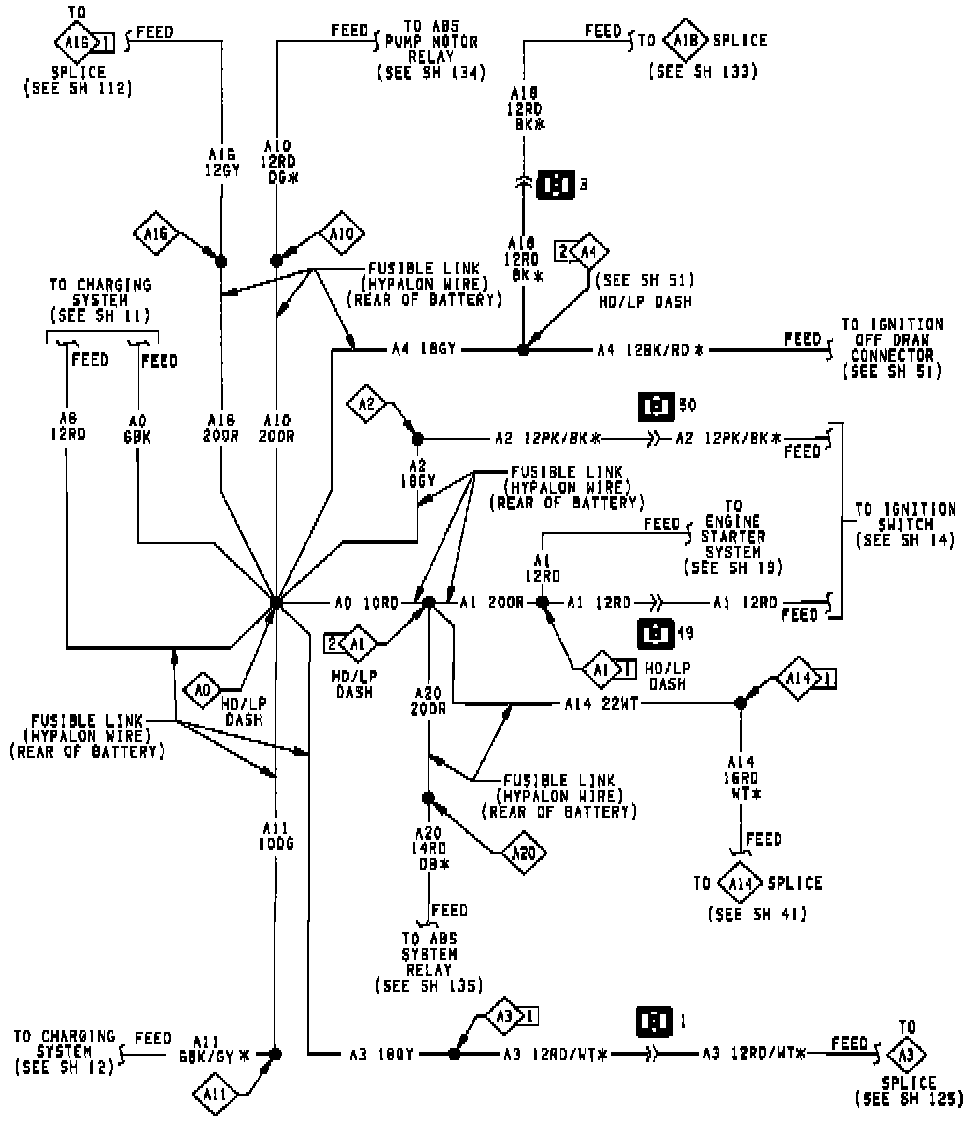

System Diagram

3.3L Engine:

3.3L Engine:

3.3L Engine:
