Home >> Dodge or Ram Truck >> 1993 >> Caravan AWD V6-201 3.3L >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Powertrain Management >> System Diagram >> Part 7 of 7 - (MAP Sensor and O2 Sensor)

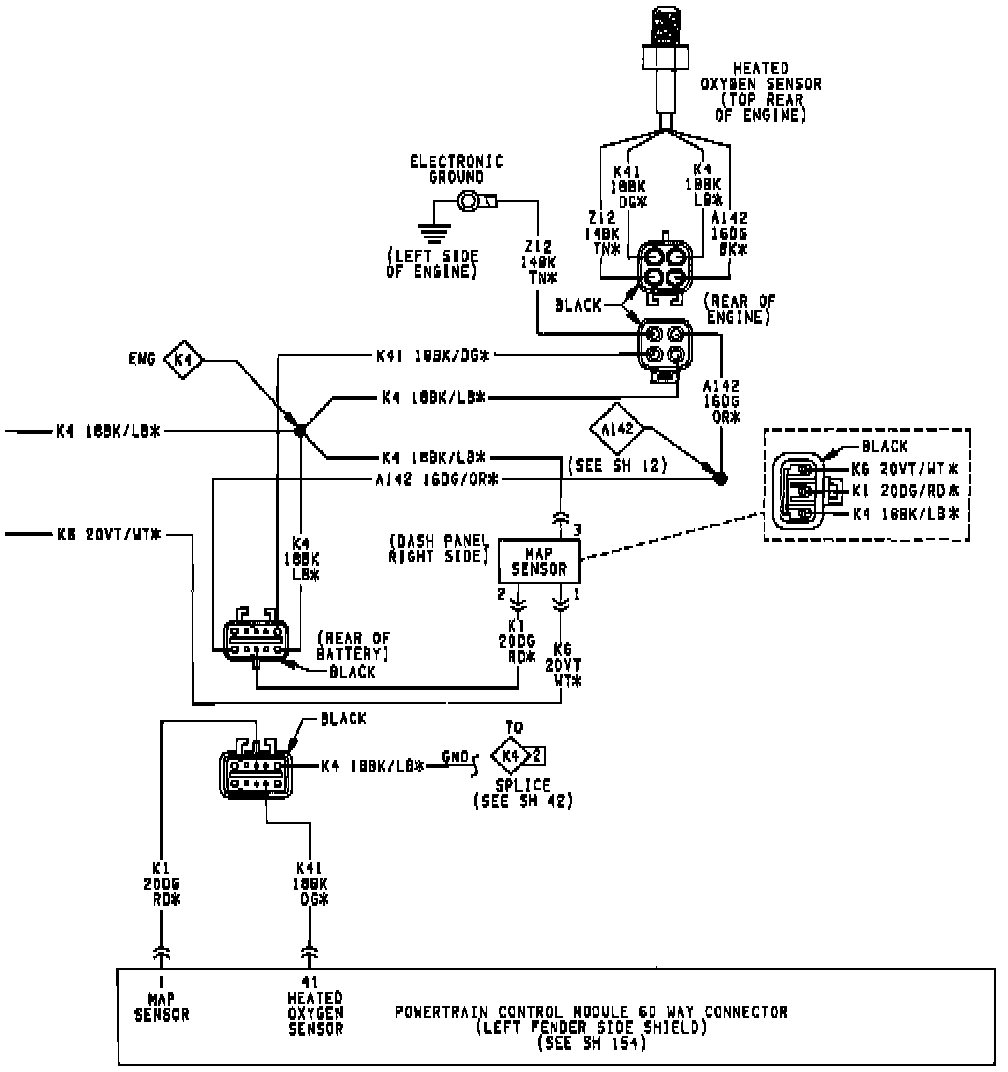

Part 7 of 7 - (MAP Sensor and O2 Sensor)

3.3L Engine:
