Dodge or Ram Truck
>>
1993
>>
Caravan AWD V6-201 3.3L
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Instrument Panel, Gauges and Warning Indicators
>>
System Diagram
>>

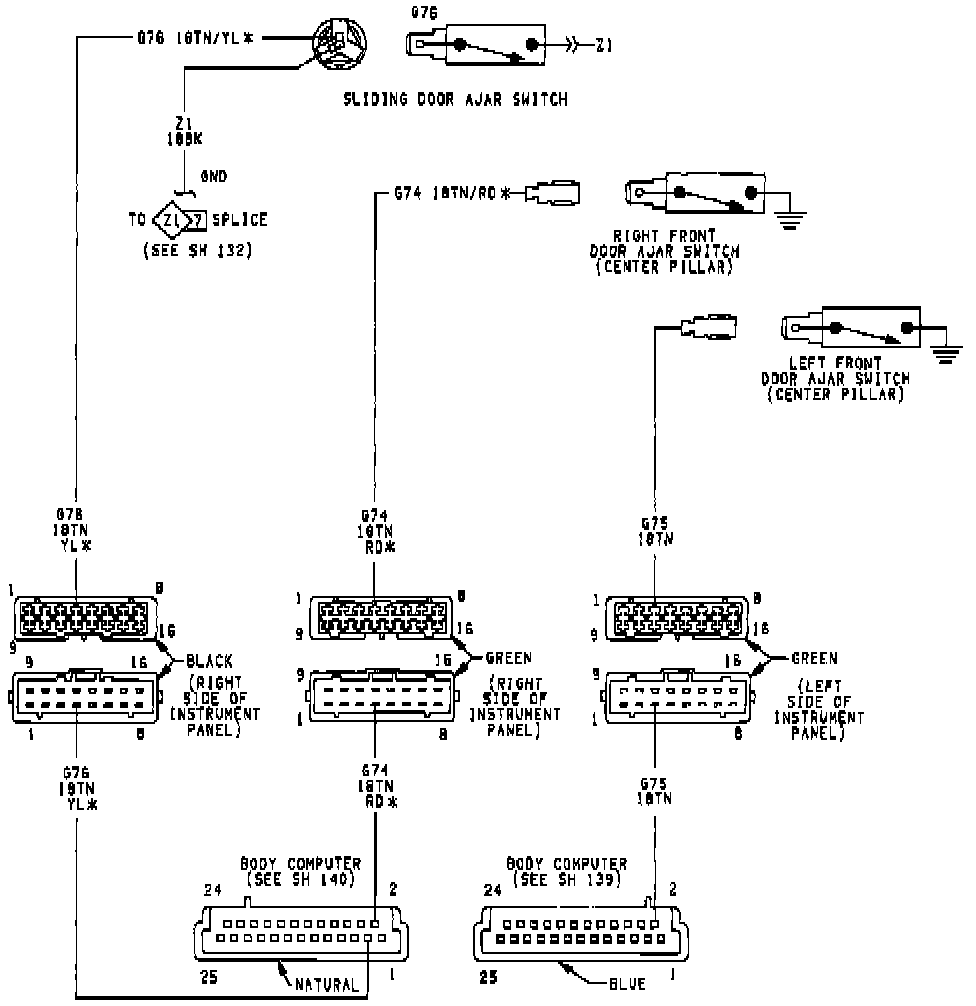

Door and Decklid Ajar Warning System
Door and Decklid Ajar Warning System
