Home >> Dodge or Ram Truck >> 1993 >> Caravan AWD V6-201 3.3L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Power and Ground Distribution >> Multiple Junction Connector >> Bulkhead Disconnect

Bulkhead Disconnect

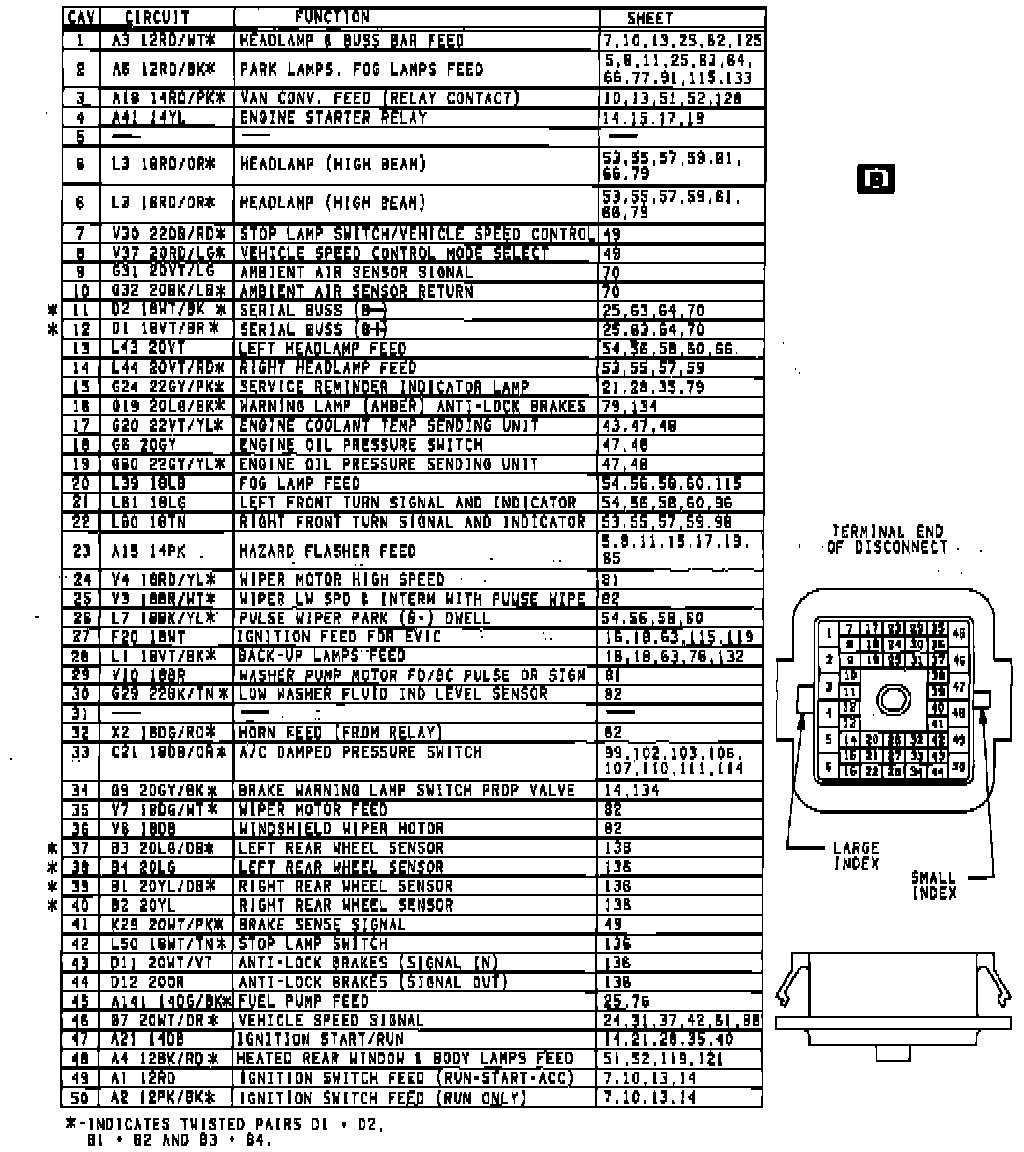

Bulkhead Disconnect:

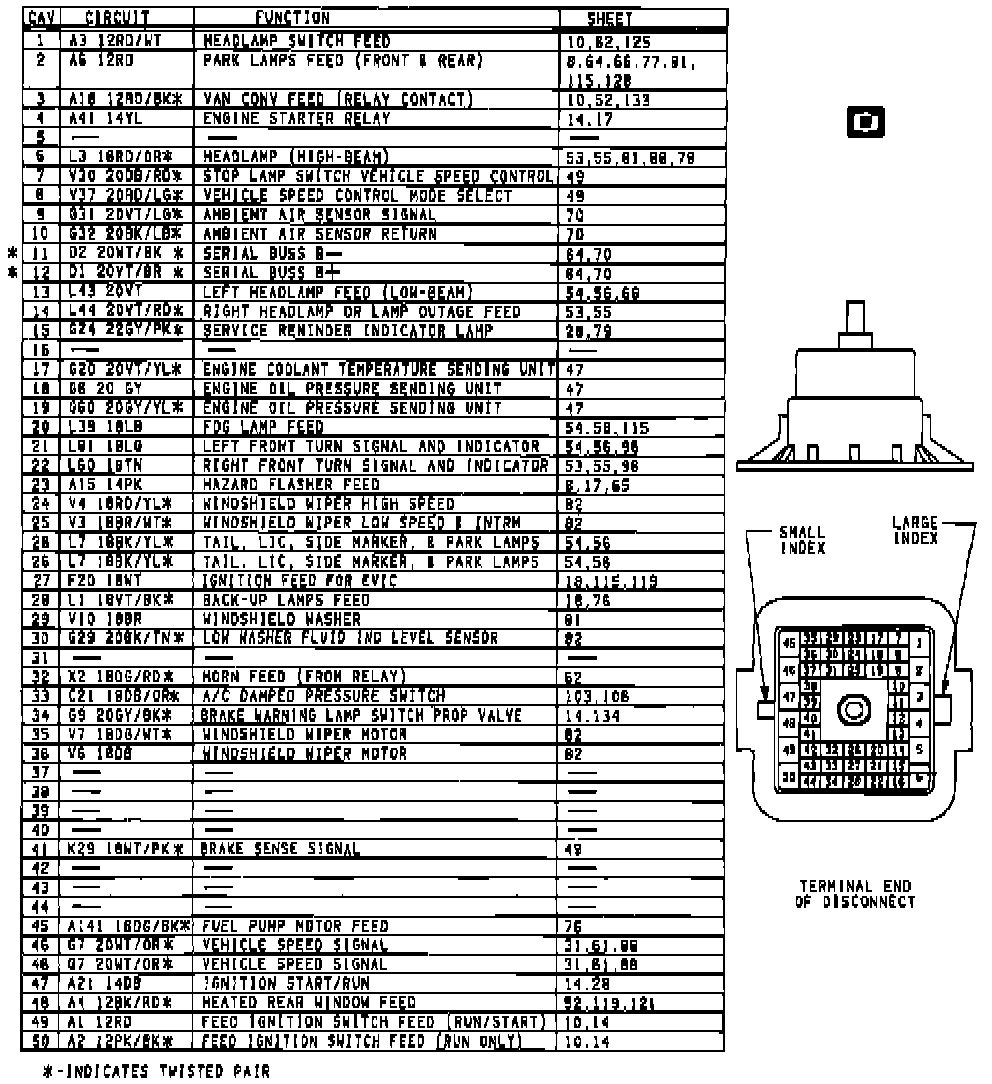

2.5L Engine:

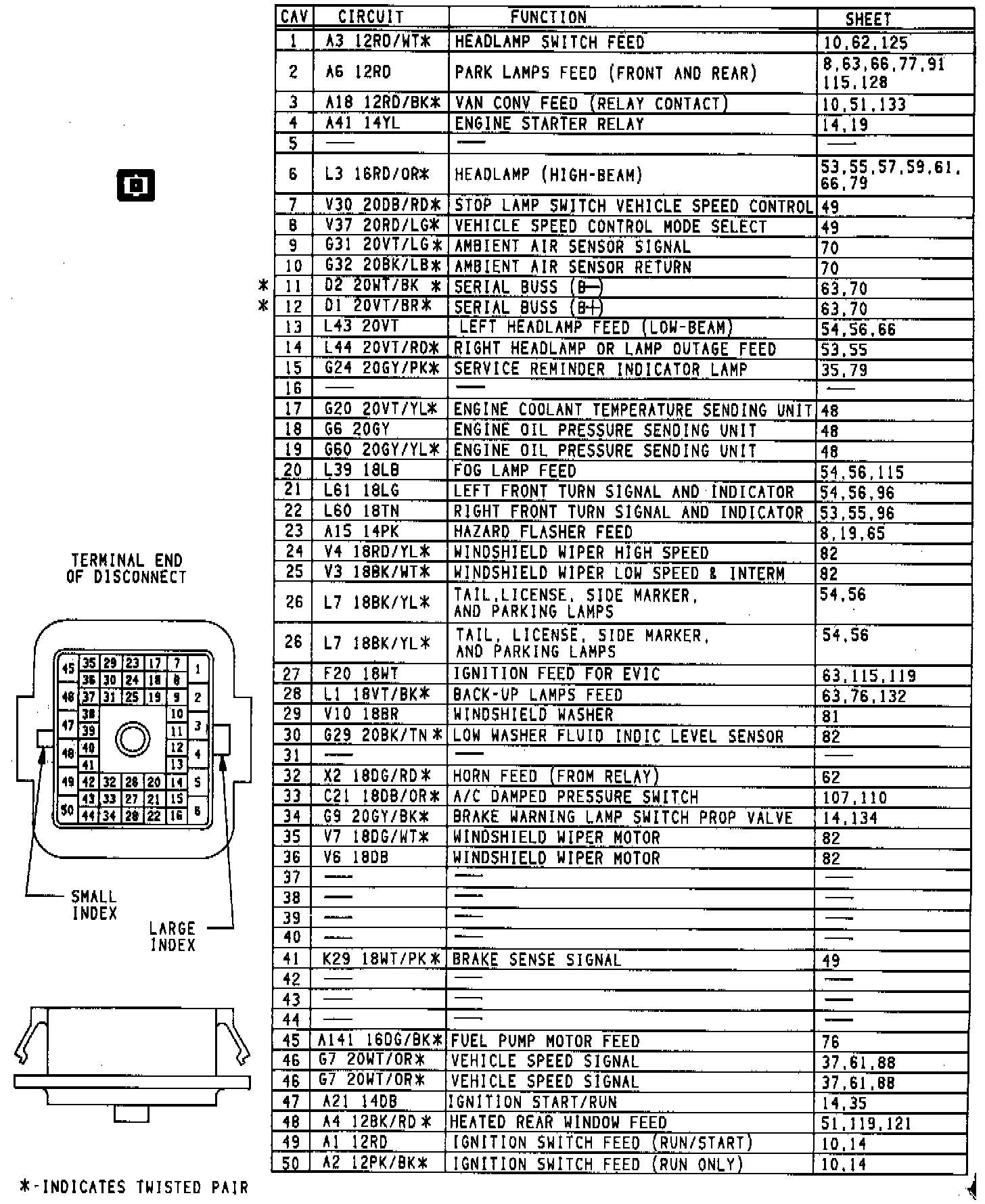

3.0L Engine:

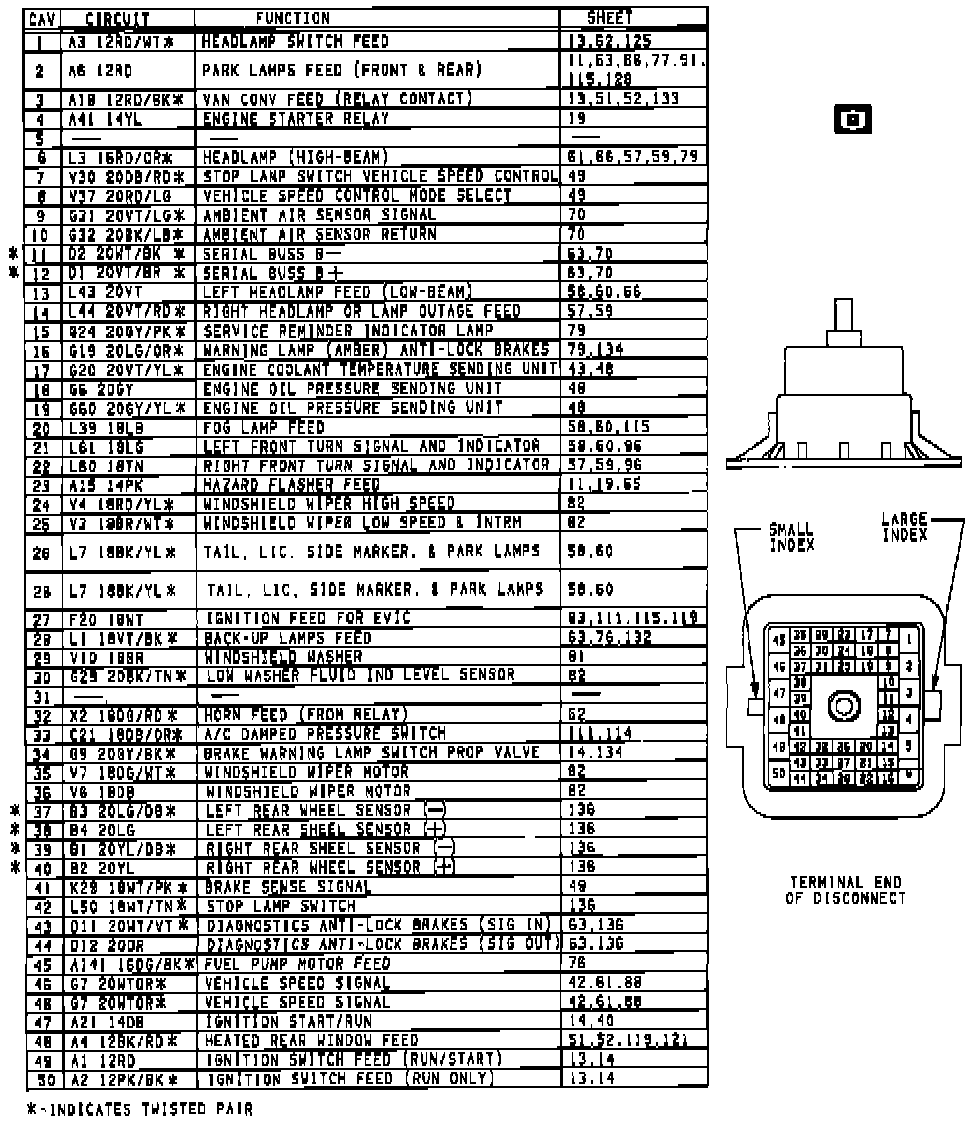

3.0L Engine:

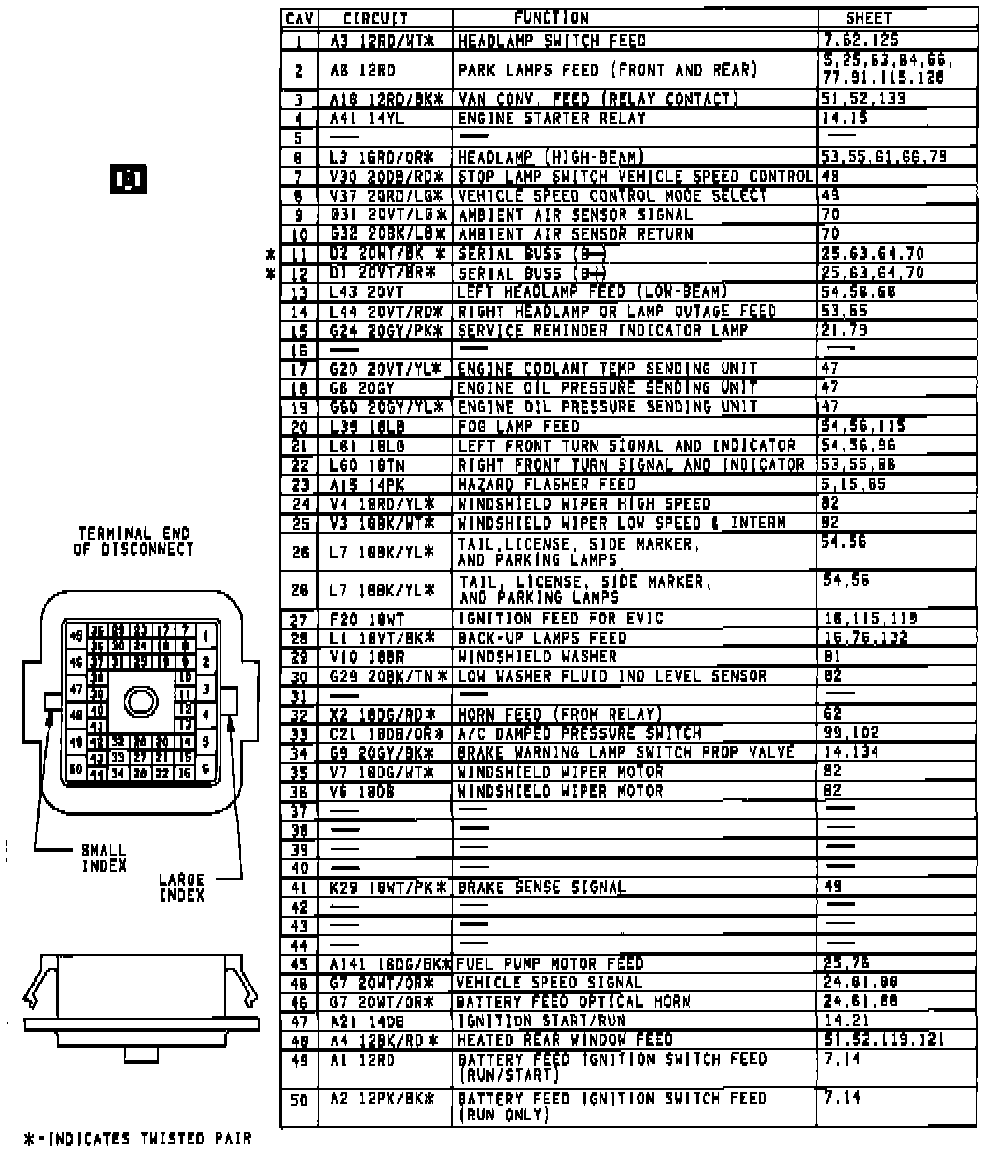

Bulkhead Disconnect, 3.3L Engine:
