Windshield Wiper and Washer System
>>

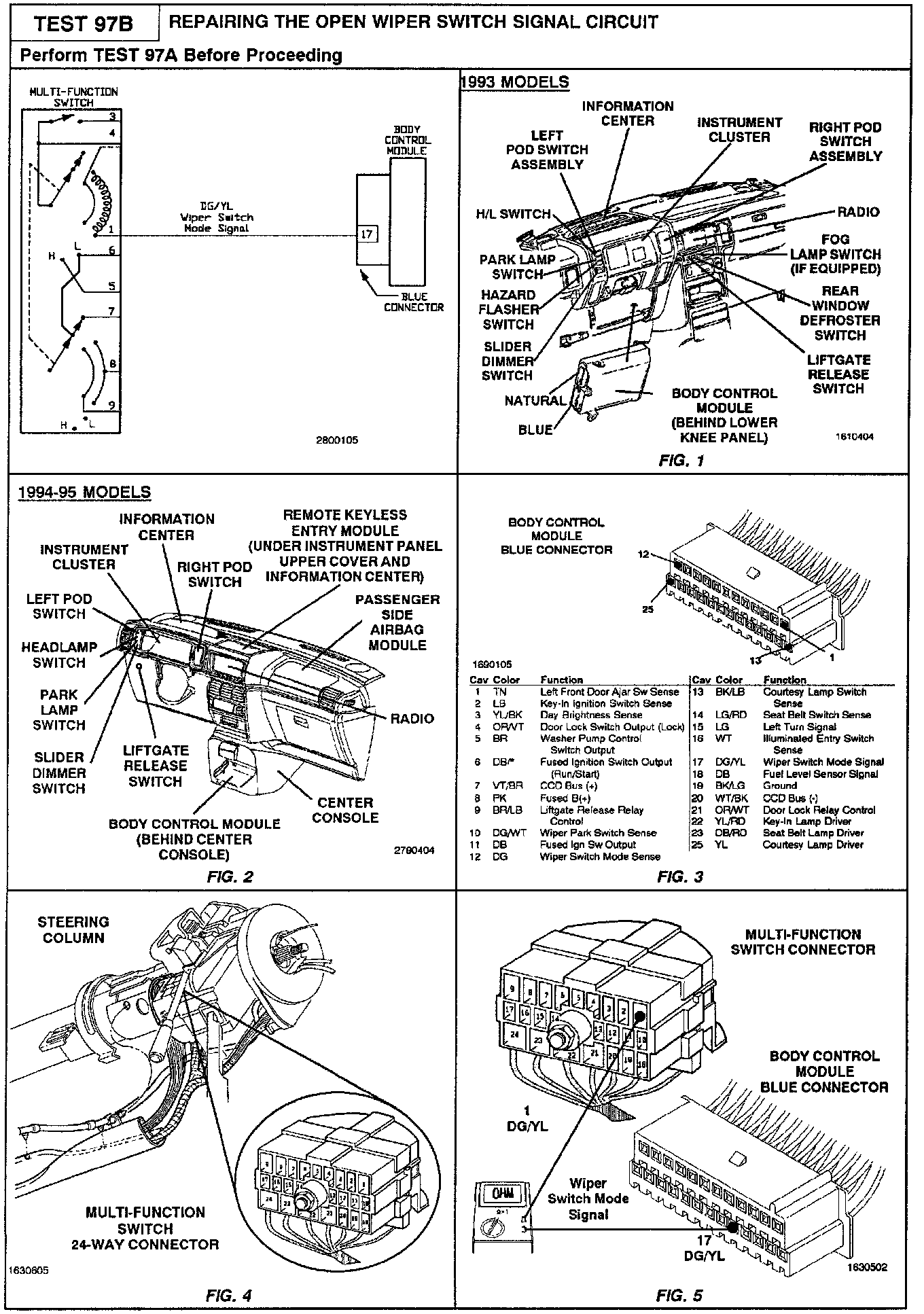

97B Open Wiper Switch Signal Circuit
97B Open Wiper Switch Signal Circuit

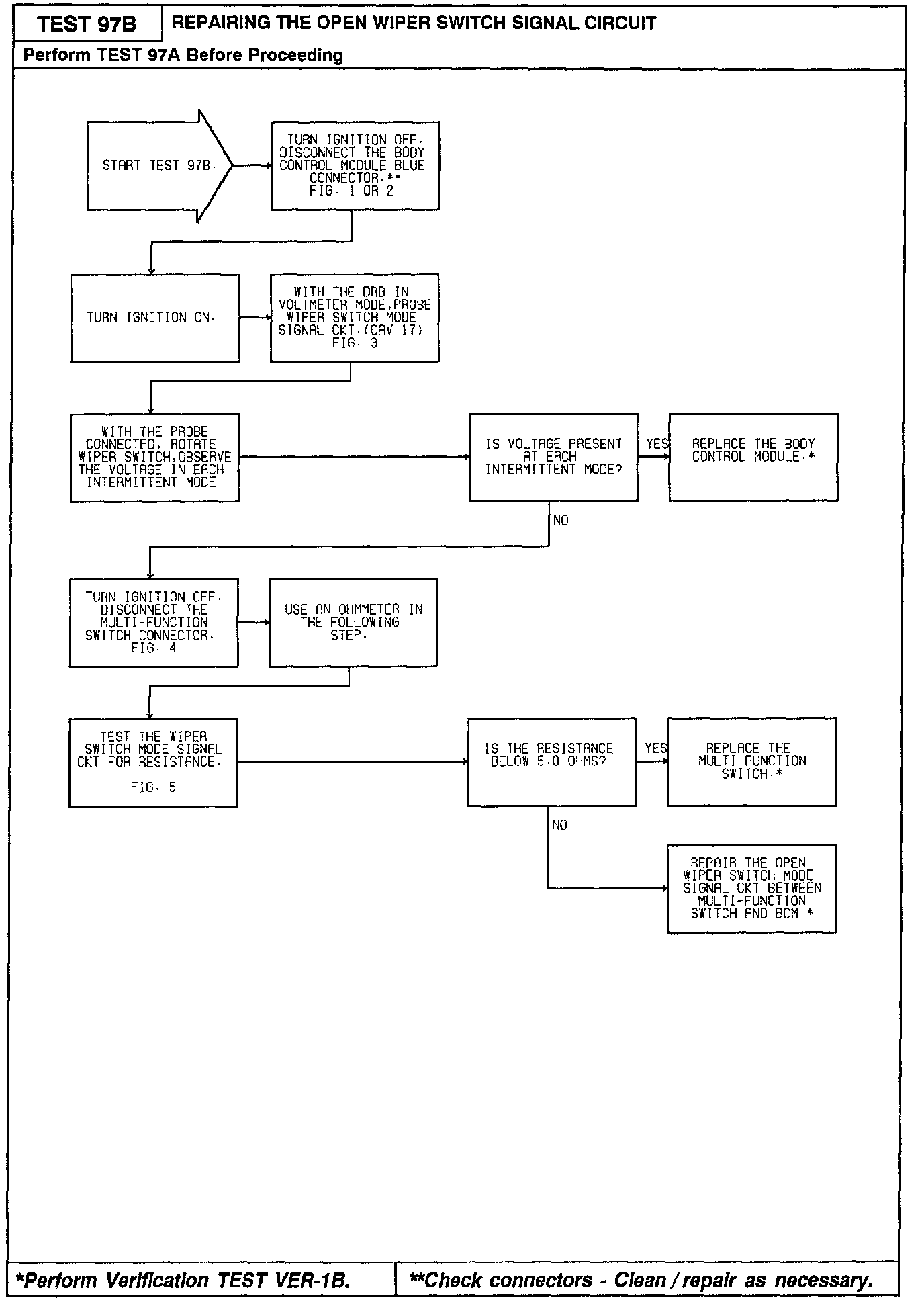

Diagnostic Chart:
Related Images:
