Home >> Dodge or Ram Truck >> 1993 >> Caravan AWD V6-201 3.3L >> Repair and Diagnosis >> A L L Diagnostic Trouble Codes ( DTC ) >> Testing and Inspection >> Manufacturer Code Charts >> Trouble Code (TC) Tests >> TC-17B Injector #1 Control Circuit

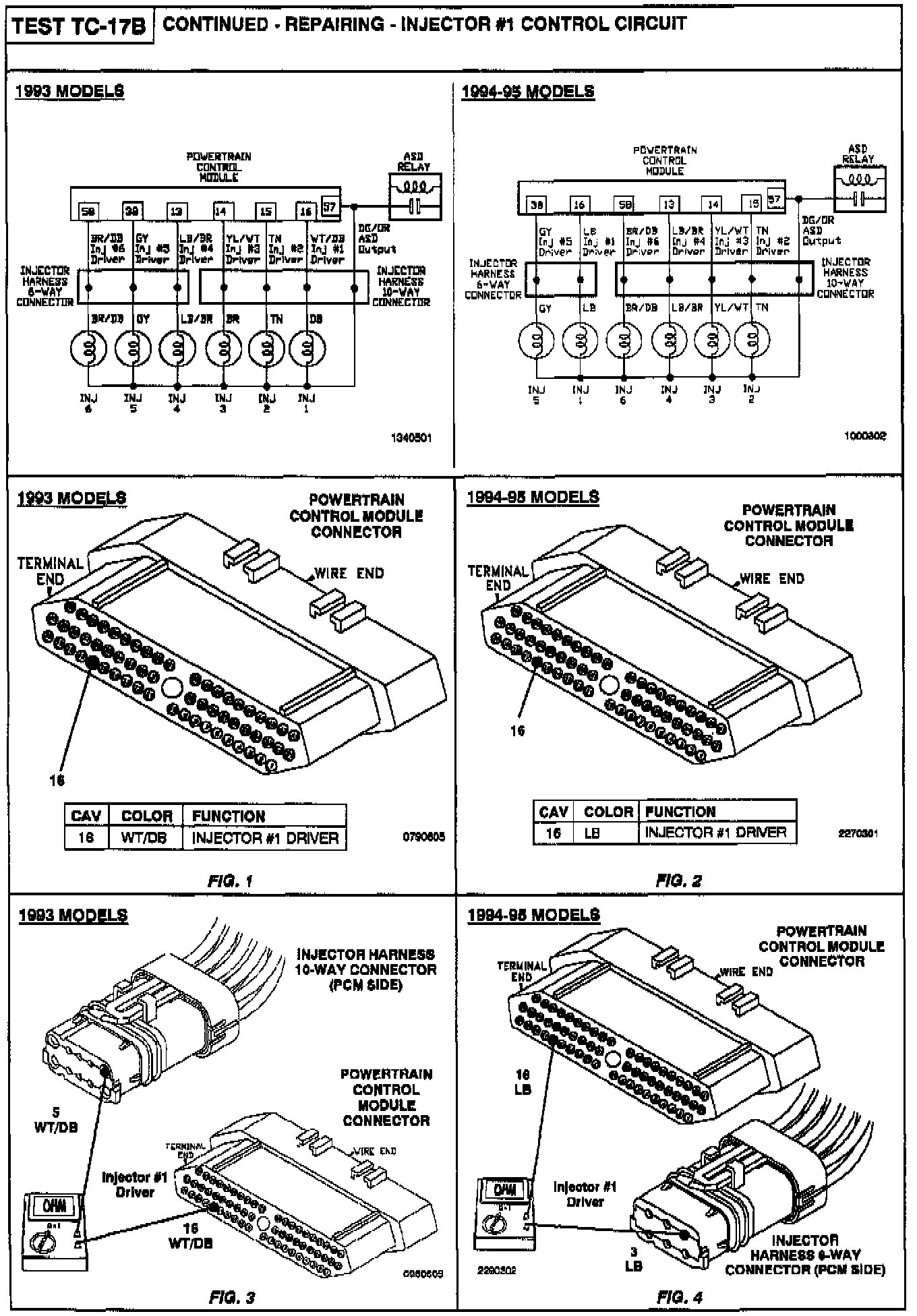

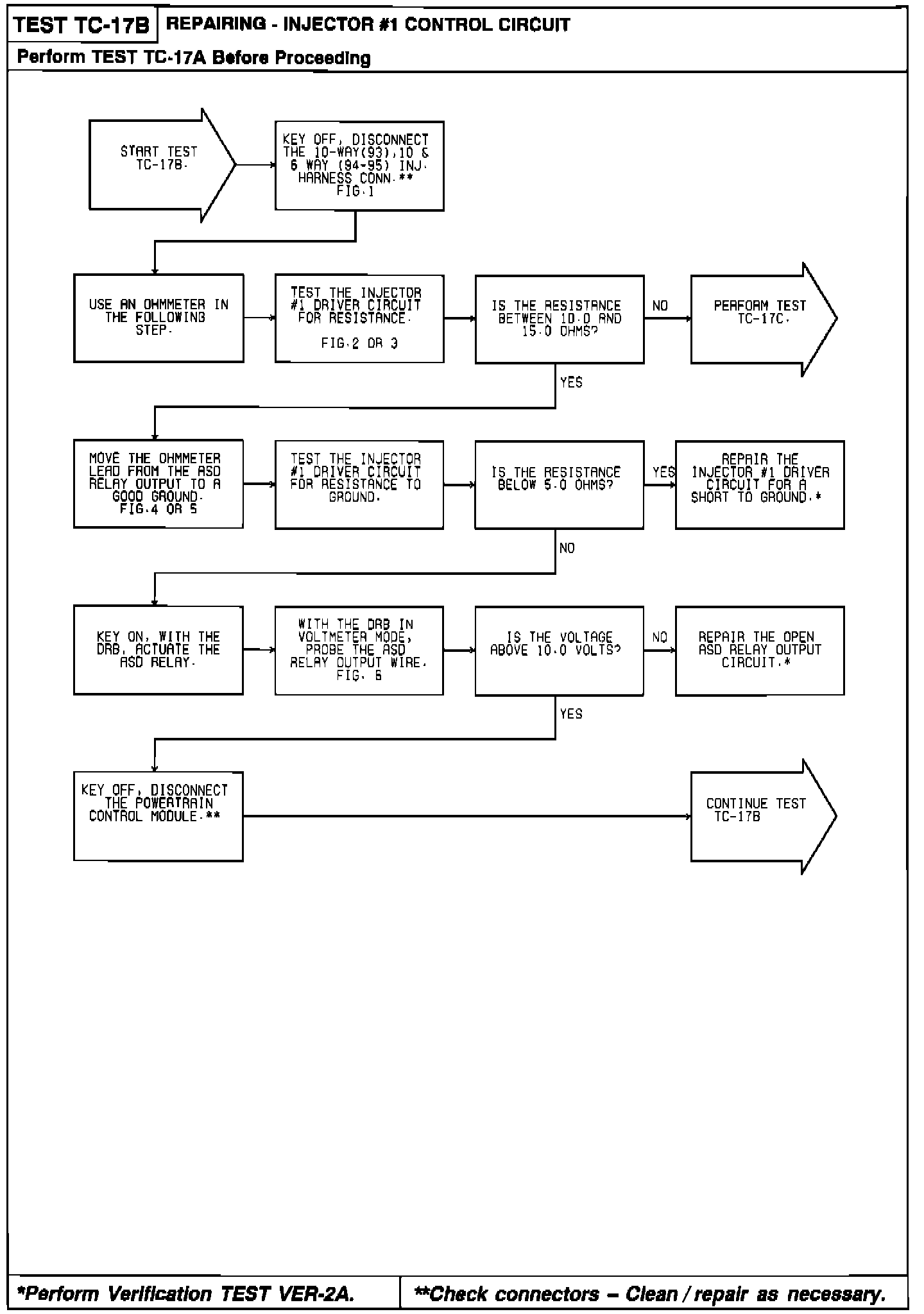

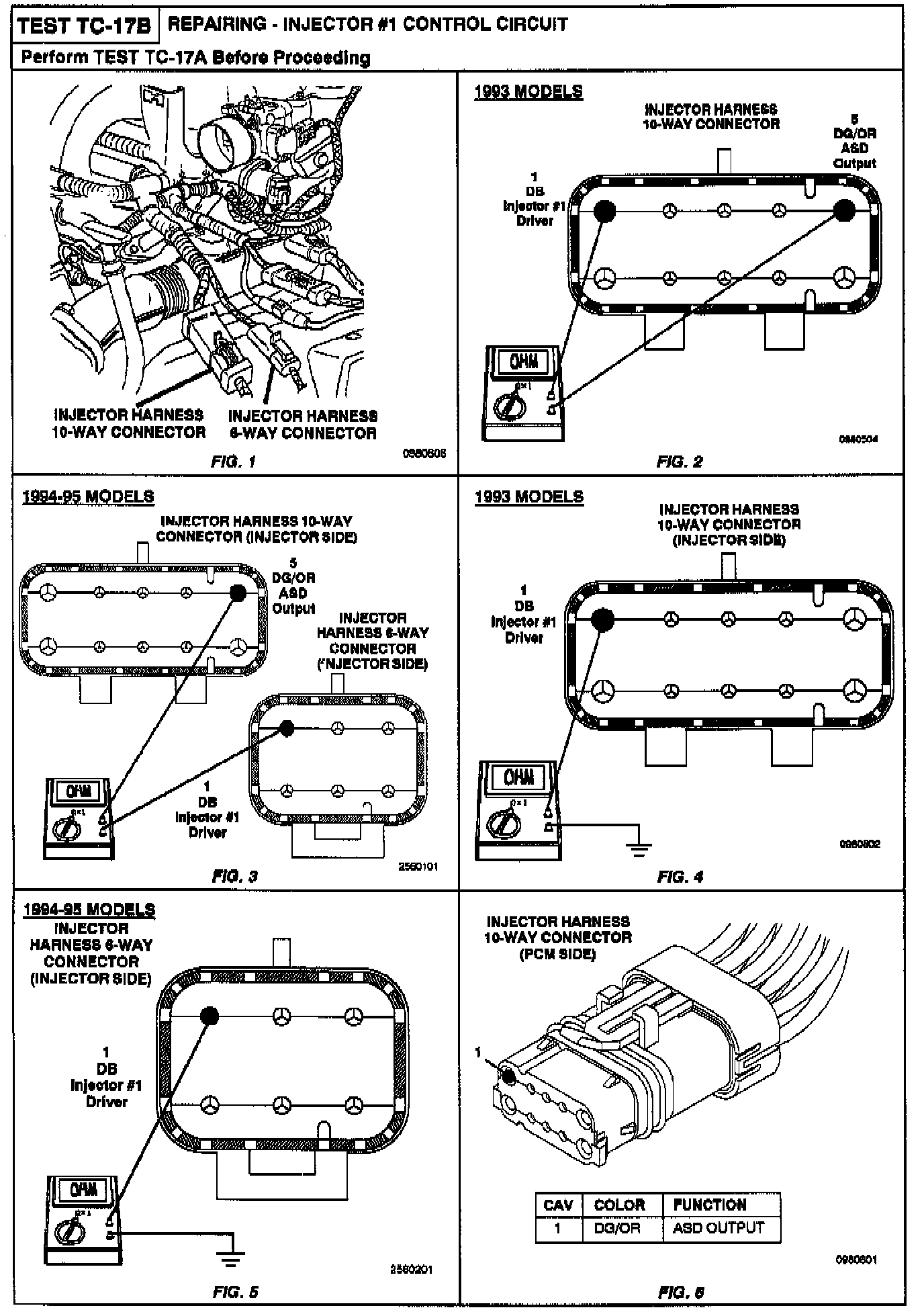

TC-17B Injector #1 Control Circuit
