Home >> Dodge or Ram Truck >> 1993 >> Caravan AWD V6-201 3.3L >> Repair and Diagnosis >> A L L Diagnostic Trouble Codes ( DTC ) >> Testing and Inspection >> Manufacturer Code Charts >> Speed Control (SP) Tests >> SP-7B Speed Control Set Switch Circuit Test

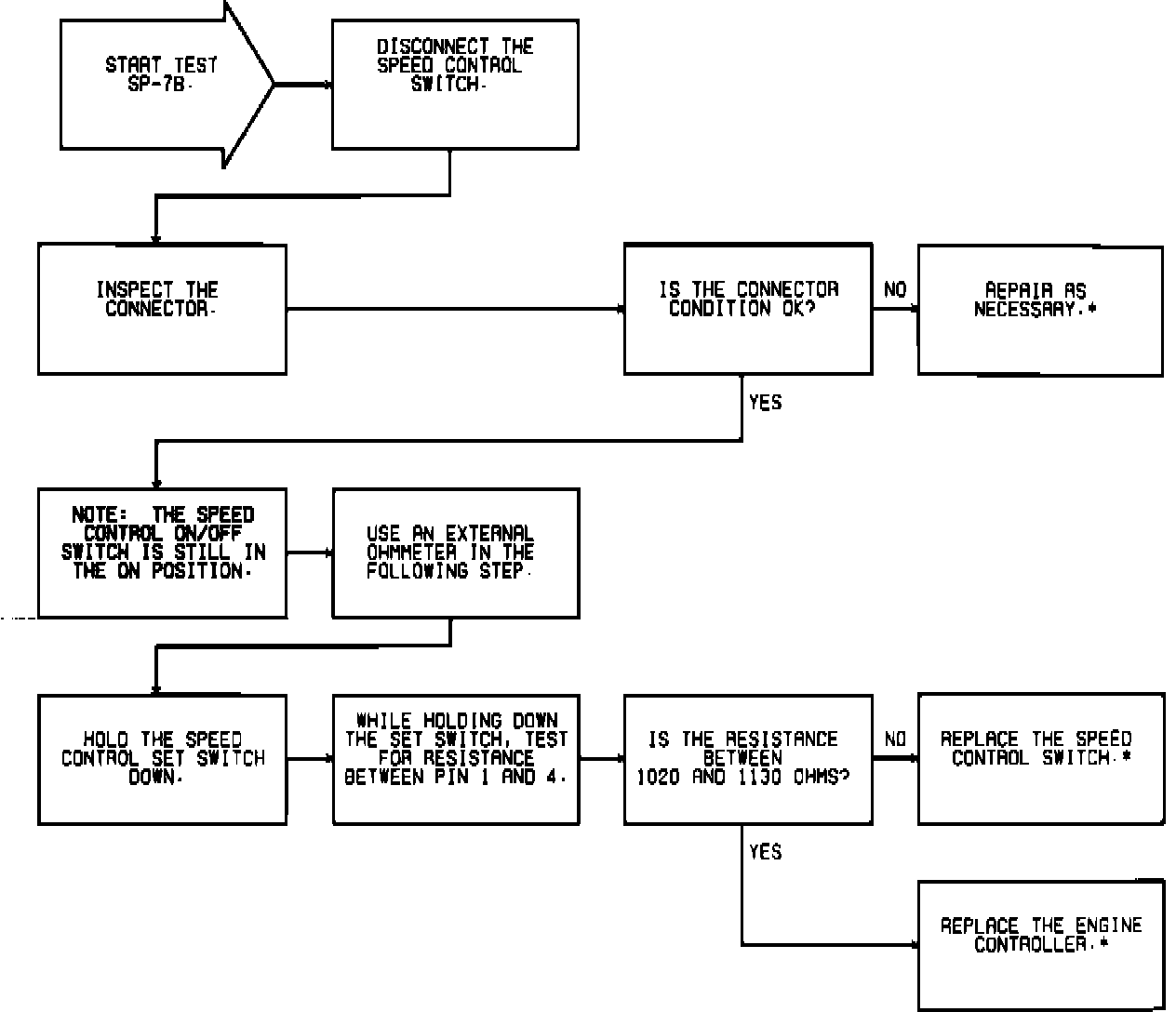

SP-7B Speed Control Set Switch Circuit Test

Test SP-7B, checking speed control set switch circuit:
