Home >> Dodge or Ram Truck >> 1993 >> Caravan AWD V6-201 3.3L >> Repair and Diagnosis >> A L L Diagnostic Trouble Codes ( DTC ) >> Testing and Inspection >> Manufacturer Code Charts >> Speed Control (SP) Tests >> SP-6B Speed Control Resume Switch Test

SP-6B Speed Control Resume Switch Test

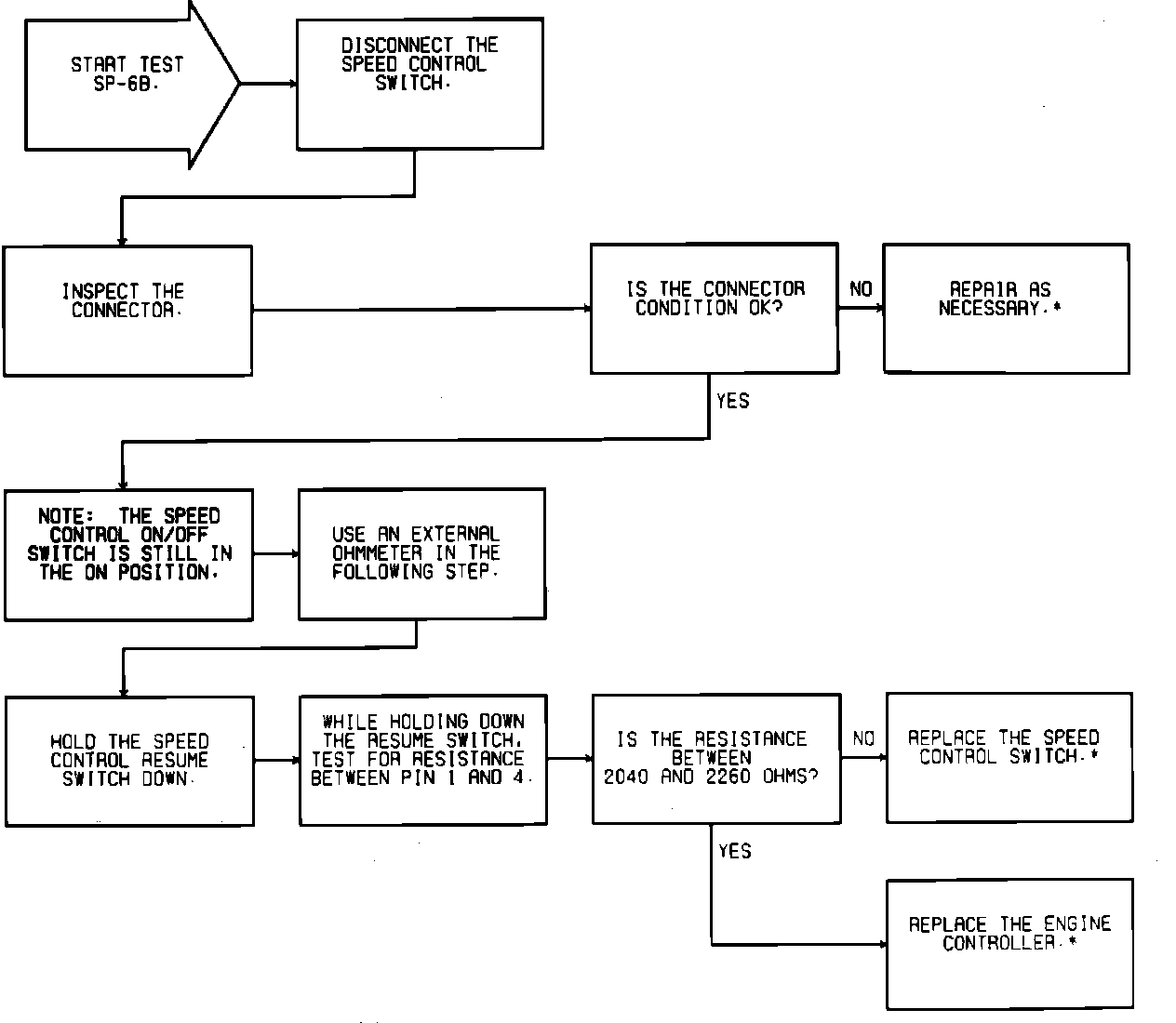

Test SP-6B, checking speed control resume switch circuit:
