SP-6A Speed Control Resume Switch Test

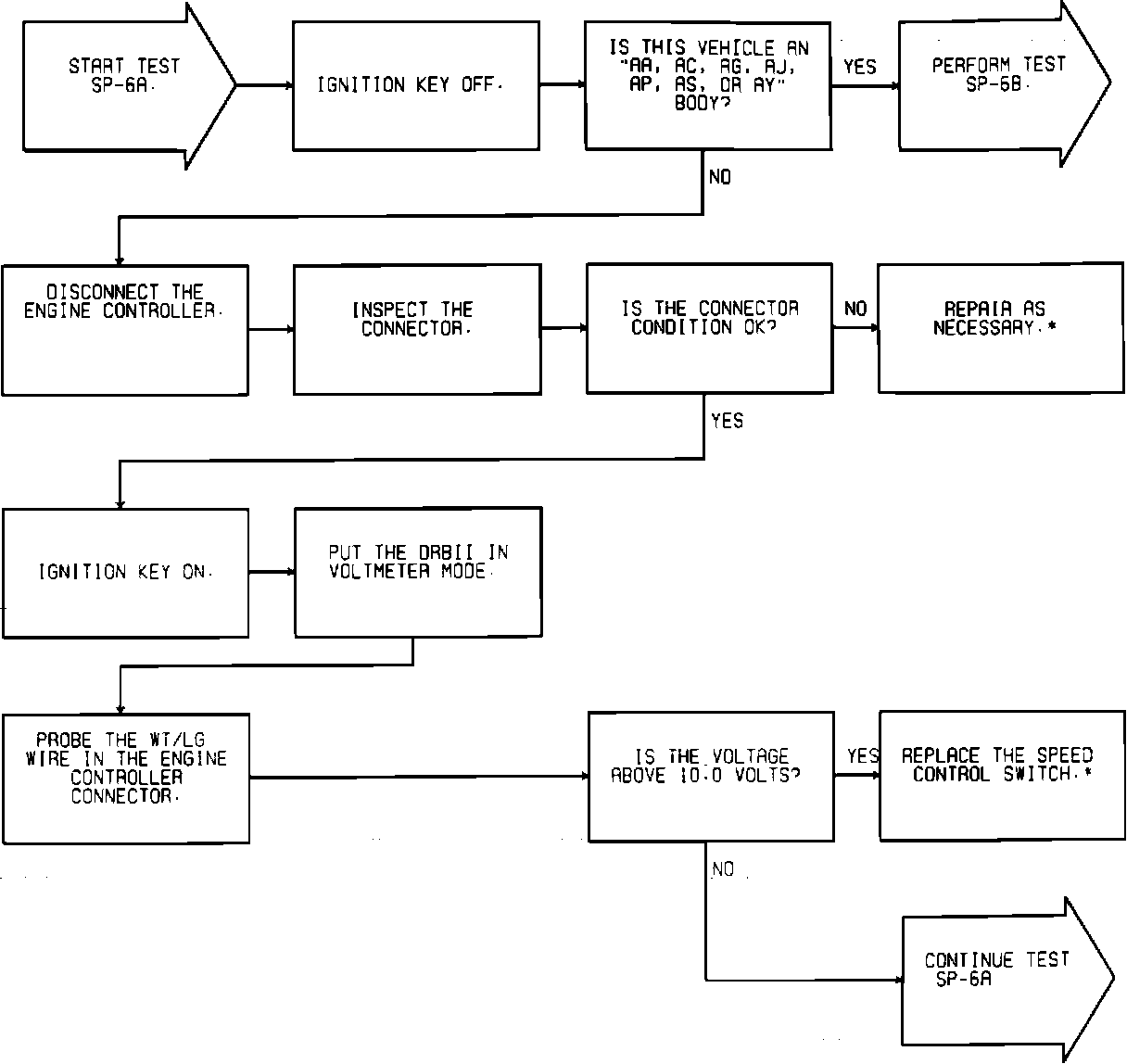

Test SP-6A, checking speed control resume switch circuit (Part 1 of 3):

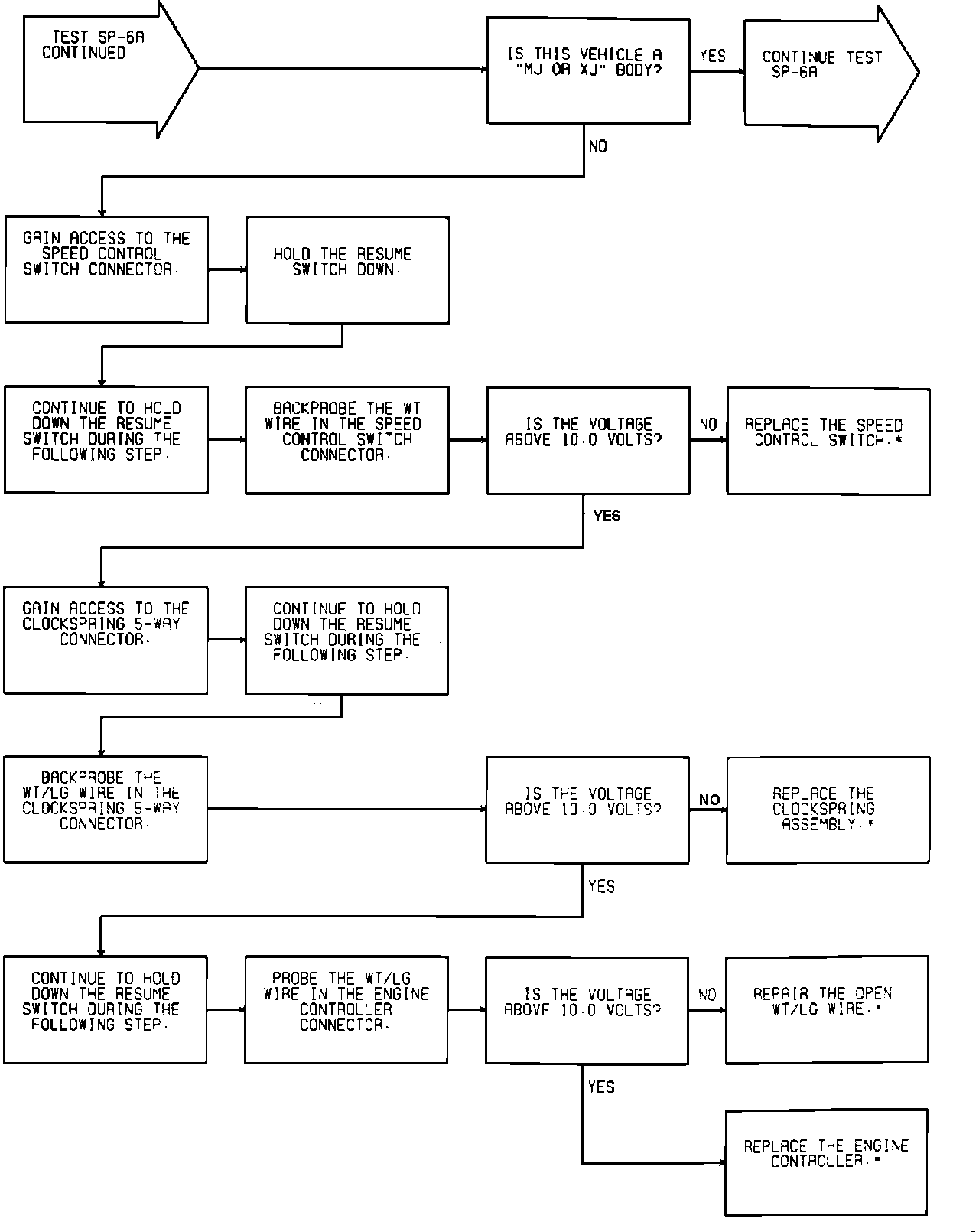

Test SP-6A, checking speed control resume switch circuit (Part 2 of 3):

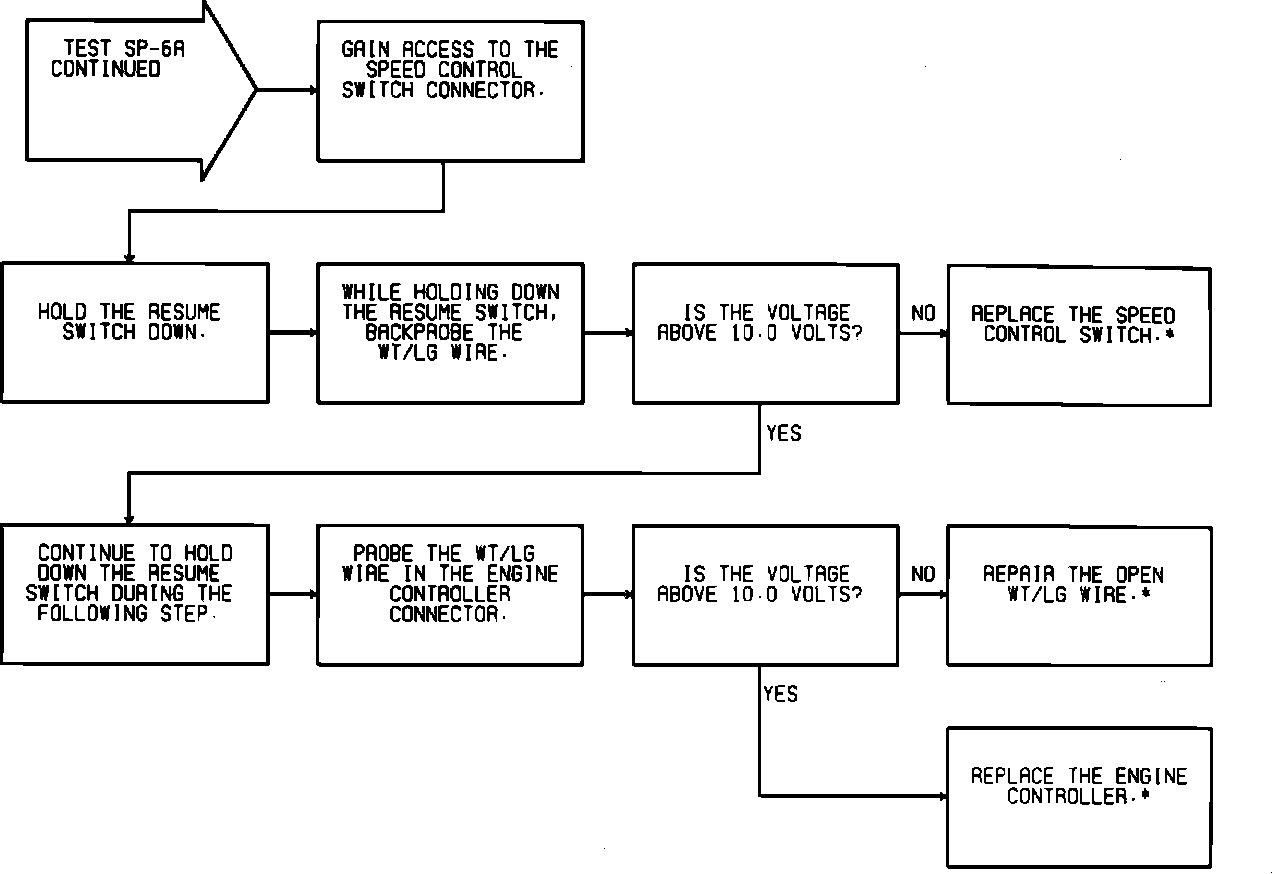

Test SP-6A, checking speed control resume switch circuit (Part 3 of 3):
