A L L Diagnostic Trouble Codes ( DTC )
>>
Testing and Inspection
>>
Manufacturer Code Charts
>>
Speed Control (SP) Tests
>>
SP-5D Switch Circuit Open Test
SP-5D Switch Circuit Open Test

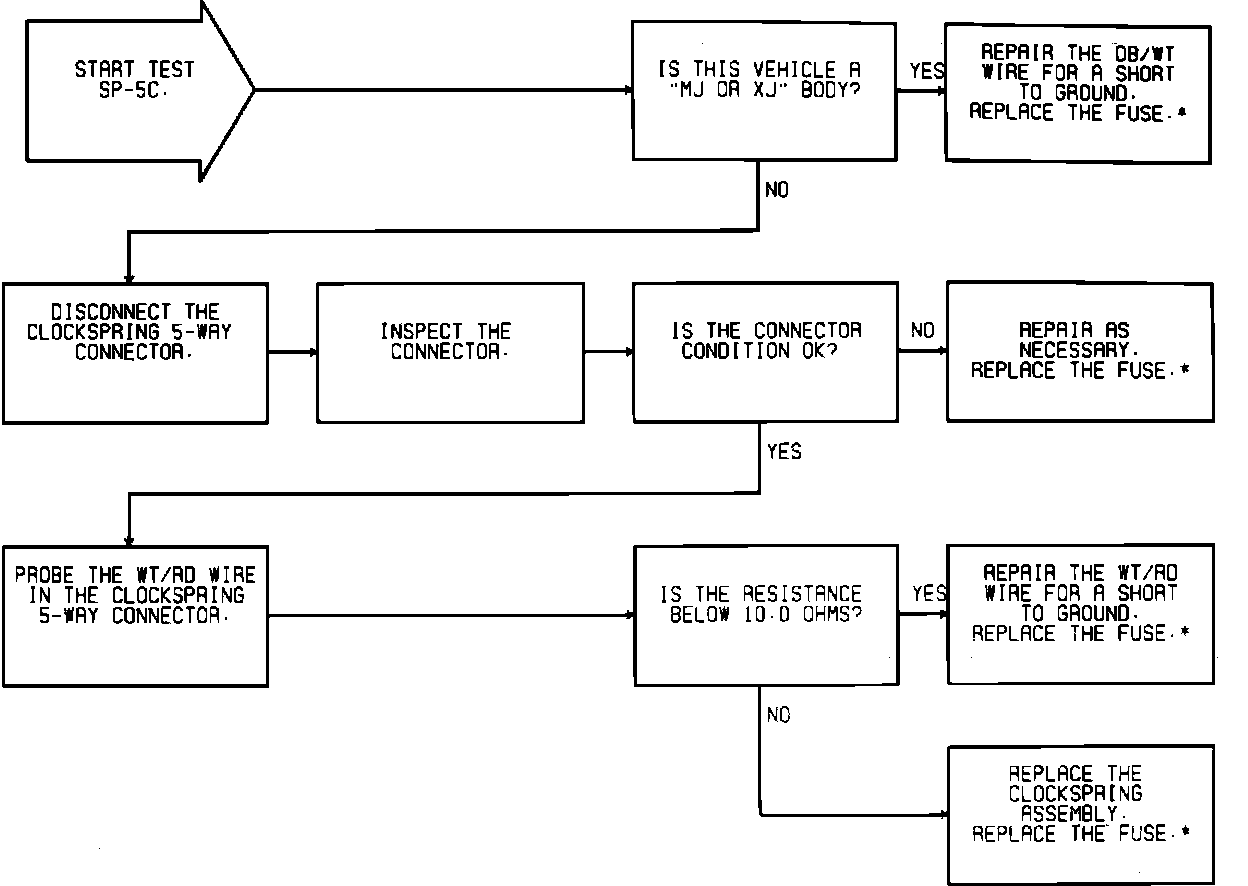

Test SP-5C, checking switch wiring for a short to ground:
