SP-5B Speed Control Switch Circuit Short Test

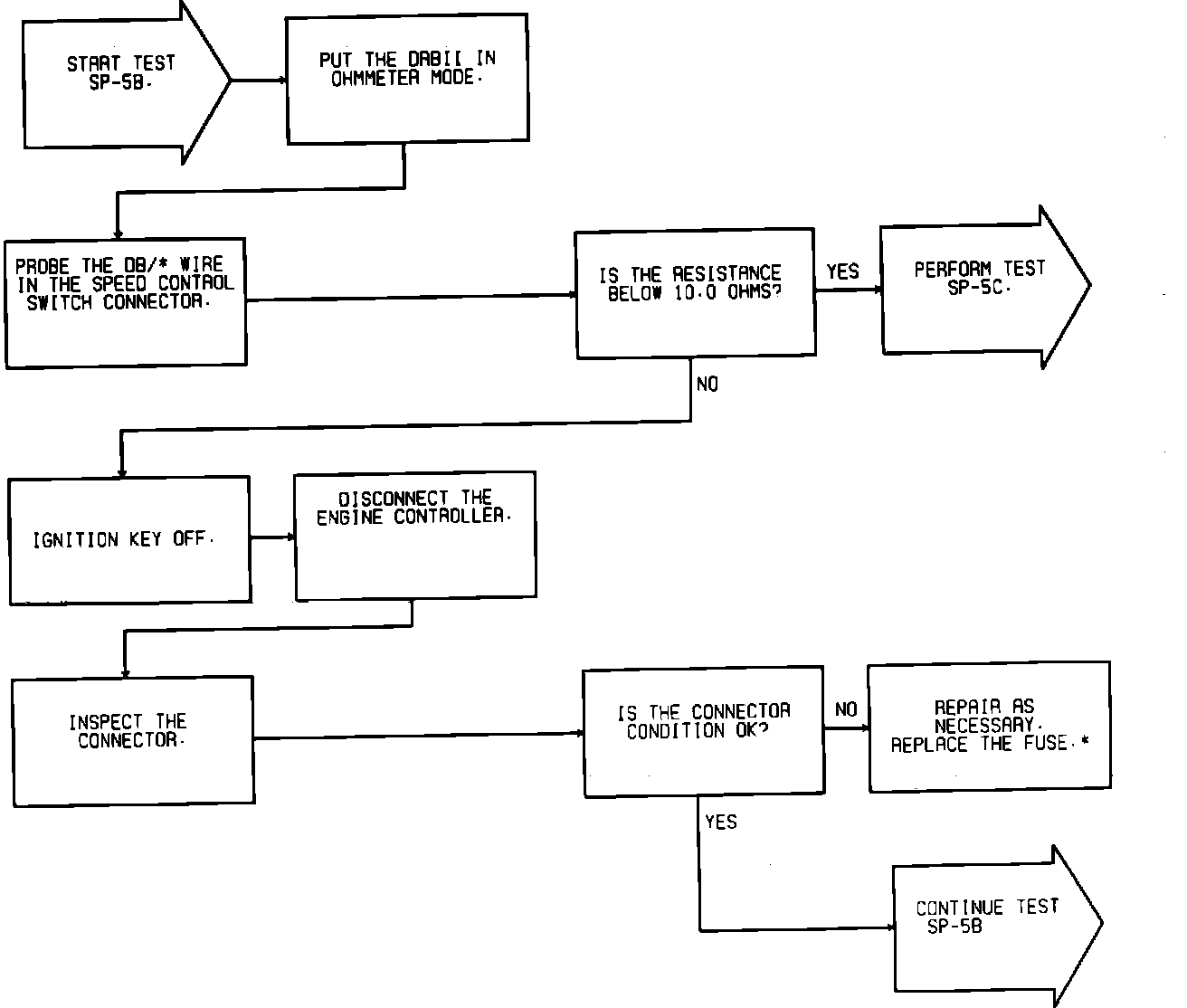

Test SP-5B, repairing speed control switch circuits for a short to ground (Part 1 of 3):

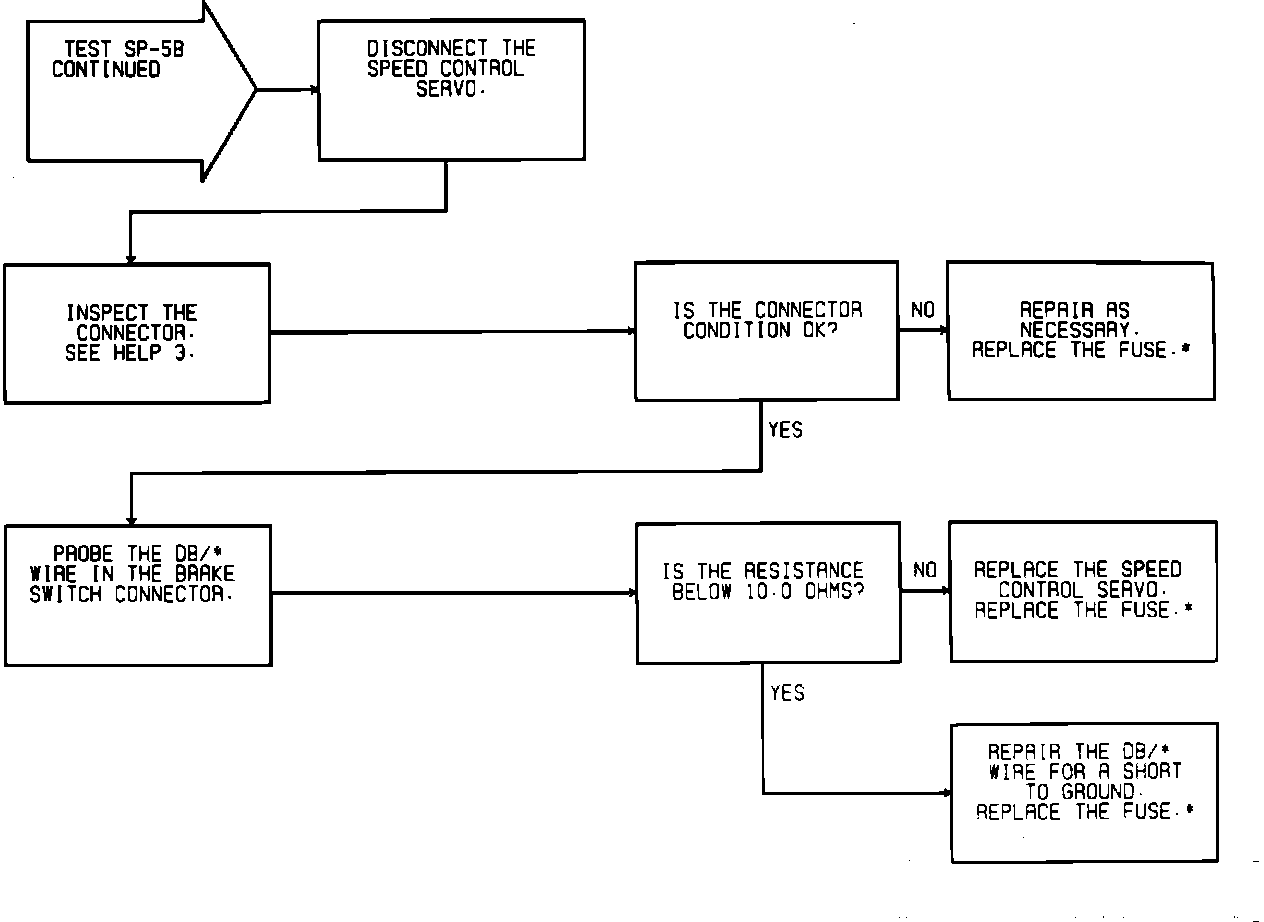

Test SP-5B, repairing speed control switch circuits for a short to ground (Part 2 of 3):

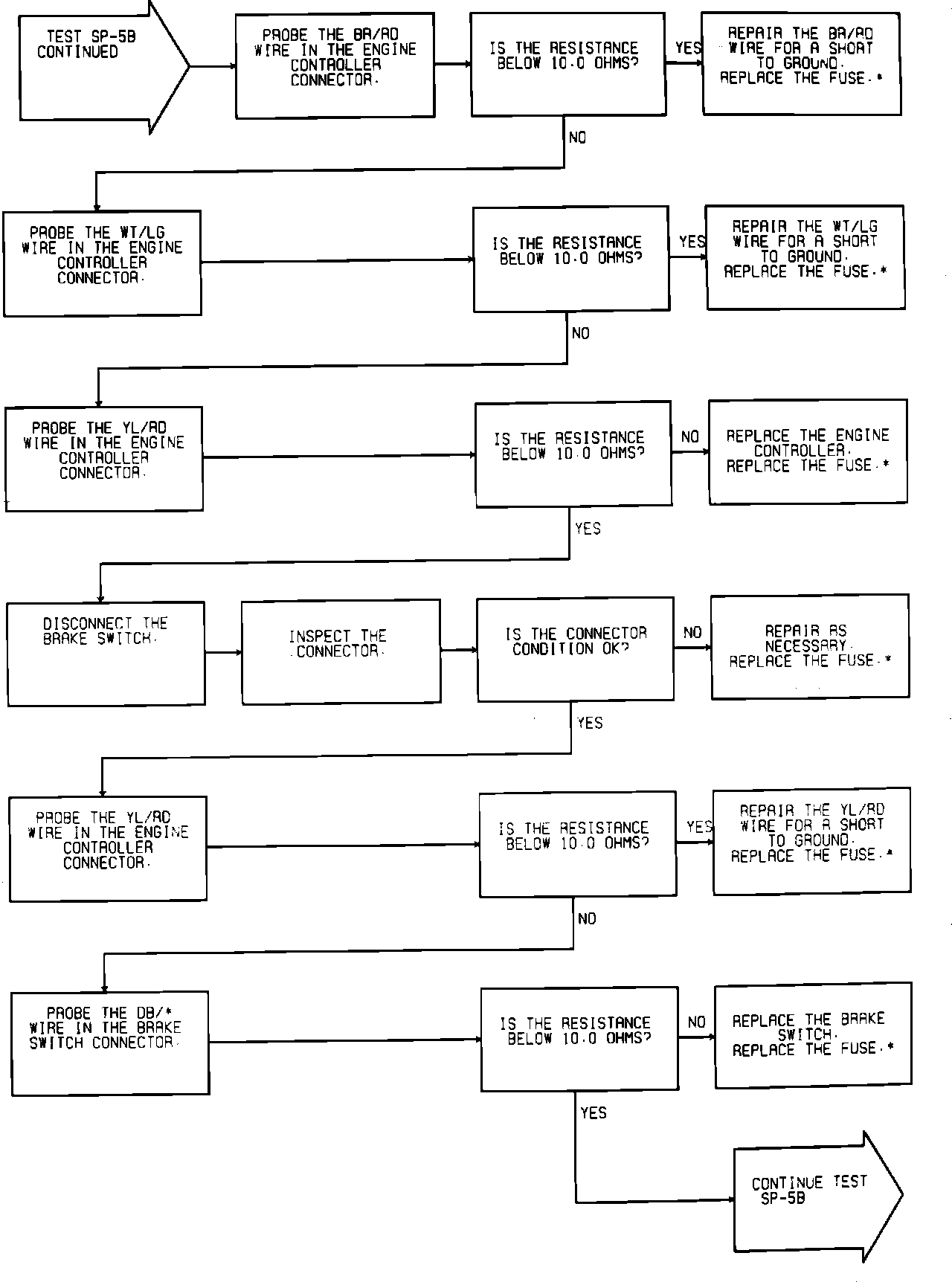

Test SP-5B, repairing speed control switch circuits for a short to ground (Part 3 of 3):
