SP-2C Speed Control Vent Solenoid Circuit Test

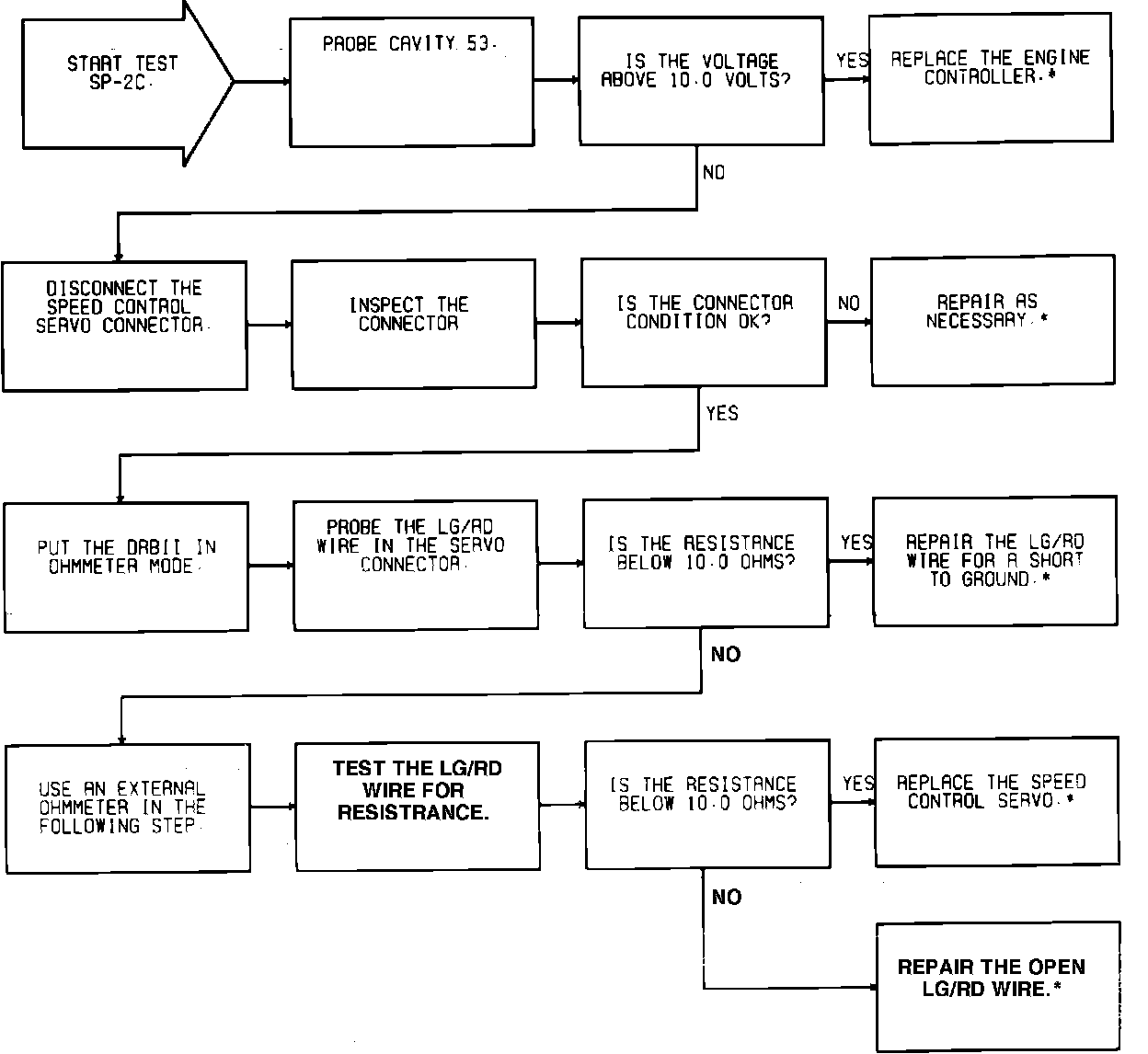

Test SP-2C, Repairing Speed Control Vent Solenoid Control Circuit:
