Home >> Dodge or Ram Truck >> 1993 >> Caravan AWD V6-201 3.3L >> Repair and Diagnosis >> A L L Diagnostic Trouble Codes ( DTC ) >> Testing and Inspection >> Manufacturer Code Charts >> Speed Control (SP) Tests >> SP-2B Speed Control Vacuum Solenoid Control Test

SP-2B Speed Control Vacuum Solenoid Control Test

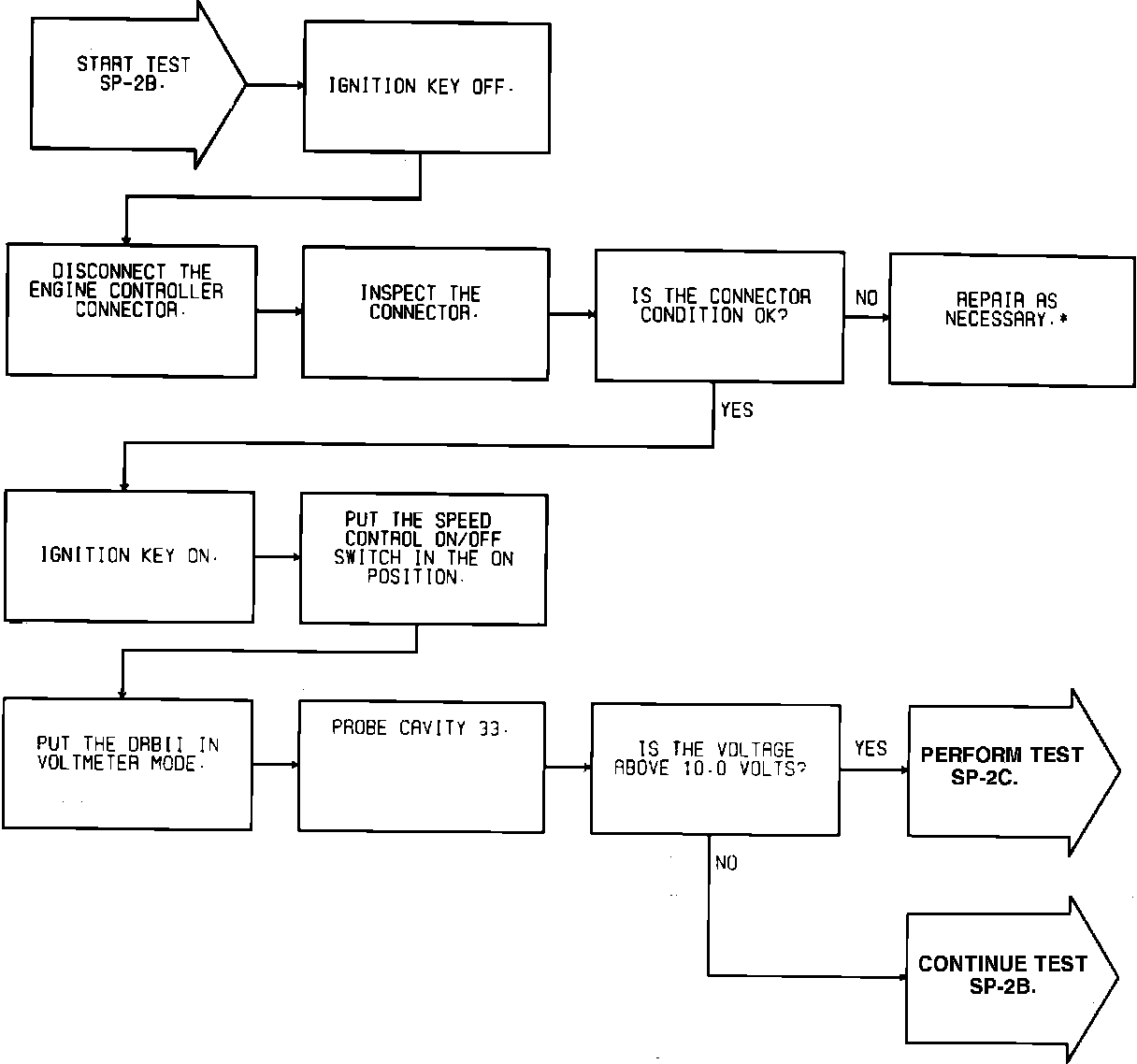

Test SP-2B, repairing speed control vacuum solenoid control circuit (Part 1 of 2):

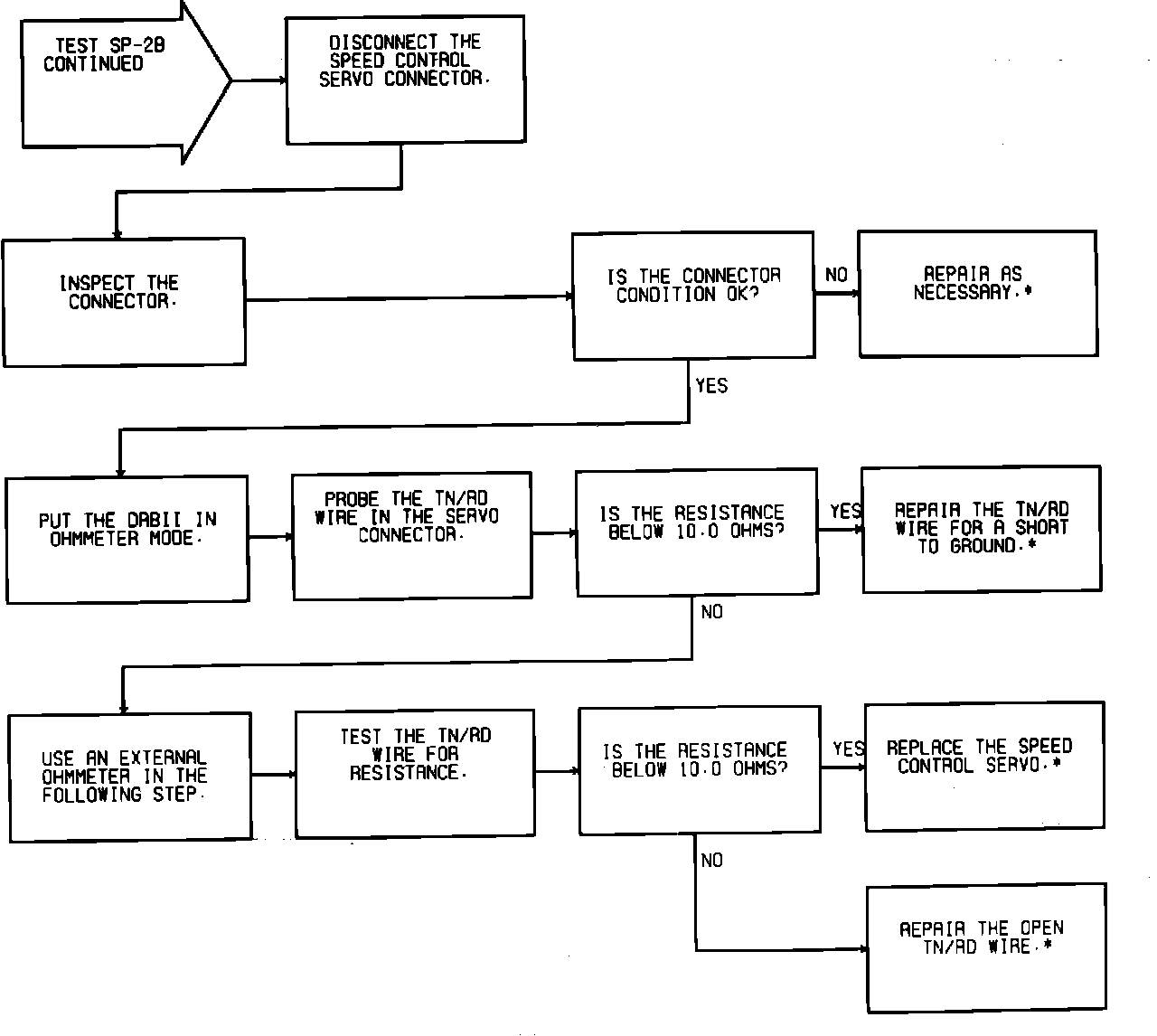

Test SP-2B, repairing speed control vacuum solenoid control circuit (Part 2 of 2):
