SP-2A Servo Power/ Ground Open Circuit Test

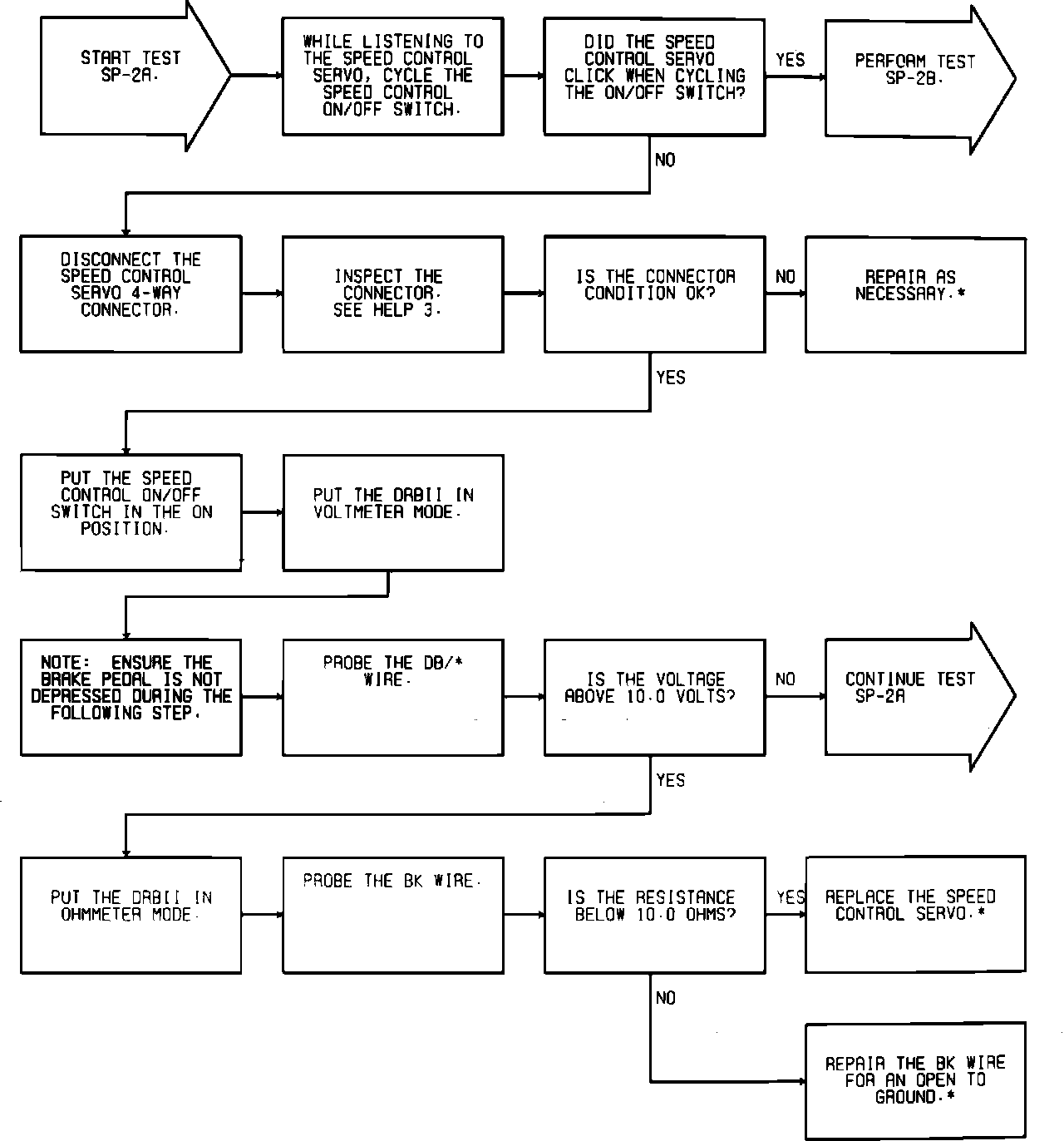

Fig. 45 Test SP-2A, repairing power & ground supply for open to servo solenoids (Part 1 of 2).:

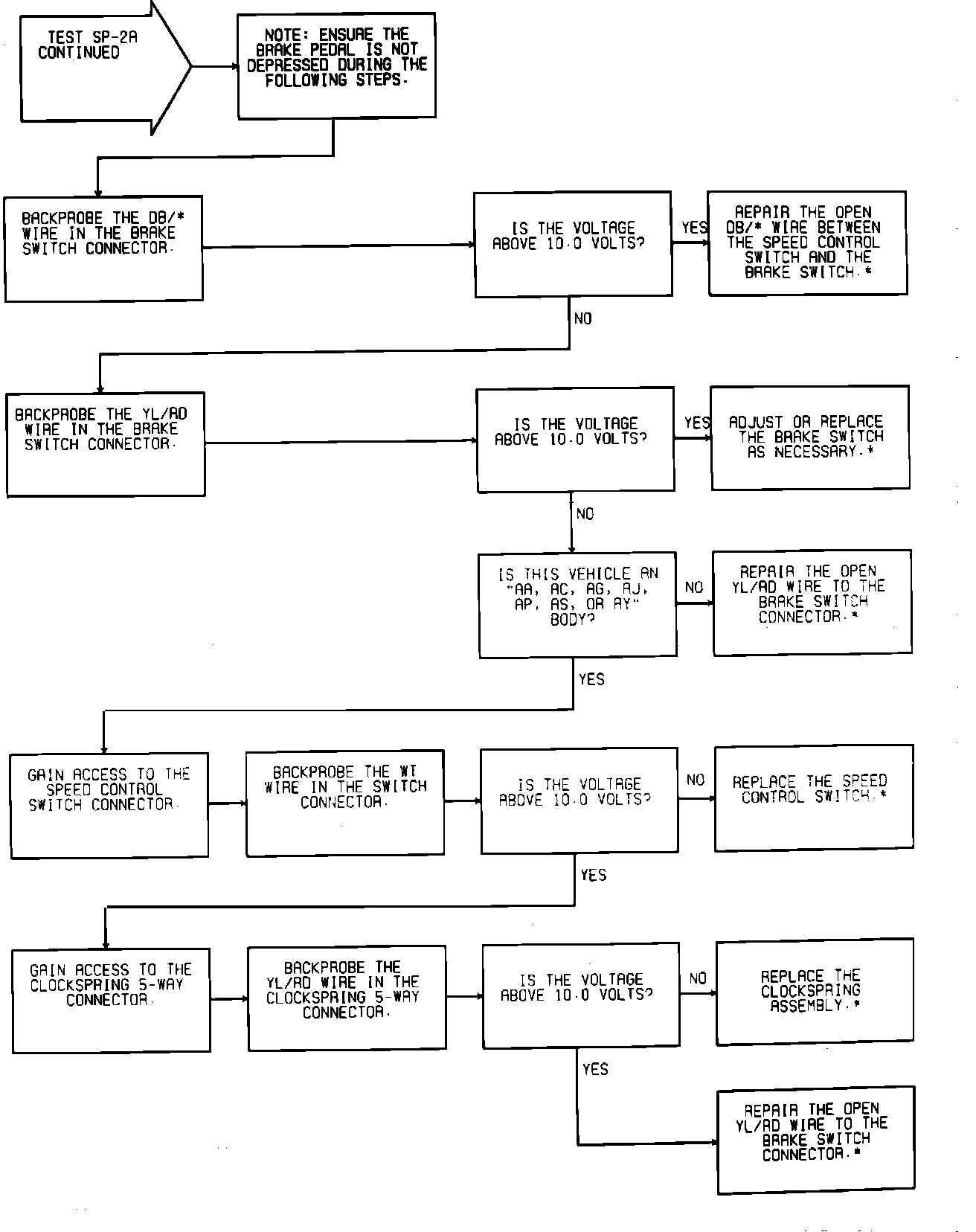

Test SP-2A, repairing power & ground supply for open to servo solenoids (Part 2 of 2):
