Home >> Dodge or Ram Truck >> 1993 >> Caravan AWD V6-201 3.3L >> Repair and Diagnosis >> A L L Diagnostic Trouble Codes ( DTC ) >> Testing and Inspection >> Manufacturer Code Charts >> Speed Control (SP) Tests >> SP-12B Vacuum to Servo Test

SP-12B Vacuum to Servo Test

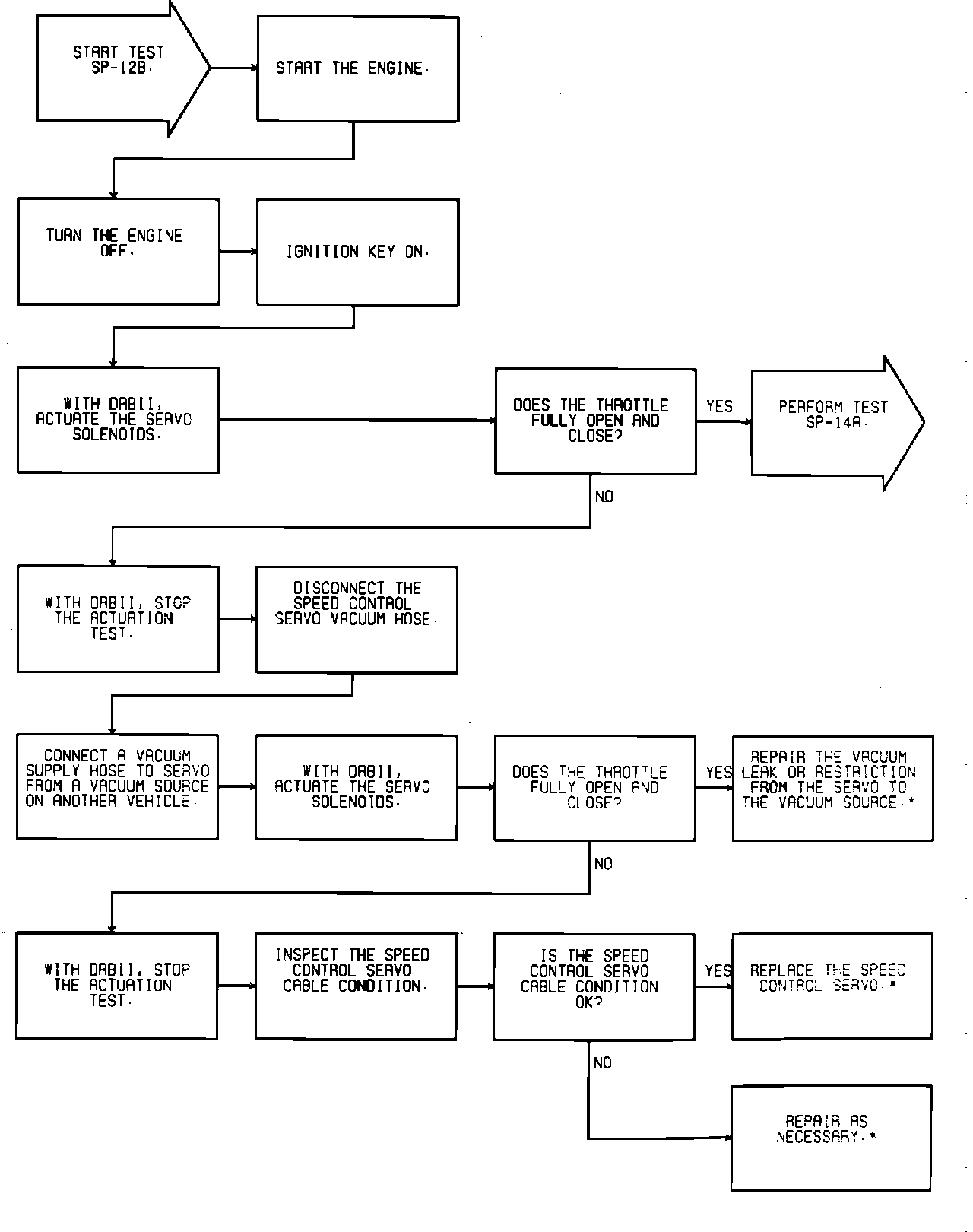

Test SP-12B, checking vacuum to speed control servo:
