SP-12A Speed Control Servo Operation Test
SP-12A Speed Control Servo Operation Test

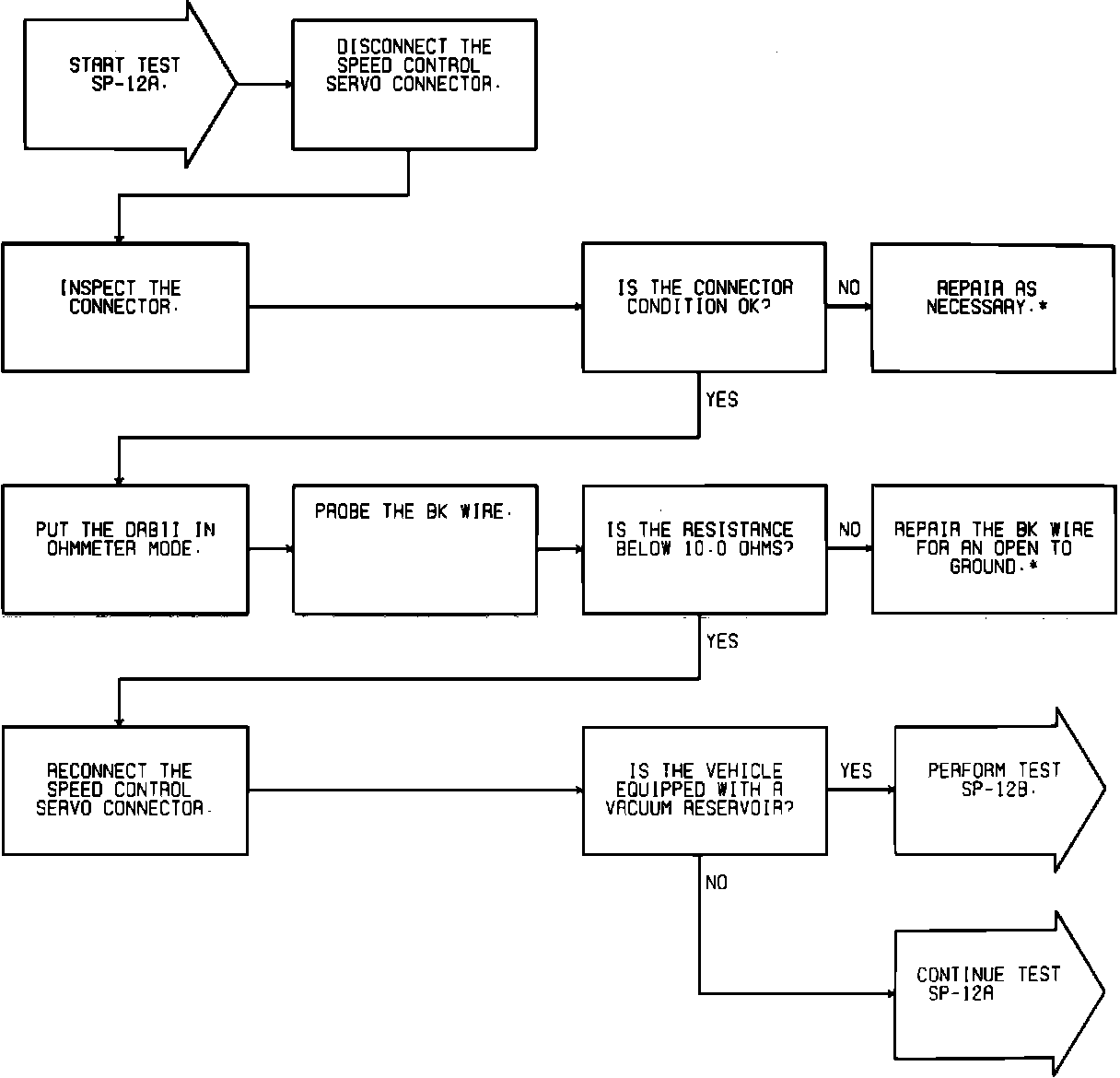

Test SP-12A, checking speed control servo operation (Part 1 of 2):

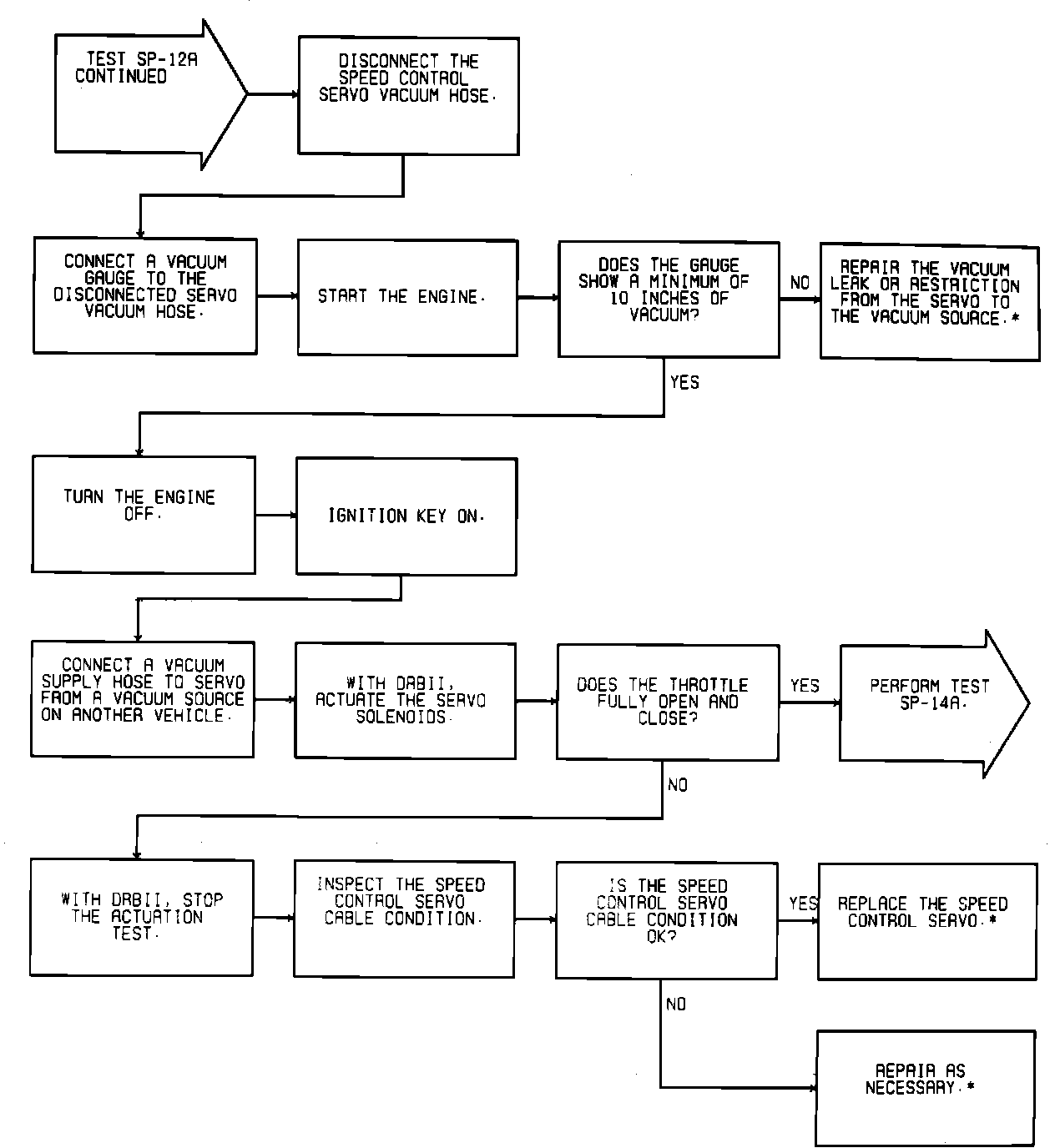

Test SP-12A, checking speed control servo operation (Part 2 of 2):
