SP-11B Brake Switch Circuit Short Test
SP-11B Brake Switch Circuit Short Test

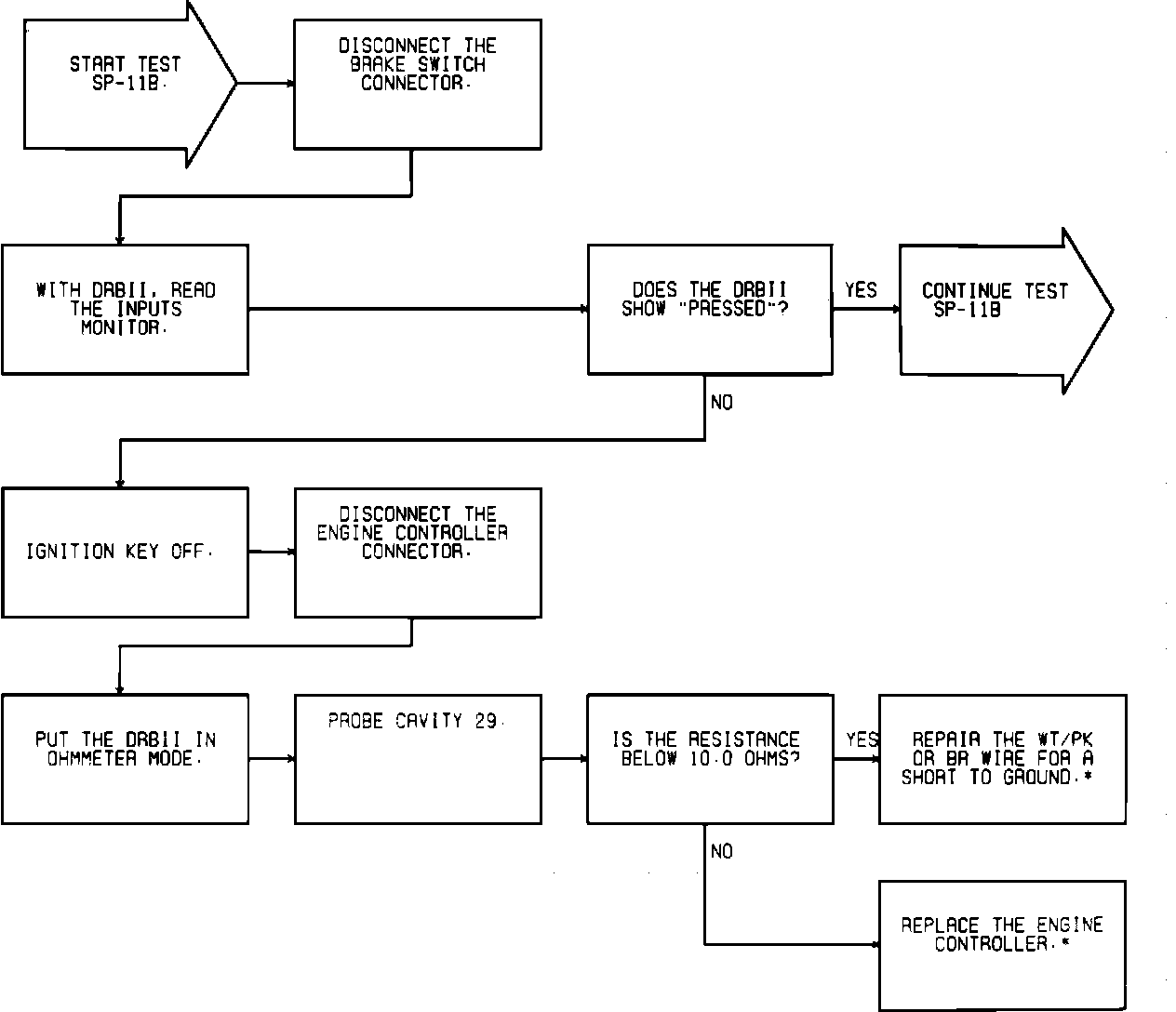

Test SP-11B, checking brake switch circuits for shorts (Part 1 of 2):

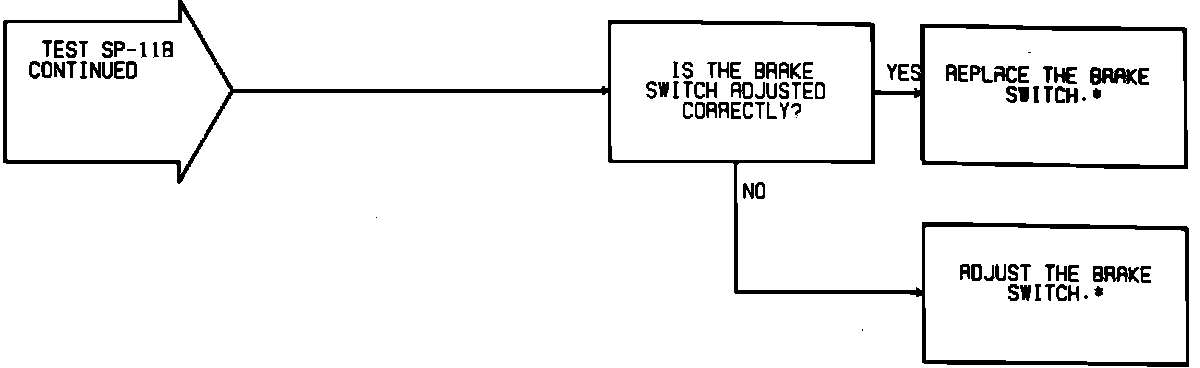

Test SP-11B, checking brake switch circuits for shorts (Part 2 of 2):
