SP-11A Brake Switch Circuit Open Test
SP-11A Brake Switch Circuit Open Test

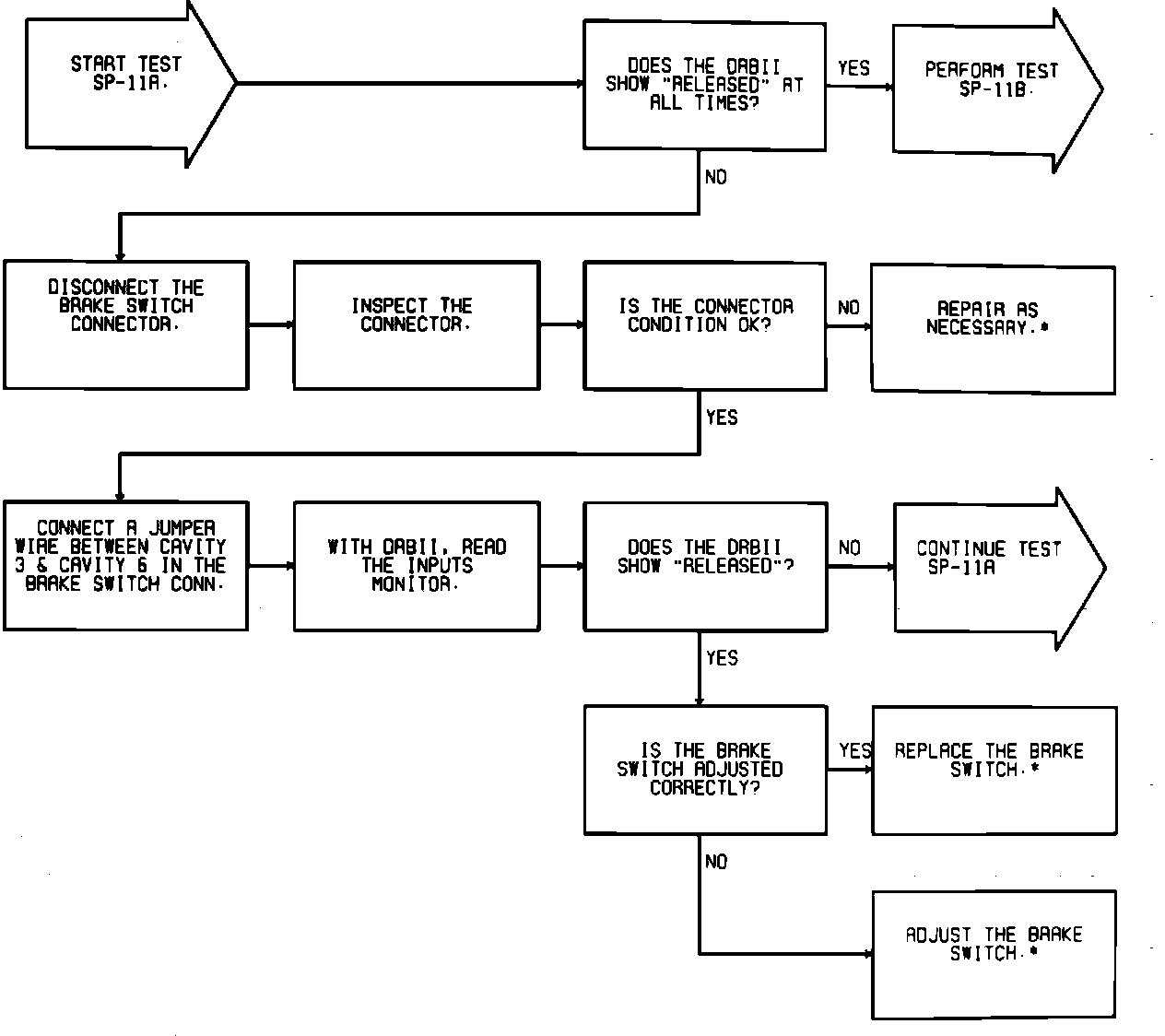

Test SP-11A, checking brake switch circuits for open (Part 1 of 2):

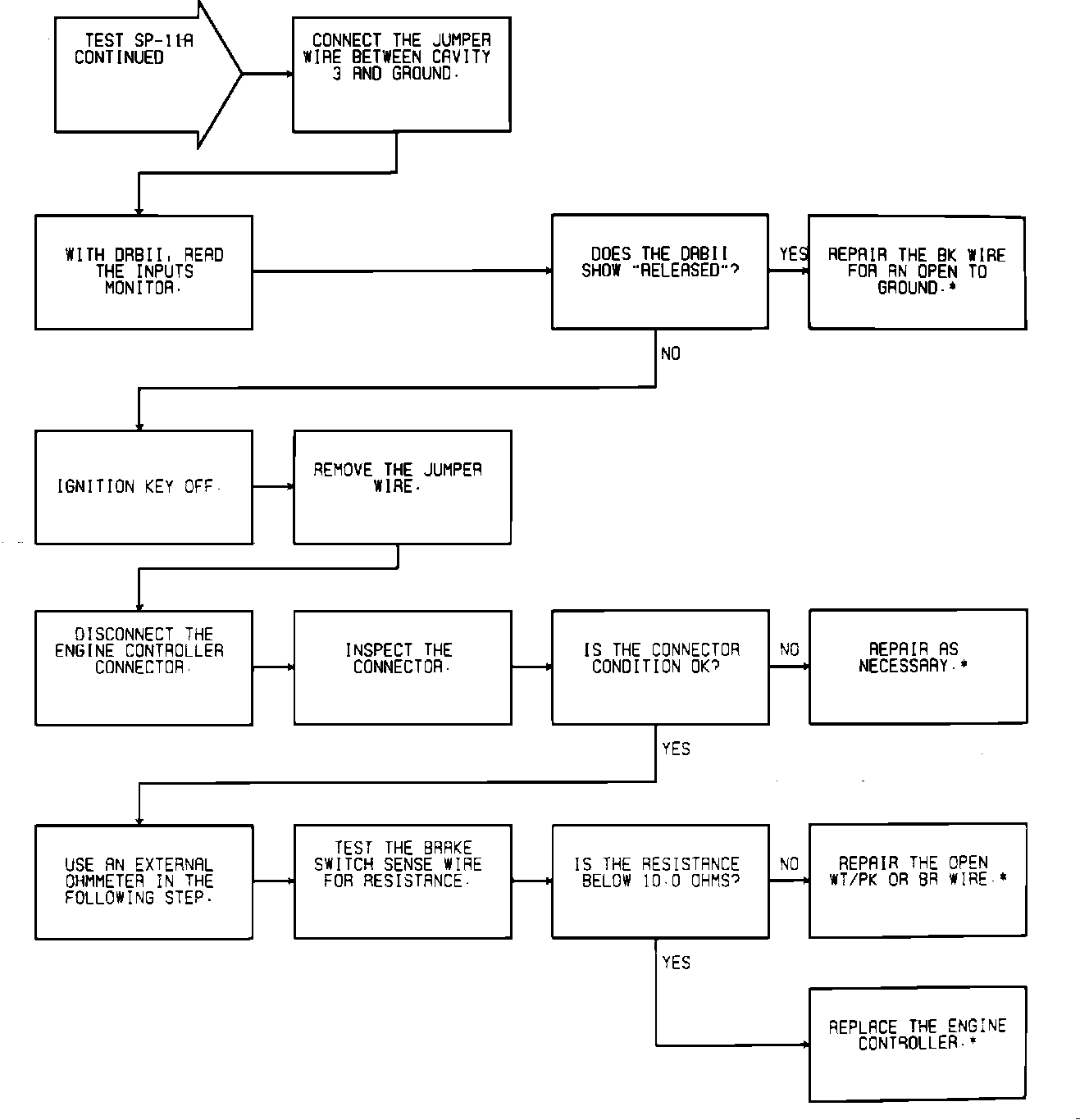

Test SP-11A, checking brake switch circuits for open (Part 2 of 2):
