SP-10A Speed Control Switch Circuit Short Test

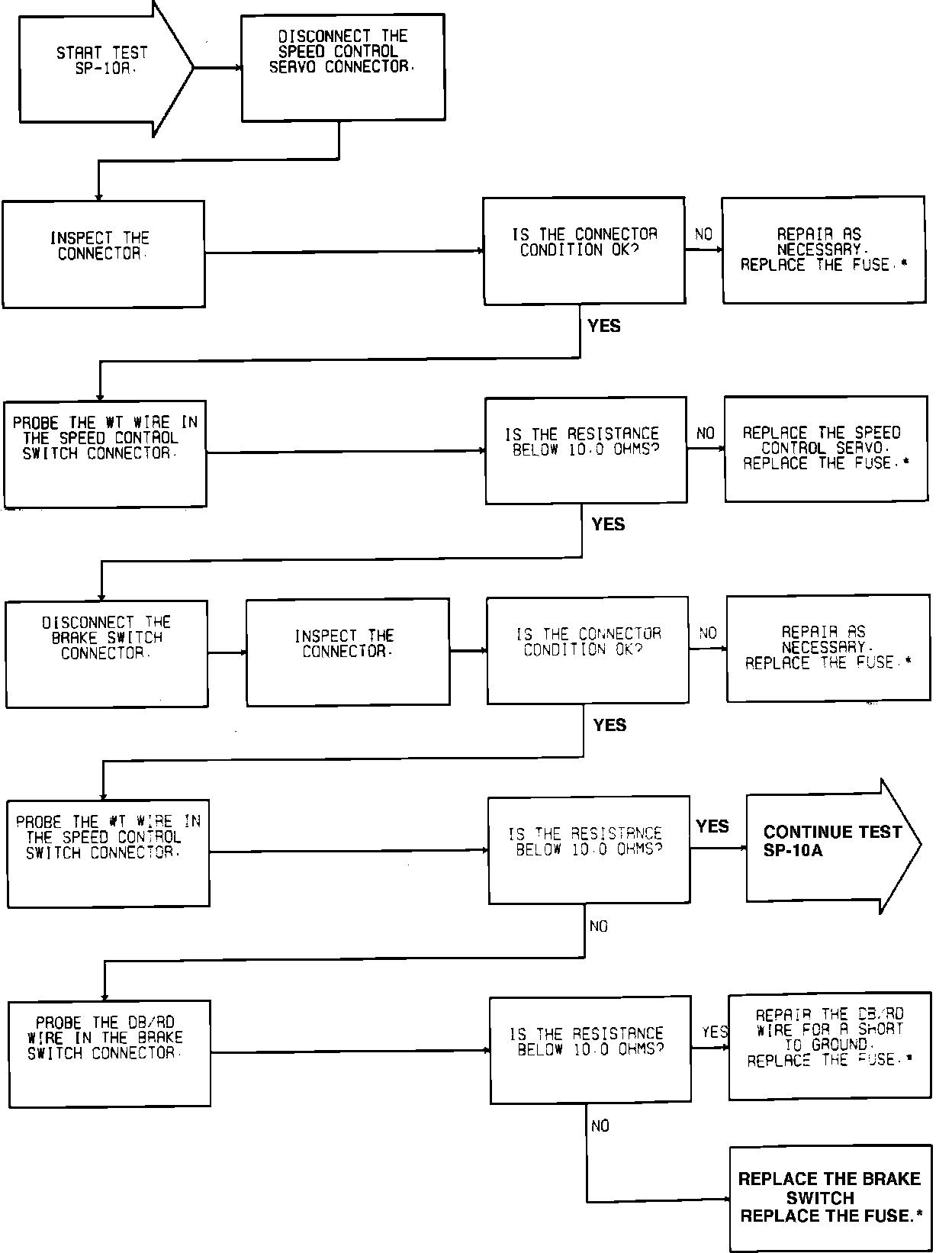

Test SP-10A, repairing speed control switch circuits for a short to ground (Part 1 of 2):



Test SP-10A, repairing speed control switch circuits for a short to ground (Part 2 of 2):
