Dodge or Ram Truck
>>
1993
>>
Caravan AWD V6-201 3.3L
>>
Repair and Diagnosis
>>
A L L Diagnostic Trouble Codes ( DTC )
>>
Testing and Inspection
>>
Manufacturer Code Charts
>>
Power Door Lock System
>>
With Remote Keyless Entry (RKE)
>>

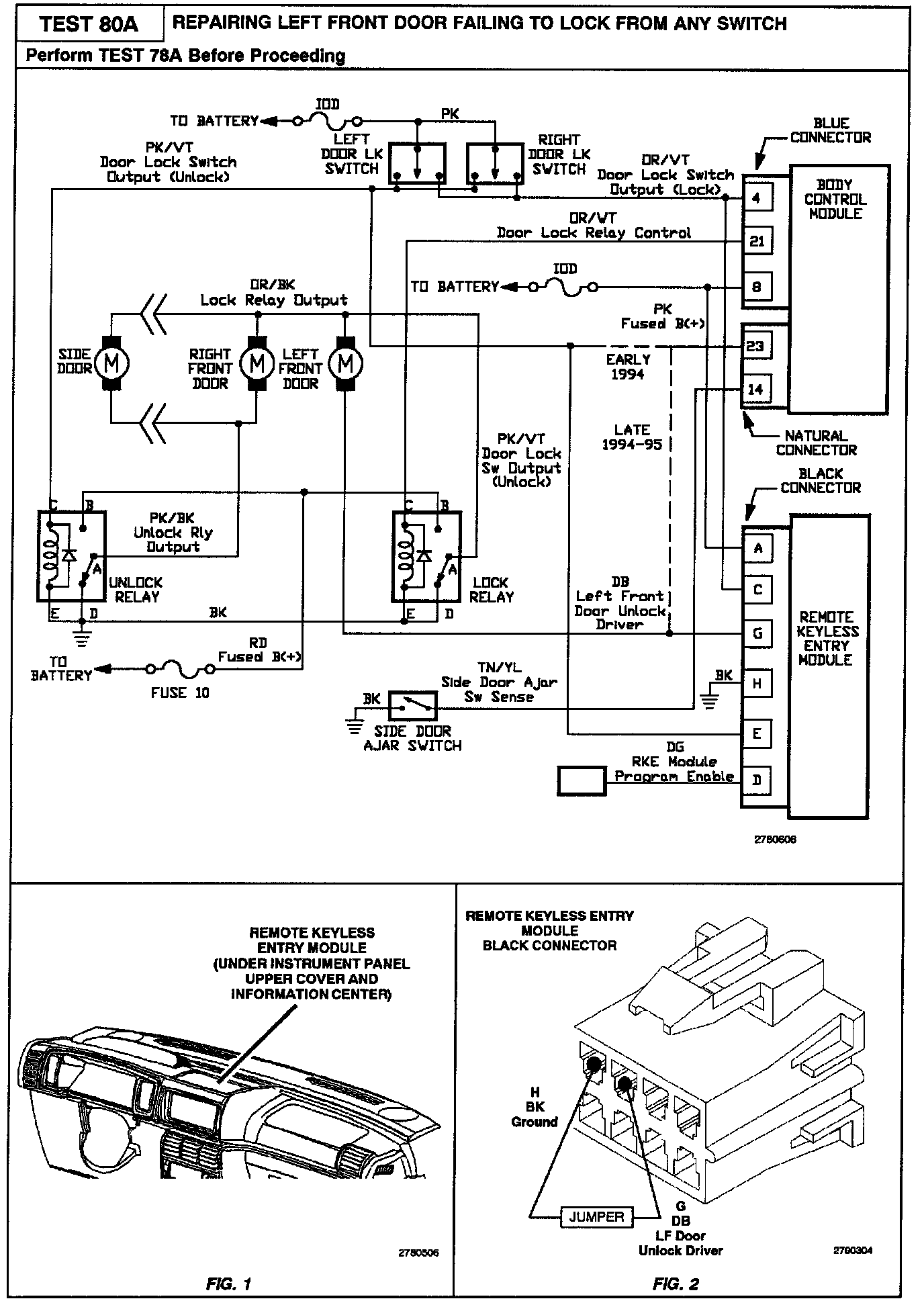

80A L/F Door Fails to Lock From Any Switch
80A L/F Door Fails to Lock From Any Switch

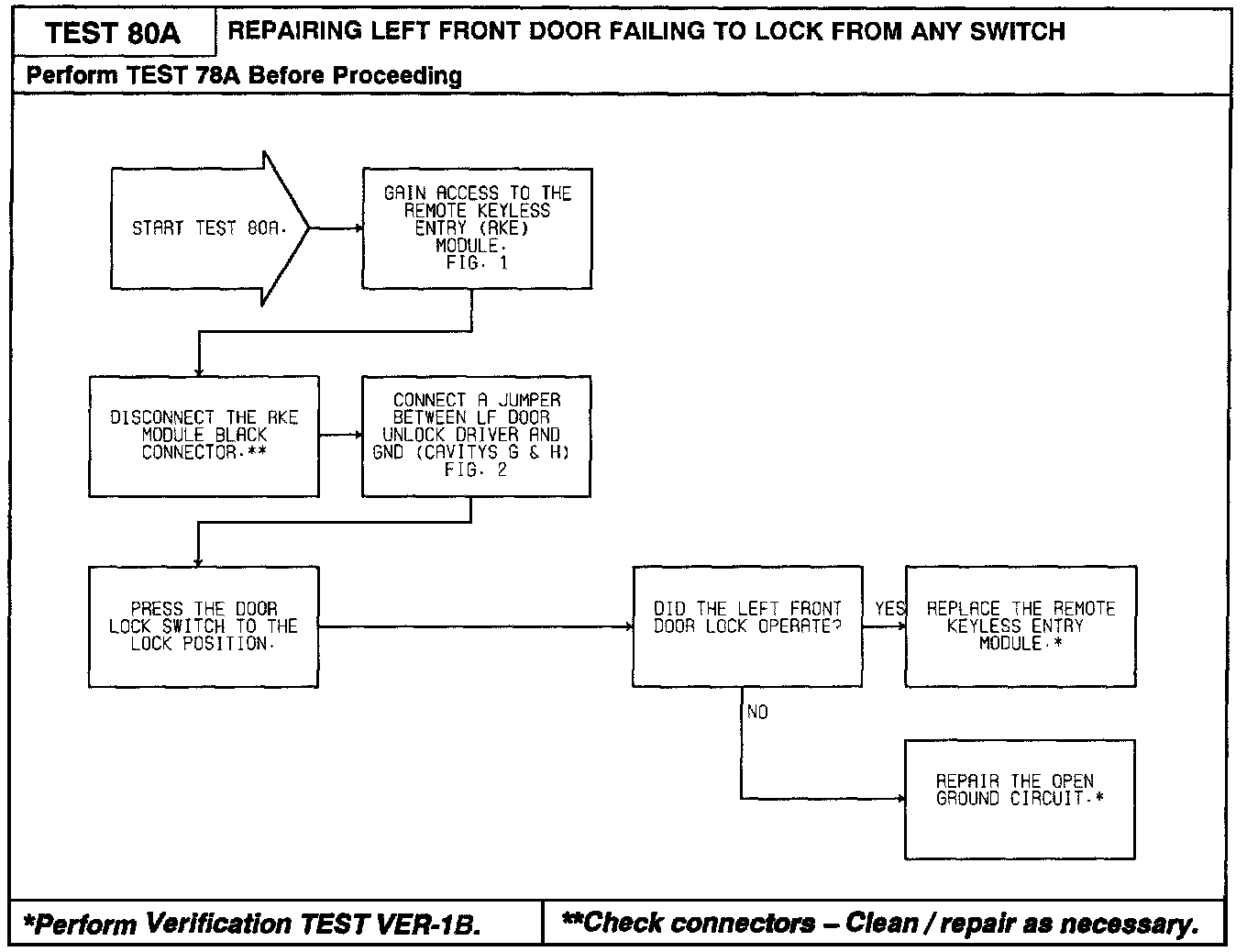

Diagnostic Chart:
Related Images:
